Automatic Transmission Shift Lock Schematics (Automatic Transaxle Fluid Pressure Manual Valve Position Switch)

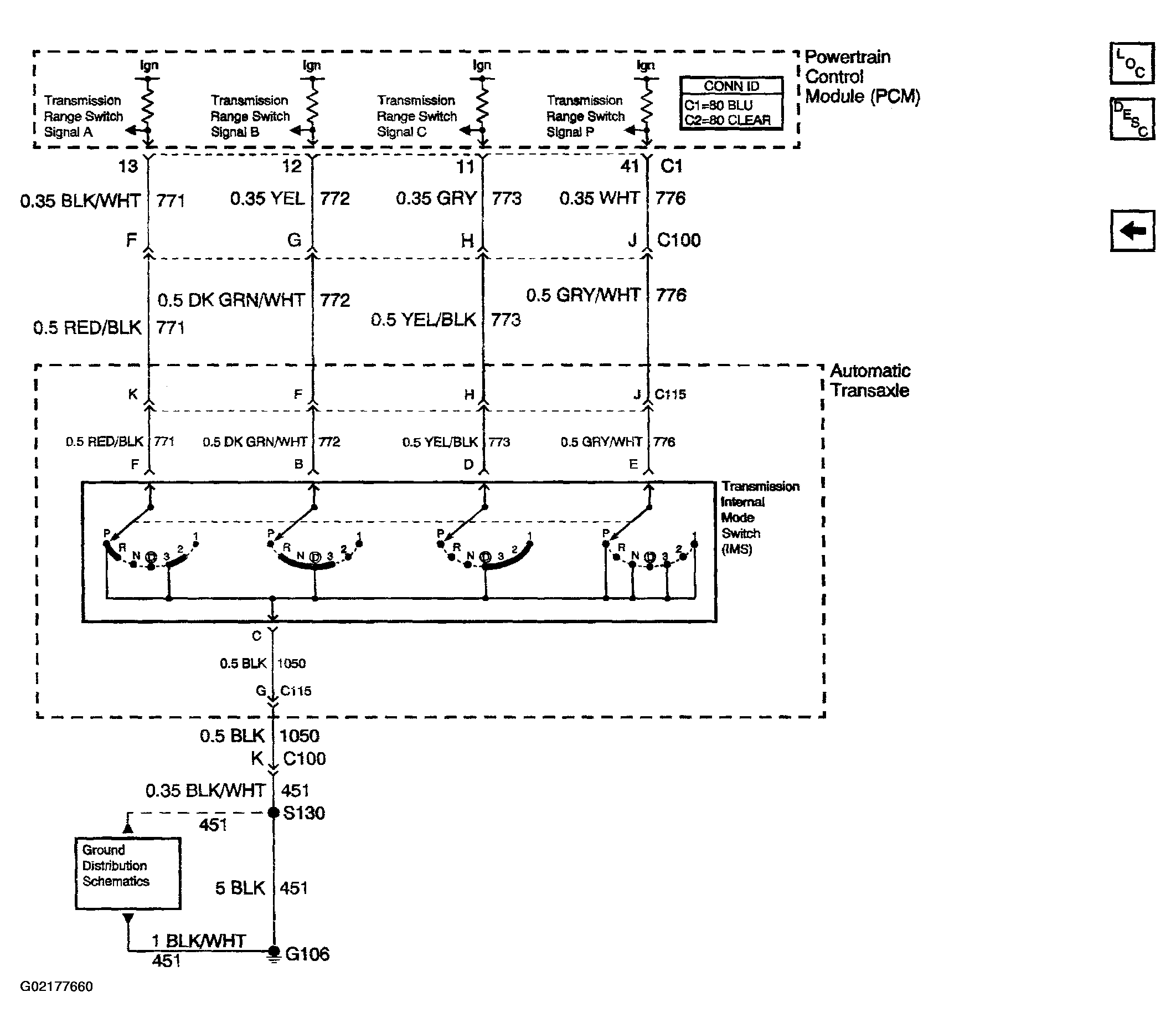

Fig 1: Automatic Transmission Shift Lock Schematics (Automatic Transaxle Fluid Pressure Manual Valve Position Switch)
G02177660Courtesy of GENERAL MOTORS CORP.
