Automatic Transmission Shift Lock Control Schematics: Notes

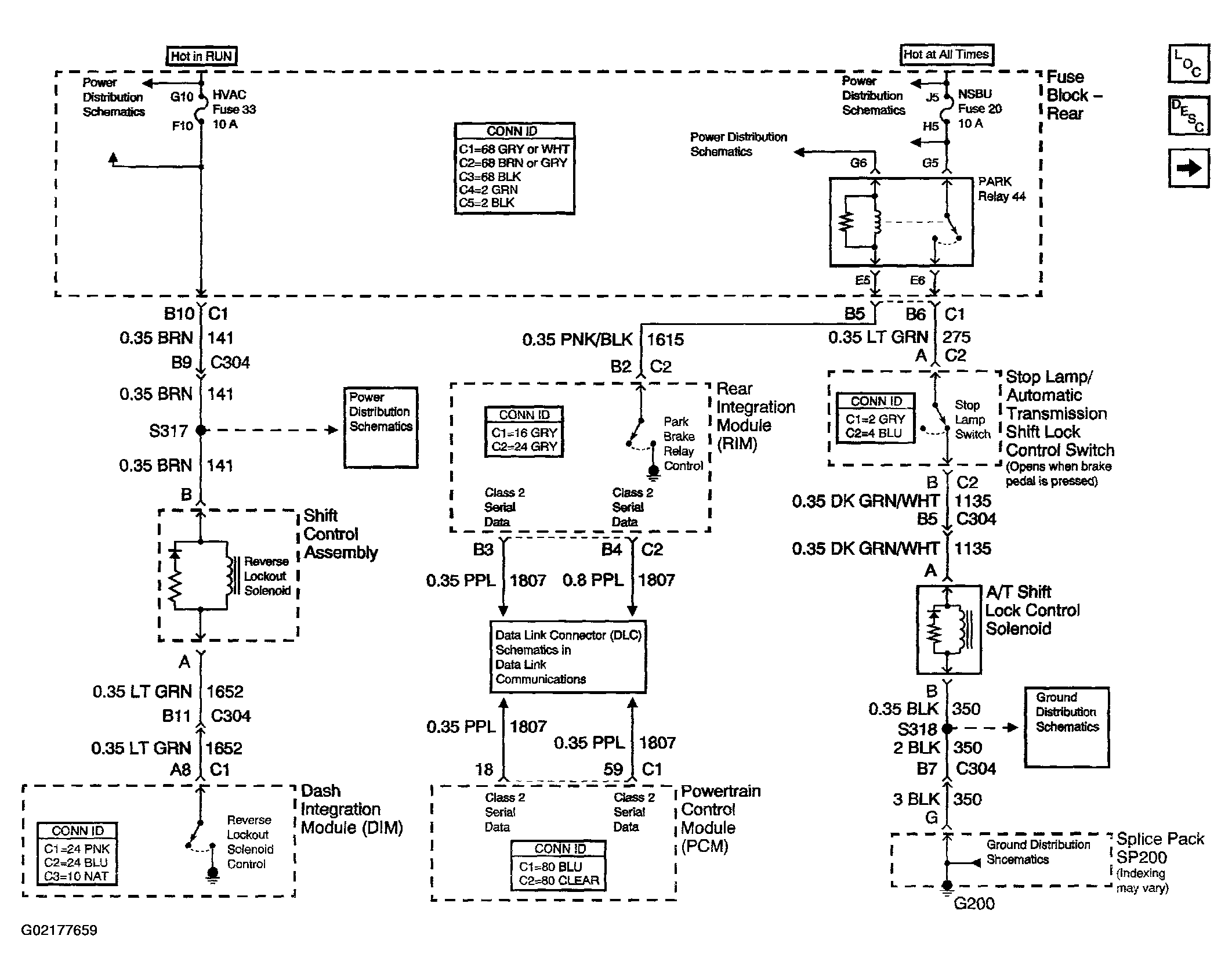

Fig 1: Automatic Transmission Shift Lock Control Schematics (Reverse Lockout & A/T Shift Lock Control Solenoids)

Courtesy of GENERAL MOTORS CORP.
