Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
Remove the passenger side rear assist handle. Refer to ASSIST HANDLE REPLACEMENT in Interior Trim.

Fig 1: Removing Passenger Side Rear Assist Handle
Courtesy of GENERAL MOTORS CORP.
Remove the rear seat cushion. Refer to SEAT SYSTEM in Seats.

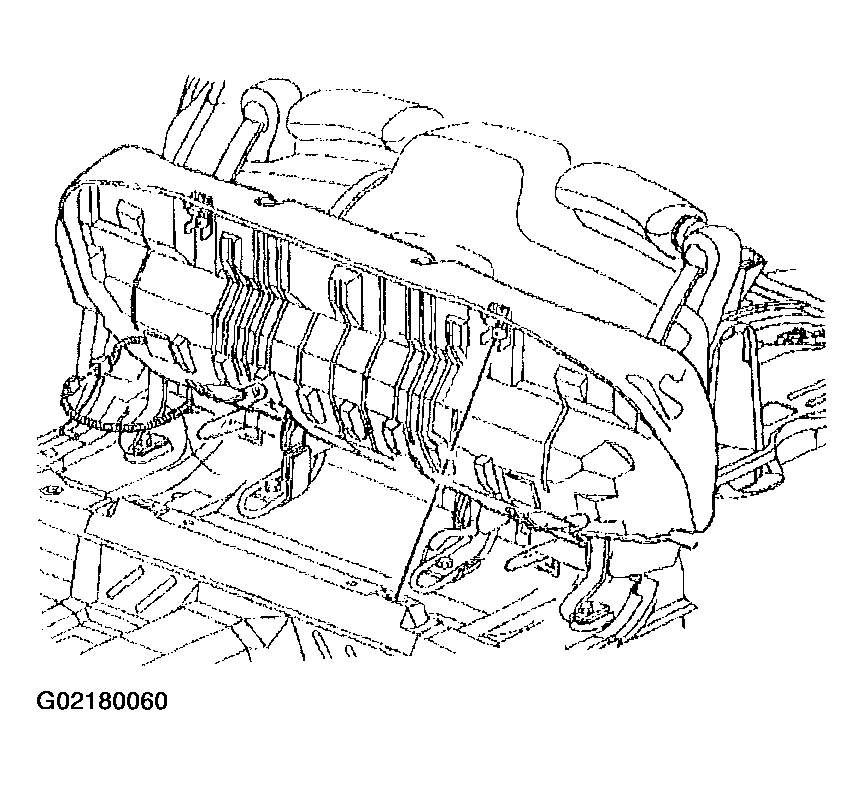

Fig 2: Removing Rear Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Remove the rear seat back. Refer to SEAT SYSTEM in Seats.

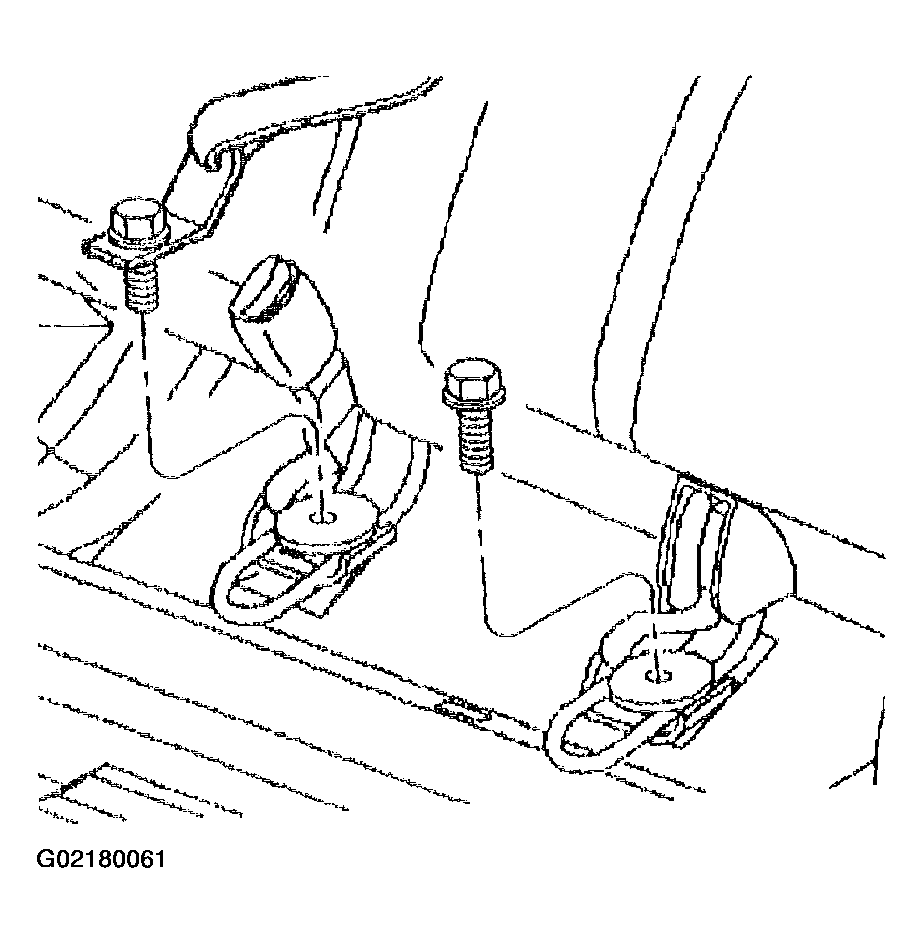

Fig 3: Removing Rear Seat Fasteners
Courtesy of GENERAL MOTORS CORP.
Remove the rear passenger seat belt retractor (4) Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR in Seat Belts.

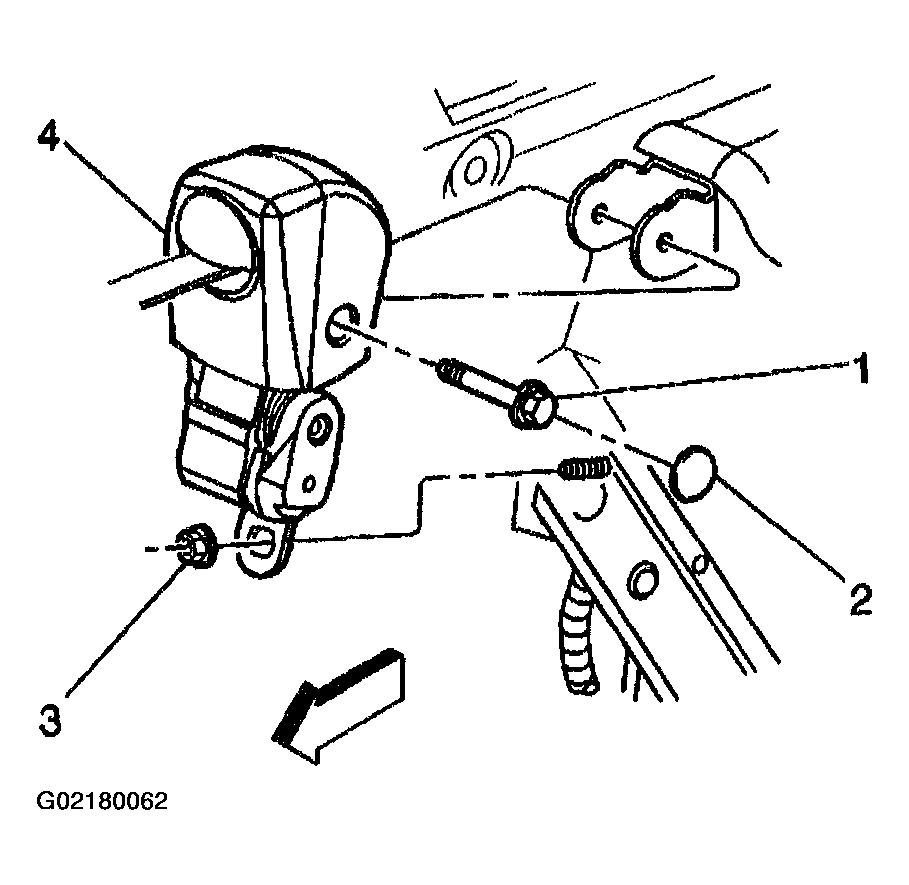

Fig 4: Removing Rear Passenger Seat Belt Retractor & Mounting Hardware
Courtesy of GENERAL MOTORS CORP.
Remove the passenger side rear sail panel. Refer to SAIL PANEL REPLACEMENT in Interior Trim.

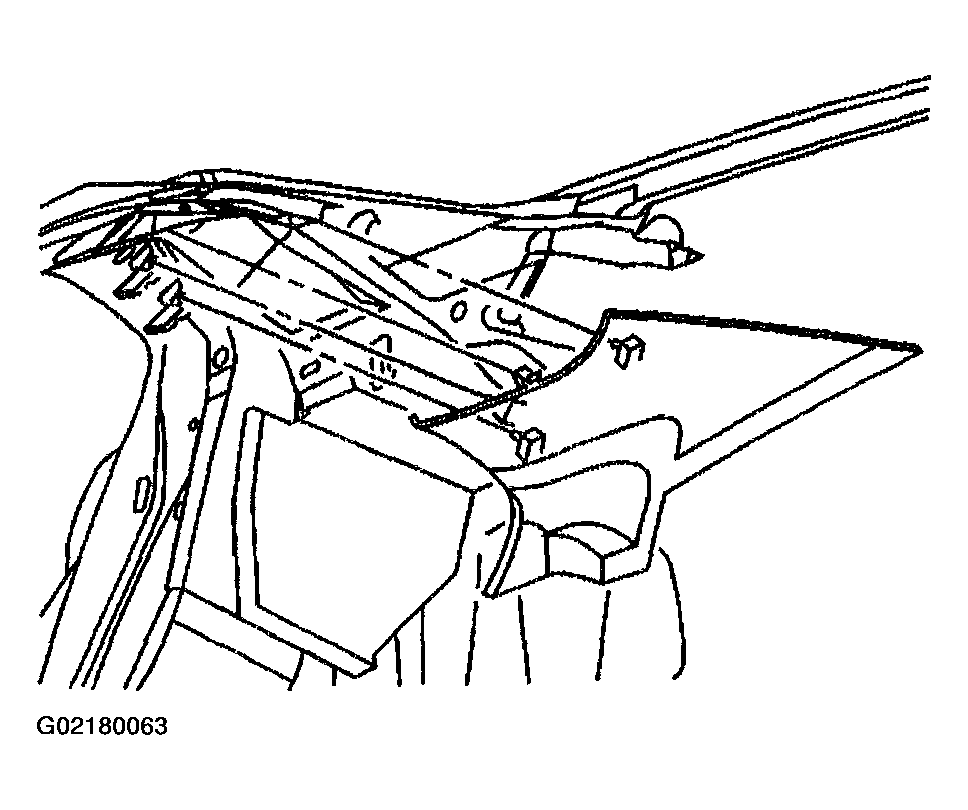

Fig 5: Removing Passenger Side Rear Sail Panel
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Release the passenger side center pillar trim garnish molding upper retainer.
Carefully pull the upper center trim panel inward in order to allow clearance for the headliner.

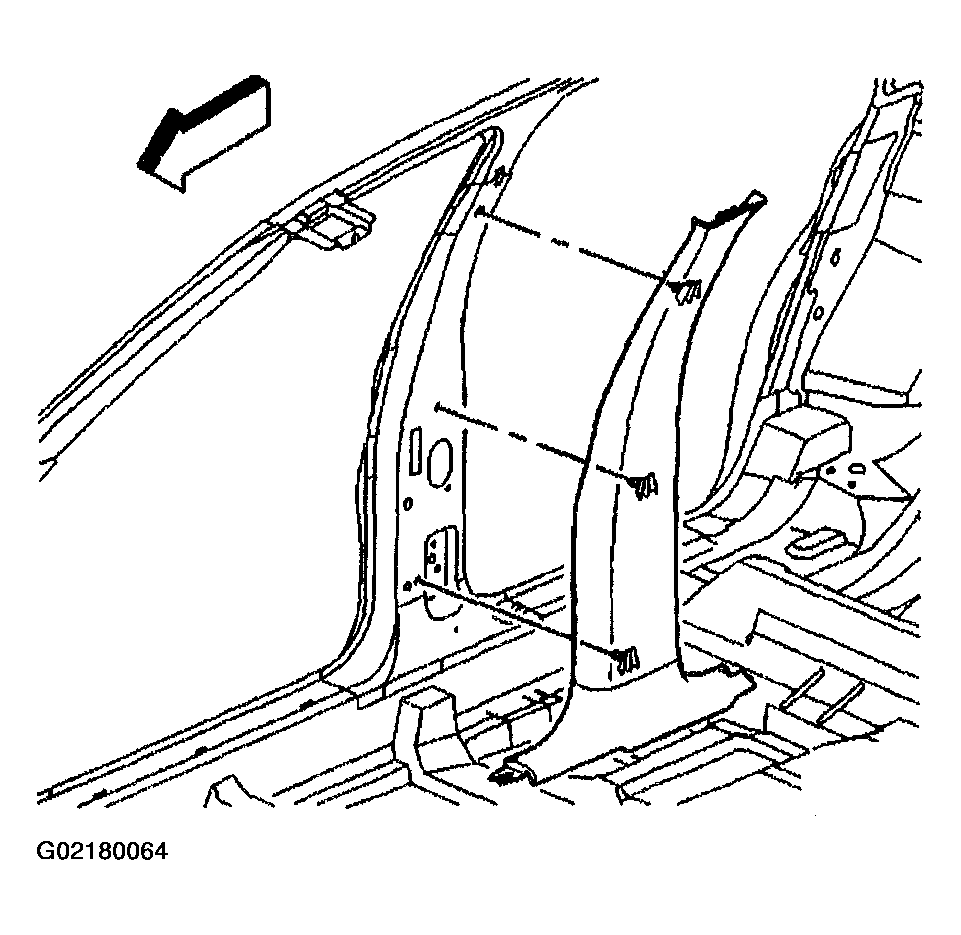

Fig 6: Removing Upper Center Trim Panel
Courtesy of GENERAL MOTORS CORP.
Carefully pull the passenger side of the headliner downward in order to release the center and rearward headliner roof magnets.
Reach inward between the headliner and roof panel in order to release the sunroof control module clip (3) securing the control module (1) to the sunroof module assembly (2).

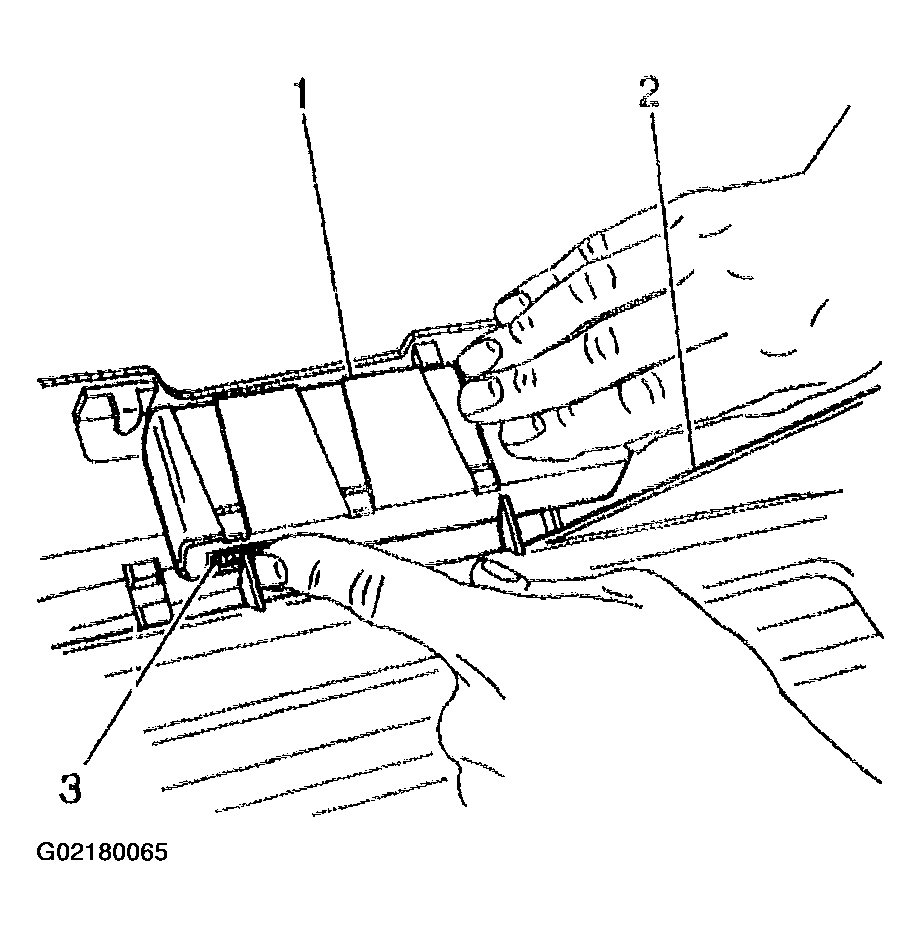

Fig 7: Releasing Sunroof Control Module Clip
Courtesy of GENERAL MOTORS CORP.
With the clip (3) depressed, slide the control module toward the sunroof motor/actuator.
Disconnect the electrical connectors.

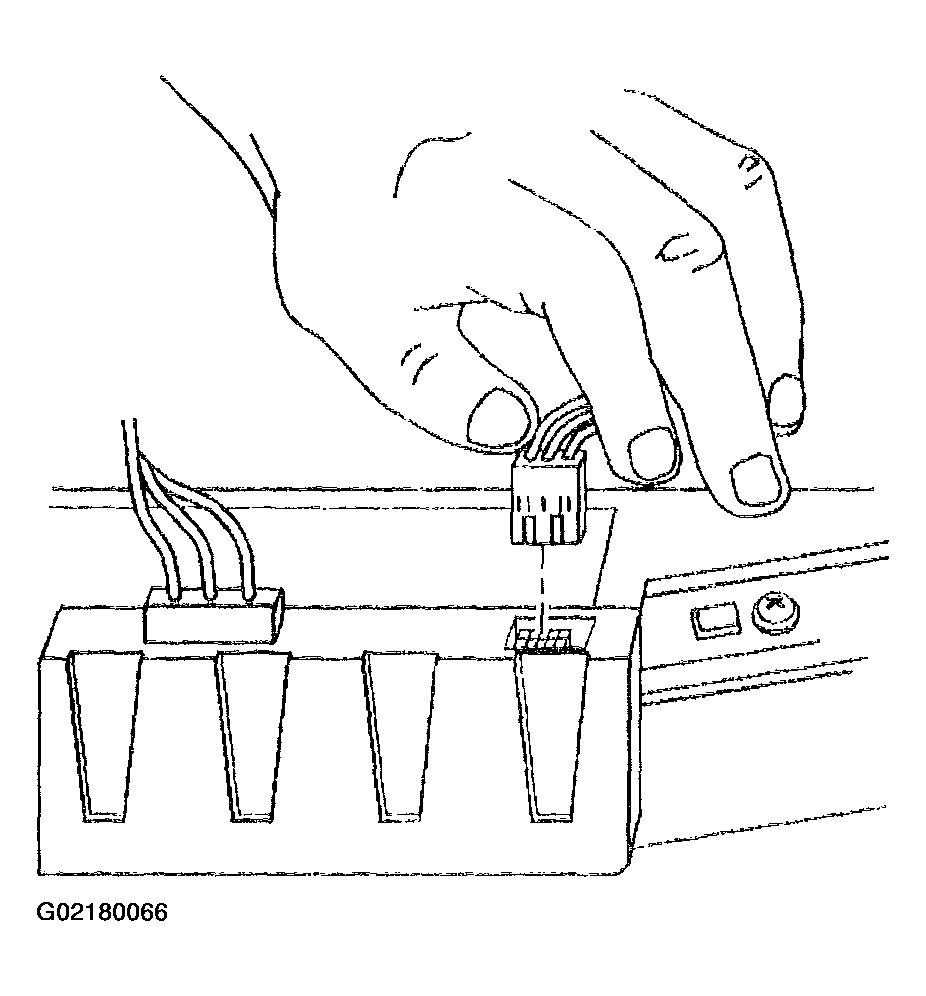

Fig 8: Disconnecting Sunroof Control Module Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the sunroof control module from the vehicle.
