Installation Procedure

  1. Position the sunroof module assembly to the roof opening.
  2. Hand start the sunroof module assembly bolts (1) into the roof.
  3. Insert the J 44363  into the sunroof module assembly alignment holes (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Secure the sunroof module assembly to the roof.

    Tighten

    Tighten the sunroof module assembly bolts (1) to 9 N.m (80 lb in).

  5. Remove the J 44363.

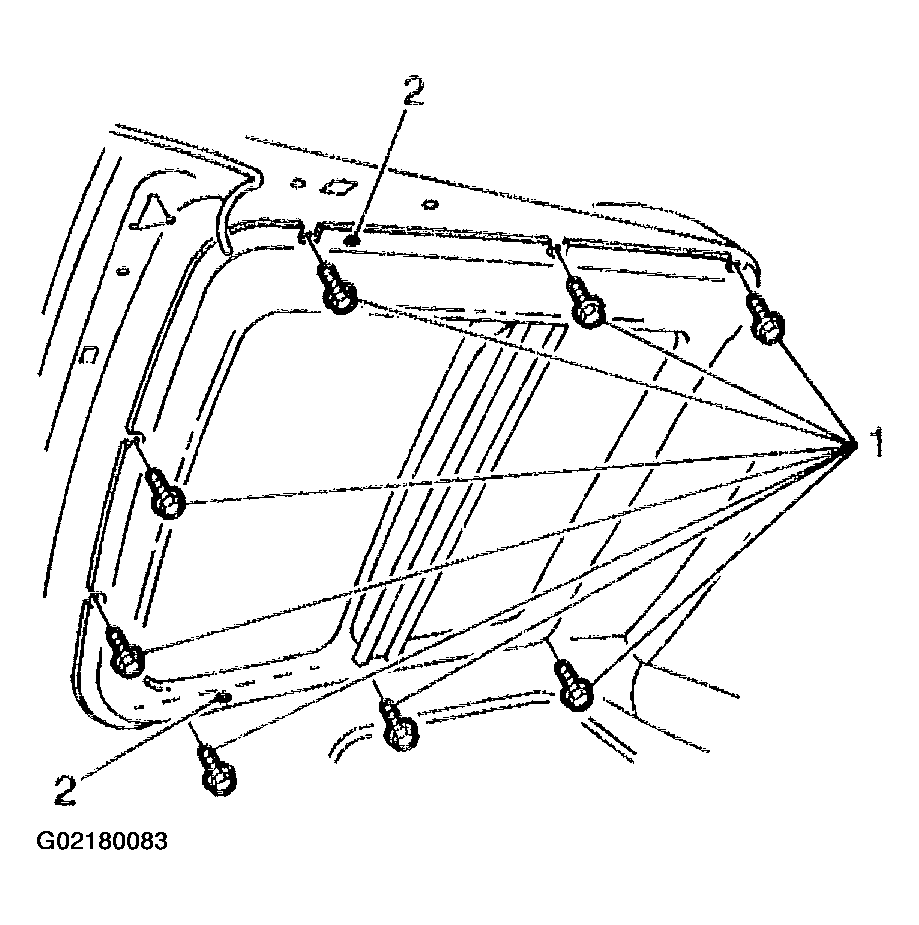

    Fig 1: Installing Sunroof Module Assembly Retaining Bolts
    G02180083Courtesy of GENERAL MOTORS CORP.
  6. Connect the drain hoses to the drain spouts on the sunroof module assembly.
    IMPORTANT: When installing the new drain hose tie wraps, position the tie wraps to maintain clearance between the tie warps and the headliner.

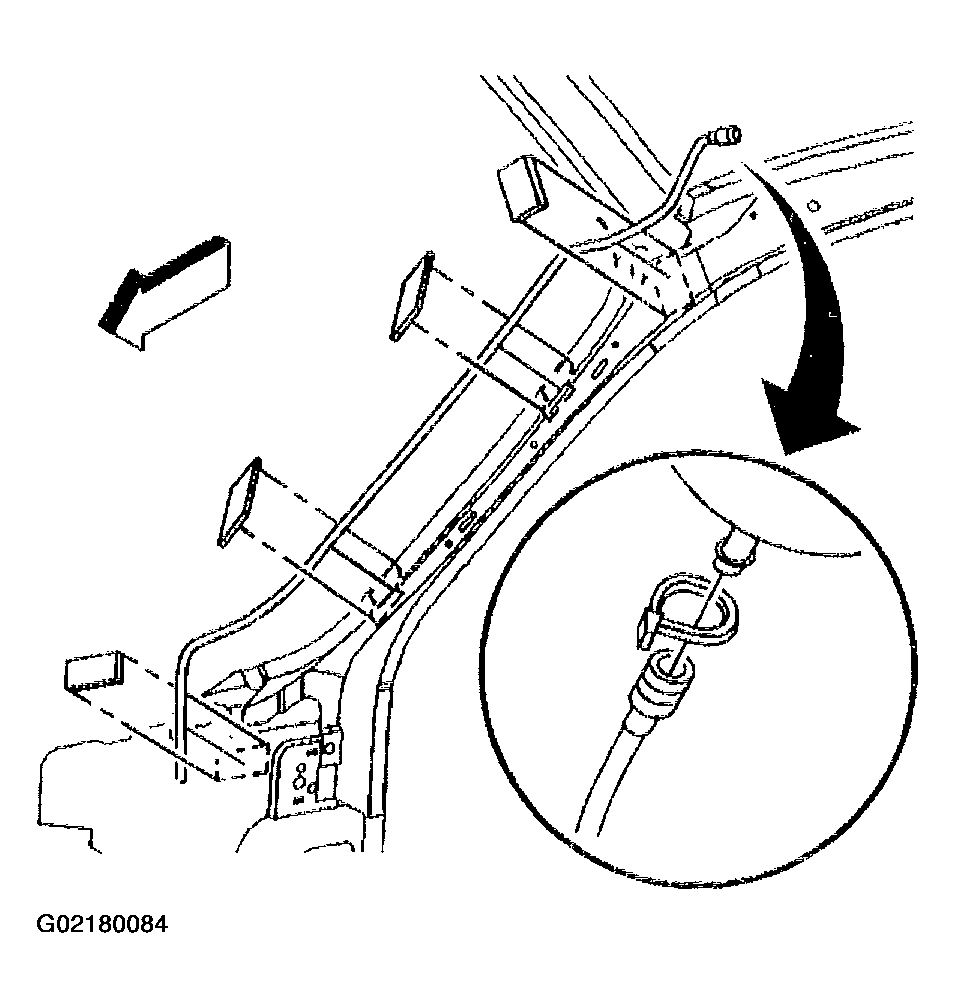

    Fig 2: Connecting Drain Hoses To Sunroof Module Assembly
    G02180084Courtesy of GENERAL MOTORS CORP.
  7. Secure the drain hoses to the sunroof module with new tie wraps.
  8. Connect the electrical harness to the sunroof module assembly.
  9. Install the sunshade. Refer to SUNROOF SUNSHADE PANEL REPLACEMENT   .
  10. Install the sunroof window and loosely install the screws. Refer to SUNROOF WINDOW REPLACEMENT   .
  11. Adjust the sunroof window. Refer to SUNROOF WINDOW HEIGHT AND OPENING FIT ADJUSTMENT   .
    IMPORTANT: Test for proper operation of the sunroof before installing the headliner.
  12. Install the headliner. Refer to HEADLINER REPLACEMENT (W/O CF5) or HEADLINER REPLACEMENT (W/ CF5) in Interior Trim.
