Body Control System Schematics (Dim Ignition Inputs)

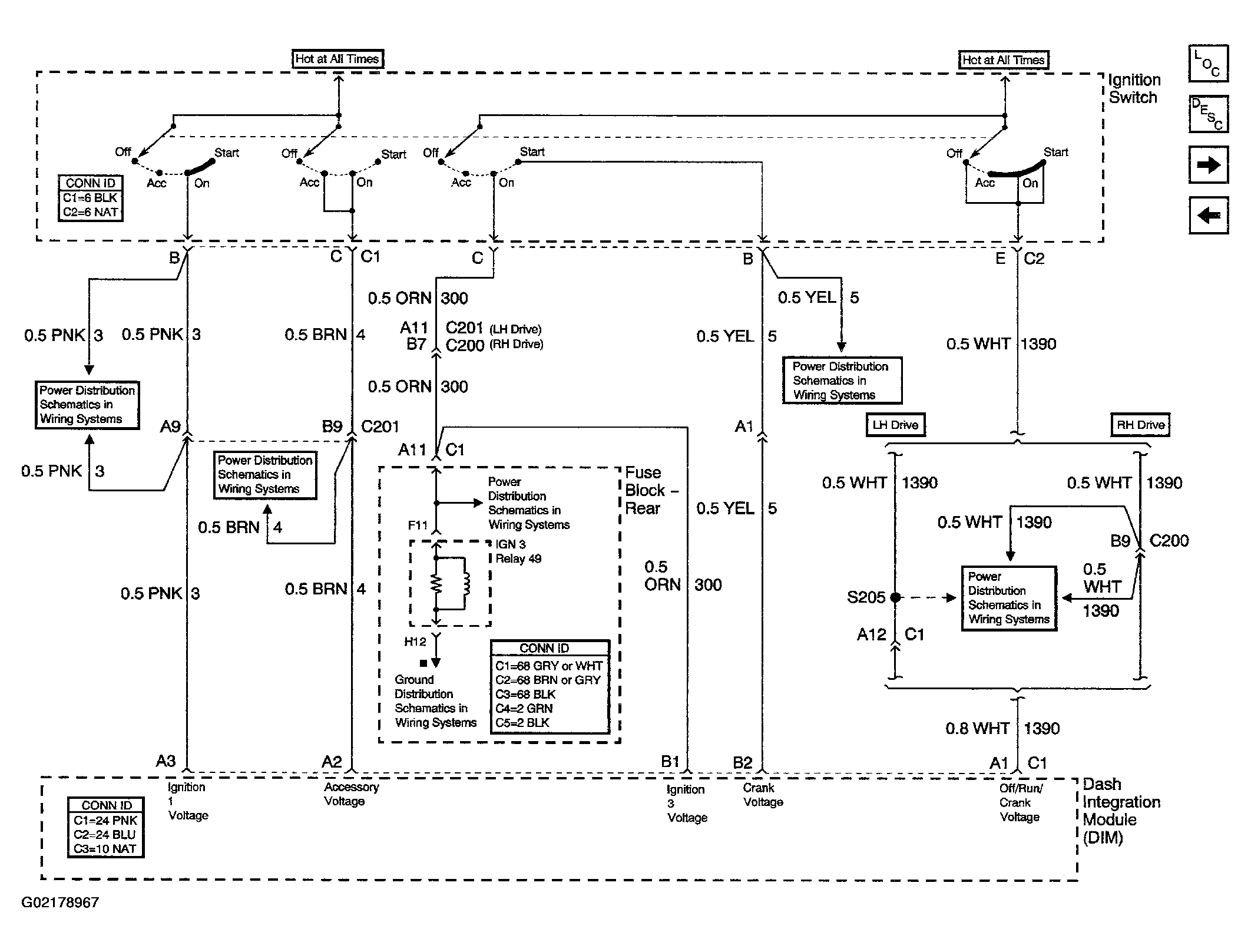

Fig 1: Body Control System Schematics (Dim Ignition Inputs)
G02178967Courtesy of GENERAL MOTORS CORP.
