Removal Procedure

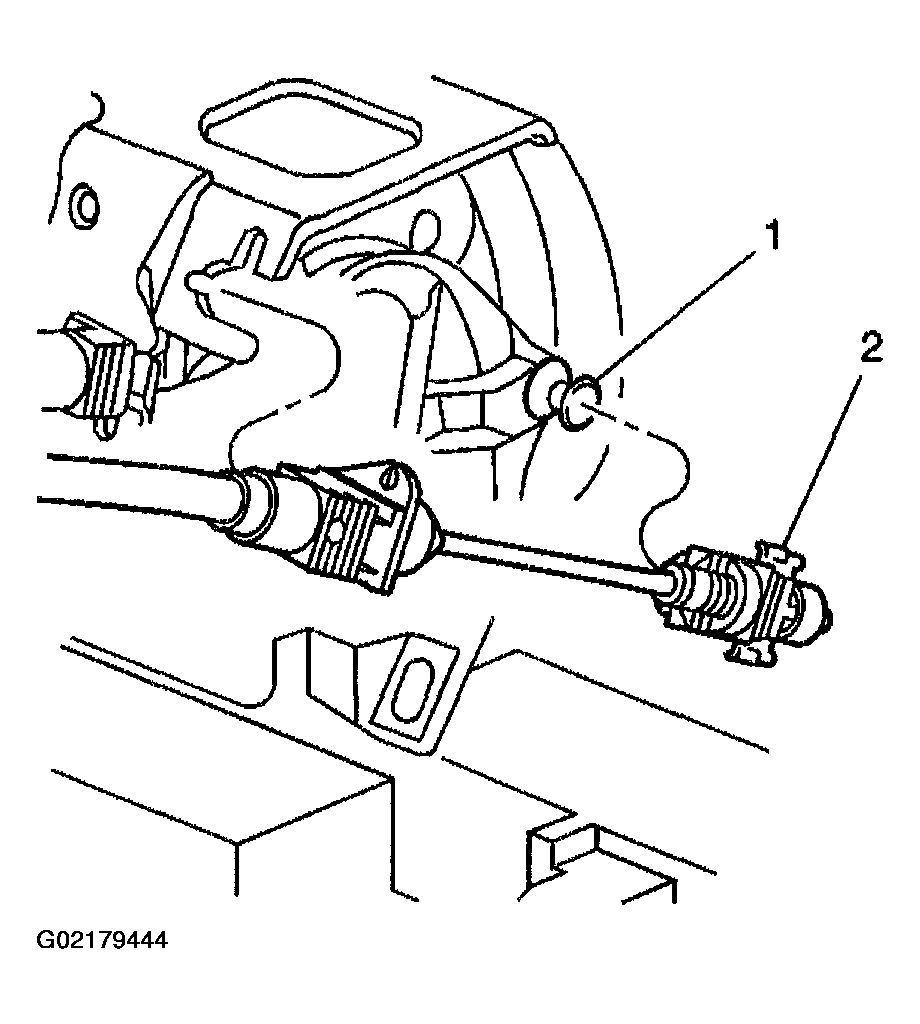

Remove the cruise control cable (2) at the throttle body level (1) and at the throttle body bracket.

Fig 1: Removing Cruise Control Cable At Throttle Body Lever
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Note the cable routing and the retainer position for reference during installation.

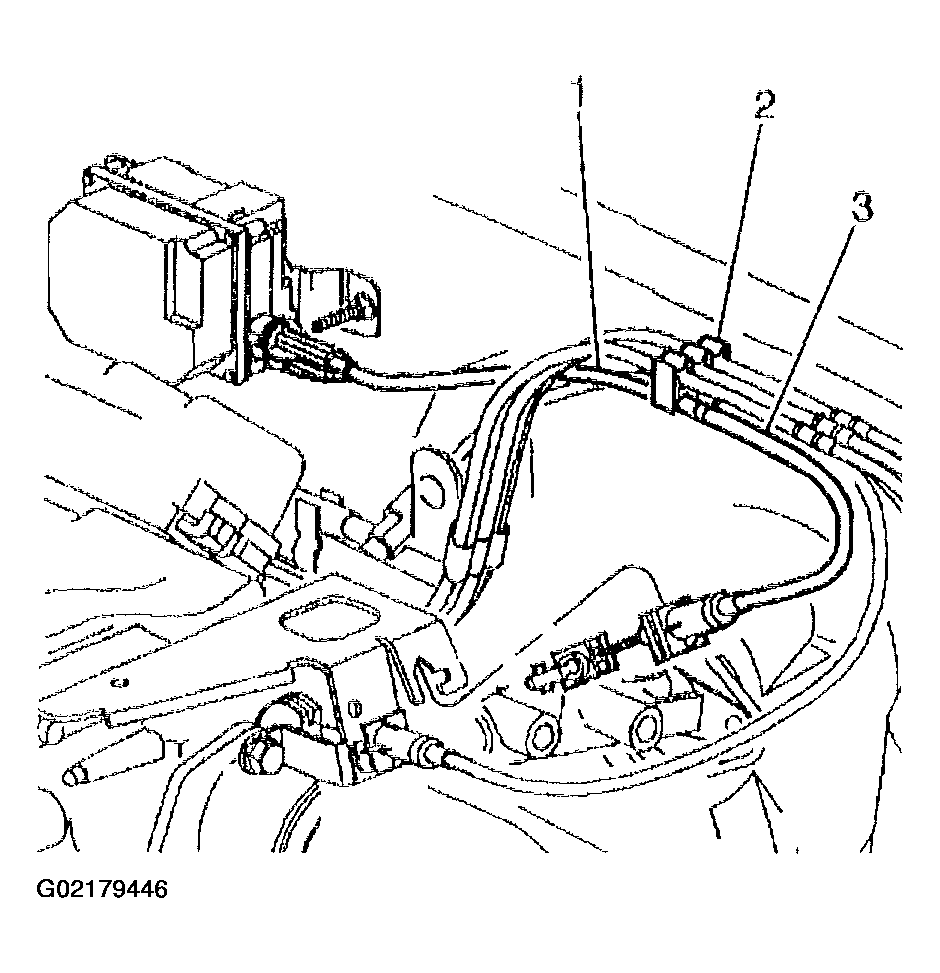

Remove the cruise control cable (1) from the cruise control module connector (3).

Fig 2: Removing Cruise Control Cable From Cruise Control Module Connector
Courtesy of GENERAL MOTORS CORP.
Remove the cable (1) from the retainers (2).

Fig 3: Removing Cruise Control Cable From Retainers
Courtesy of GENERAL MOTORS CORP.
