Removal Procedure

  1. Remove the rear shelf trim panel. Refer to INTERIOR TRIM  in Interior Trim.
  2. Remove the electrical connectors from the TV antenna module.
  3. Remove the fastener retaining the TV antenna module.
  4. Remove the TV antenna module.

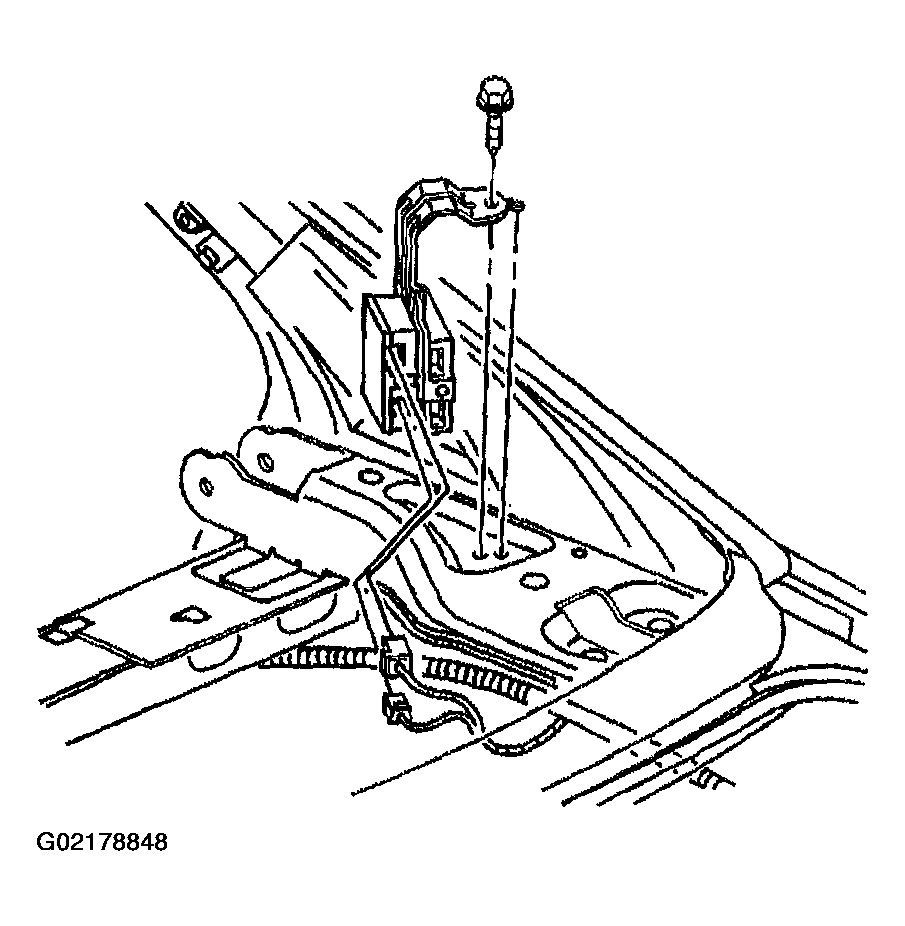

    Fig 1: Removing TV Antenna Module Assembly
    G02178848Courtesy of GENERAL MOTORS CORP.
