Heated Seat Module - Front Passenger C2

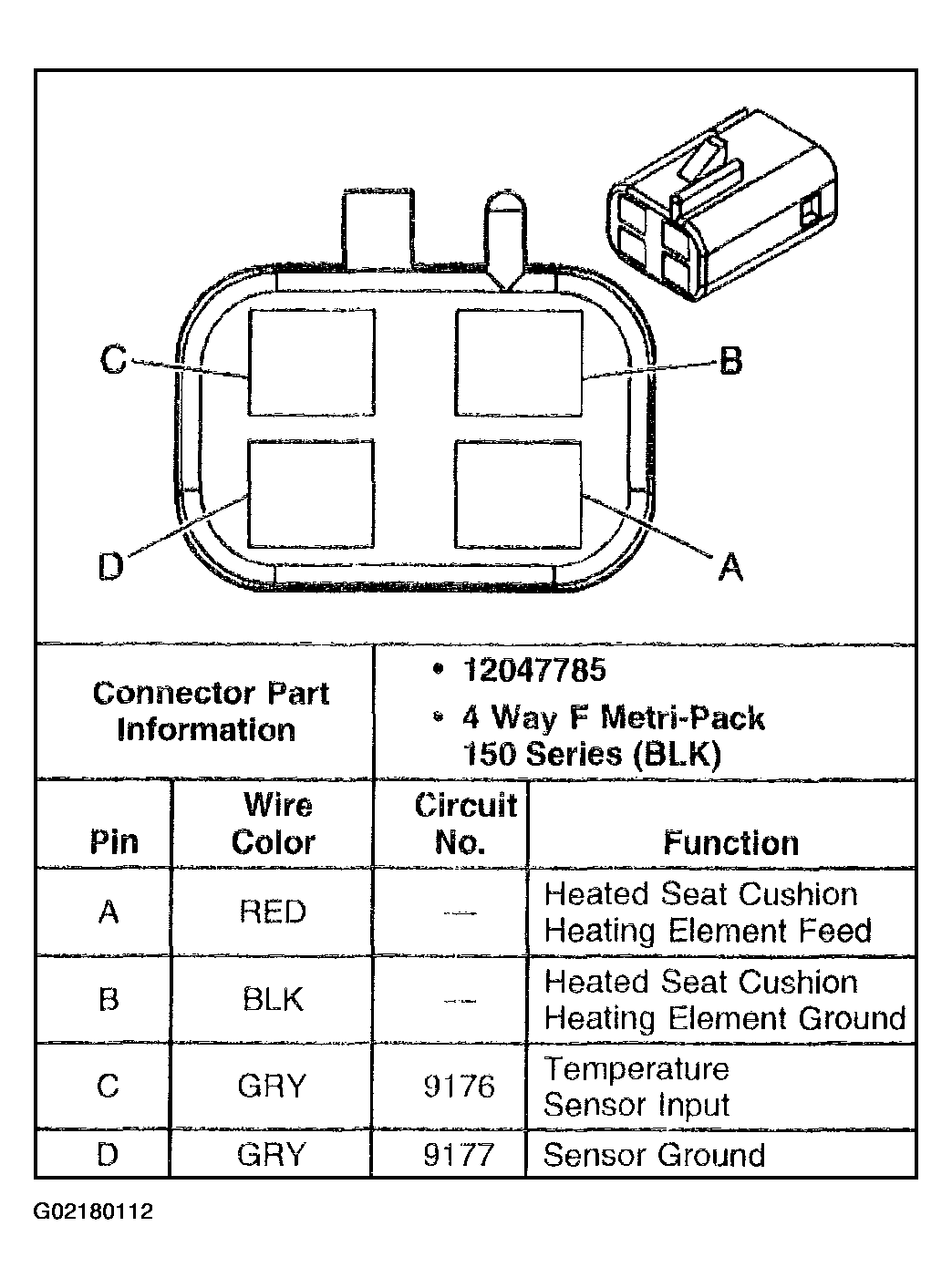

Fig 1: Heated Seat Module - Front Passenger C2 Connector End View
G02180112Courtesy of GENERAL MOTORS CORP.
