Heated Seat Module - LR C3

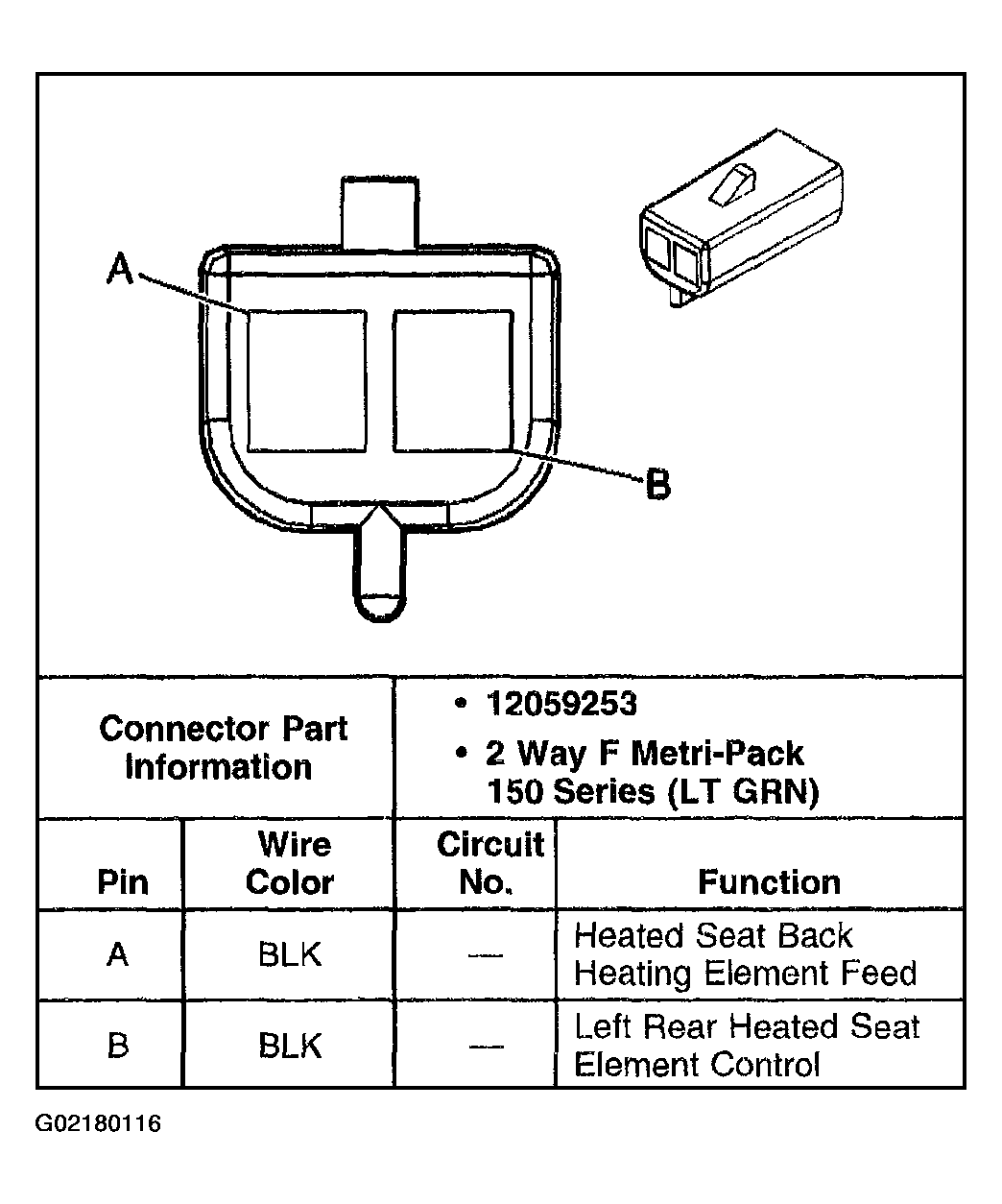

Fig 1: Heated Seat Module - LR C3 Connector End View
G02180116Courtesy of GENERAL MOTORS CORP.
