Rear Integration Module (RIM)

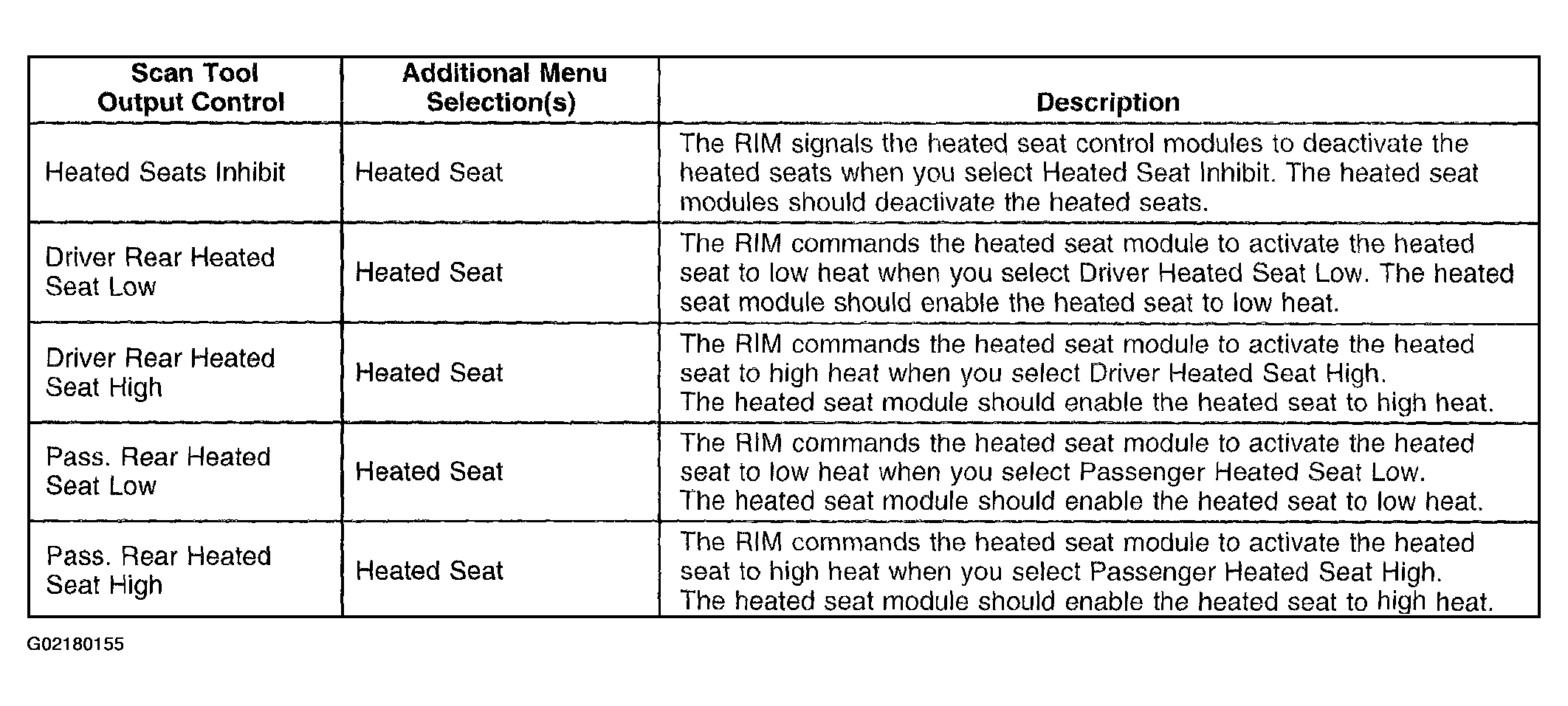

Fig 1: Rear Integration Module (RIM)
G02180155Courtesy of GENERAL MOTORS CORP.
