Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
Disconnect the electrical connectors to the heated seat module.

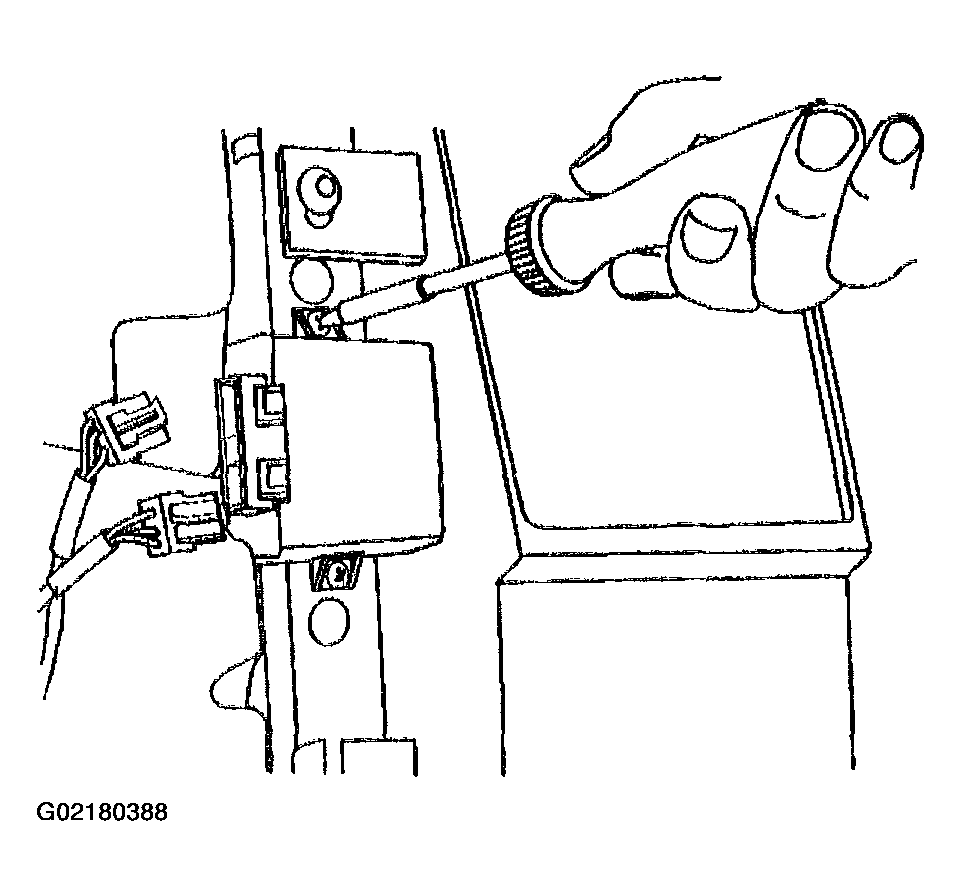

Fig 1: Removing Heated Seat Control Module, Fasteners & Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Remove the fasteners from the heated seat control module.
Remove the rear heated seat module from the seat back.
