Installation Procedure

Install the memory seat switch (2) to the door trim panel.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the memory seat switch fasteners (1), fully driven, seated, but not stripped.

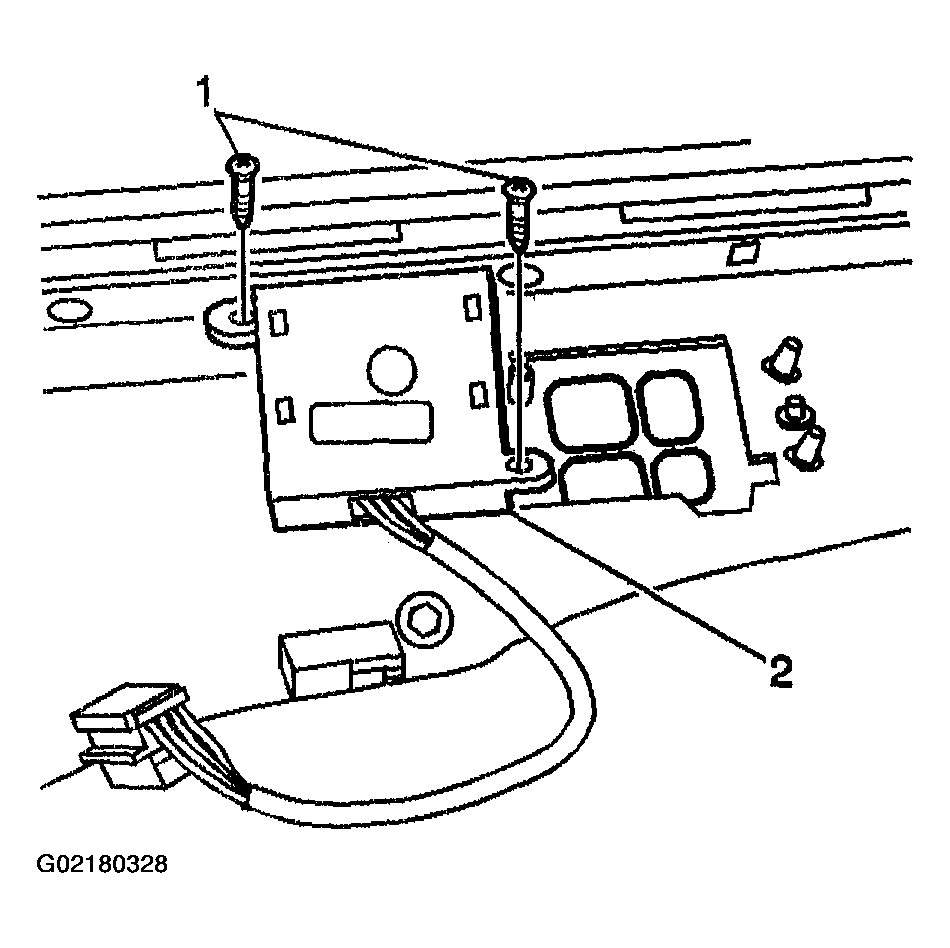

Fig 1: Installing Memory Seat Switch & Fasteners
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector (2) to the memory seat switch (1).

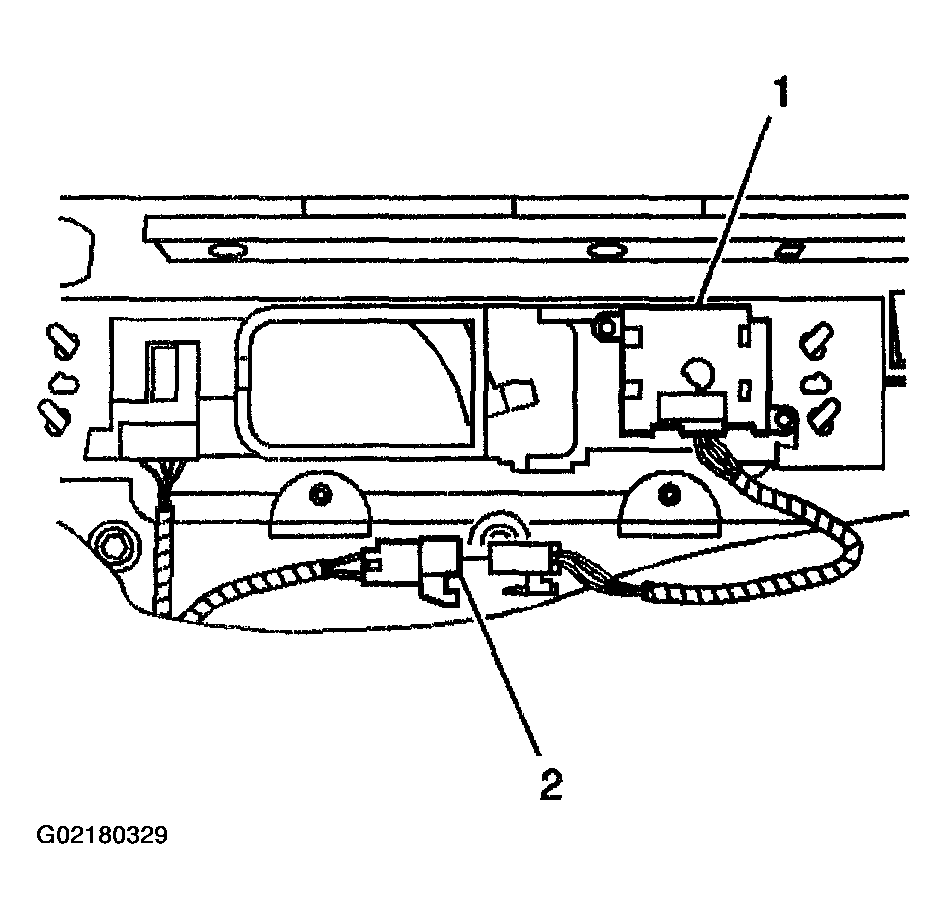

Fig 2: Connecting Memory Seat Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the inside door handle to the door trim panel. Refer to DOOR HANDLE REPLACEMENT - FRONT INSIDE in Doors.
Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.
