Installation Procedure

  1. Slide the seat back straight down into recliner assembly and align the bolt holes.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install 4 seat back frame bolts.

    Tighten

    Tighten the seat back frame bolts to 28 N.m (21 lb ft).

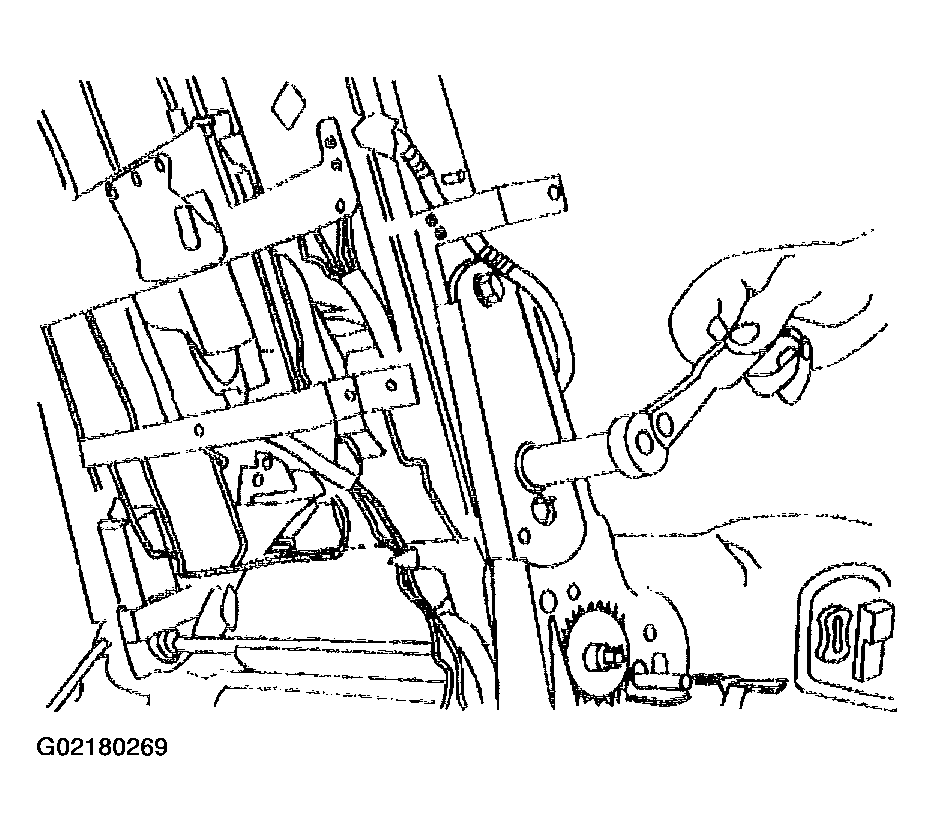

    Fig 1: Installing Seat Back Frame Bolts
    G02180269Courtesy of GENERAL MOTORS CORP.
  3. Connect the heated seat electrical connectors, if equipped with KA1.
    Fig 2: Connecting Heated Seat Electrical Connectors
    G02180270Courtesy of GENERAL MOTORS CORP.
  4. Connect the air lines for the adaptive lumbar, if equipped with AC9.
  5. Connect the lumbar electrical connector.

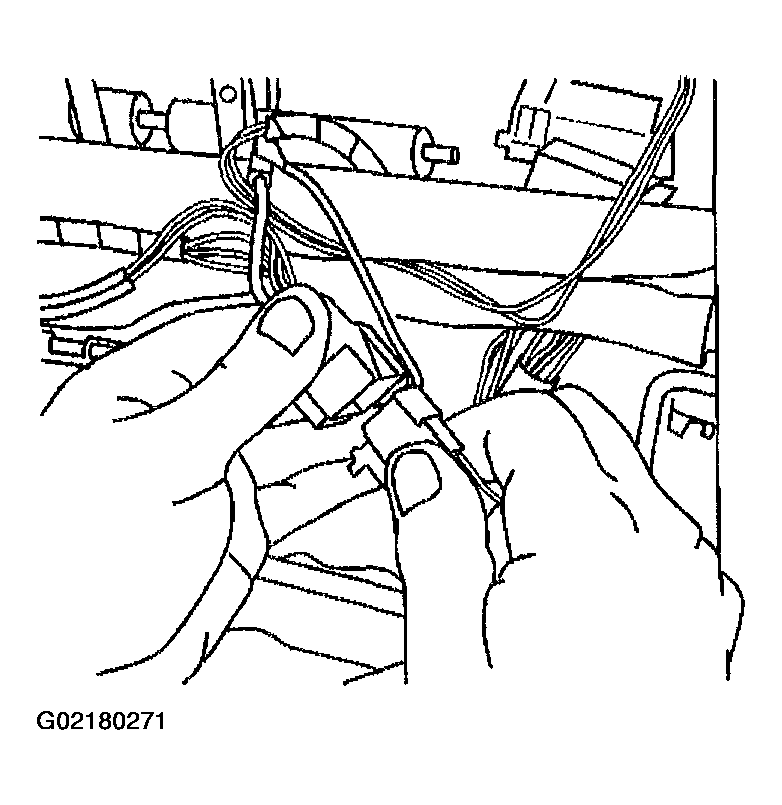

    Fig 3: Connecting Lumbar Electrical Connector
    G02180271Courtesy of GENERAL MOTORS CORP.
  6. Connect the side impact air bag electrical connector.
  7. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT   .
  8. Install the front seat belt shoulder retractor. Refer to SEAT BELT REPLACEMENT -- DRIVER OR PASSENGER  in Seat Belts.
  9. Install the rear seat belt post finish cover.
  10. Install the rear seat belt post finish cover fasteners.

    Tighten

    Tighten the fasteners fully driven, seated, but not stripped.

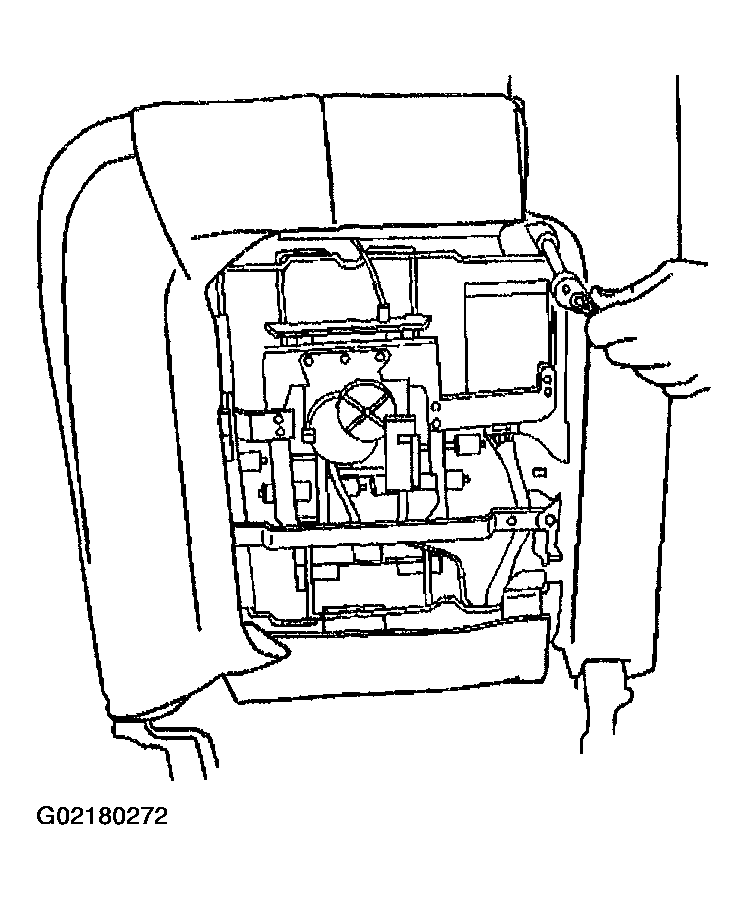

    Fig 4: Installing Seat Belt Post Finish Cover Fasteners
    G02180272Courtesy of GENERAL MOTORS CORP.
  11. Install the seat back trim cover. Refer to SEAT BACK PANEL REPLACEMENT - FRONT   .
  12. Install the front bucket seat into the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET   .
