Memory Seats Schematics (Memory/Personalization Function Switch)

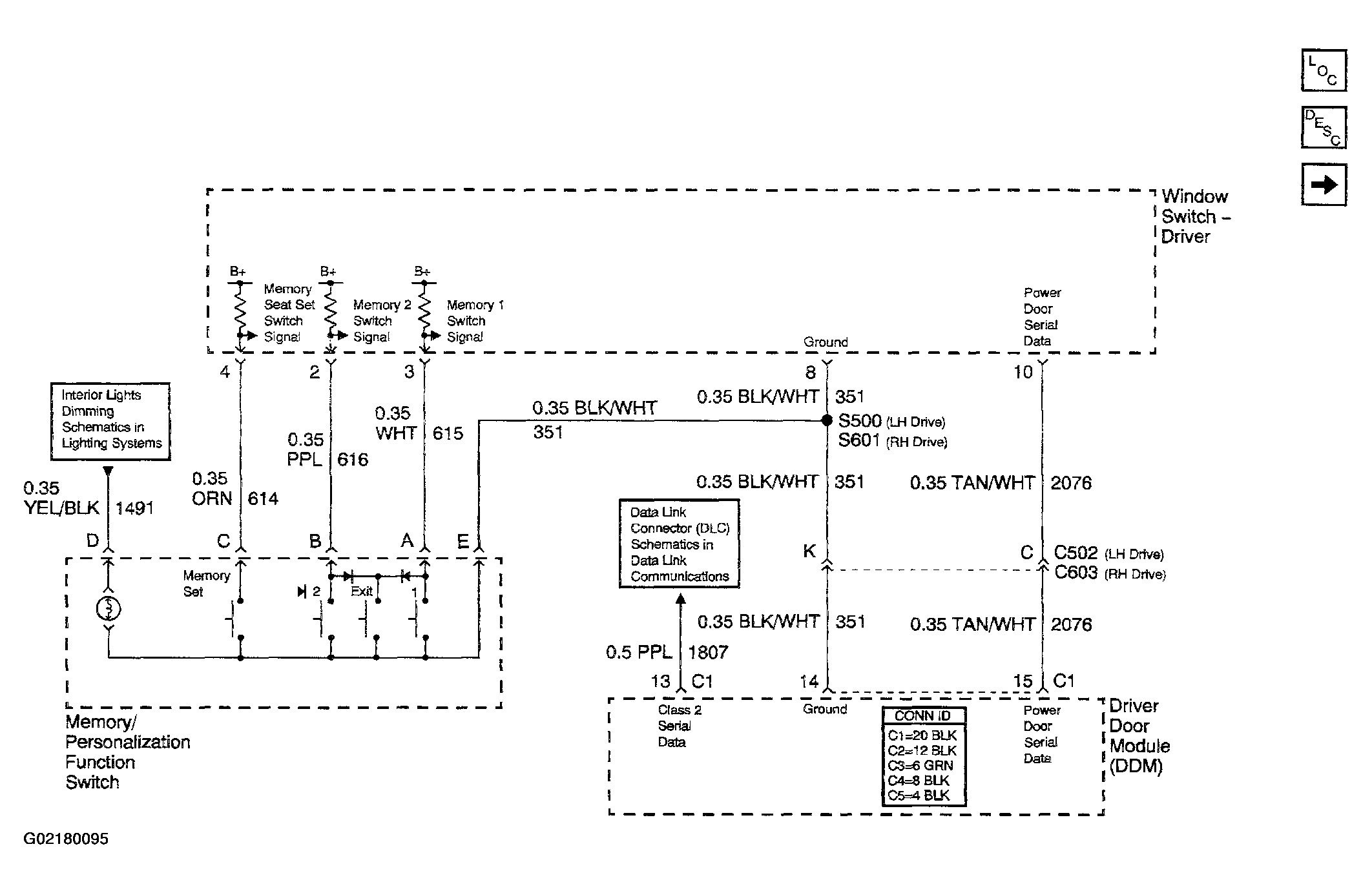

Fig 1: Memory Seats Schematics (Memory/Personalization Function Switch)
G02180095Courtesy of GENERAL MOTORS CORP.
