Power Windows Inoperative - Express Up Function

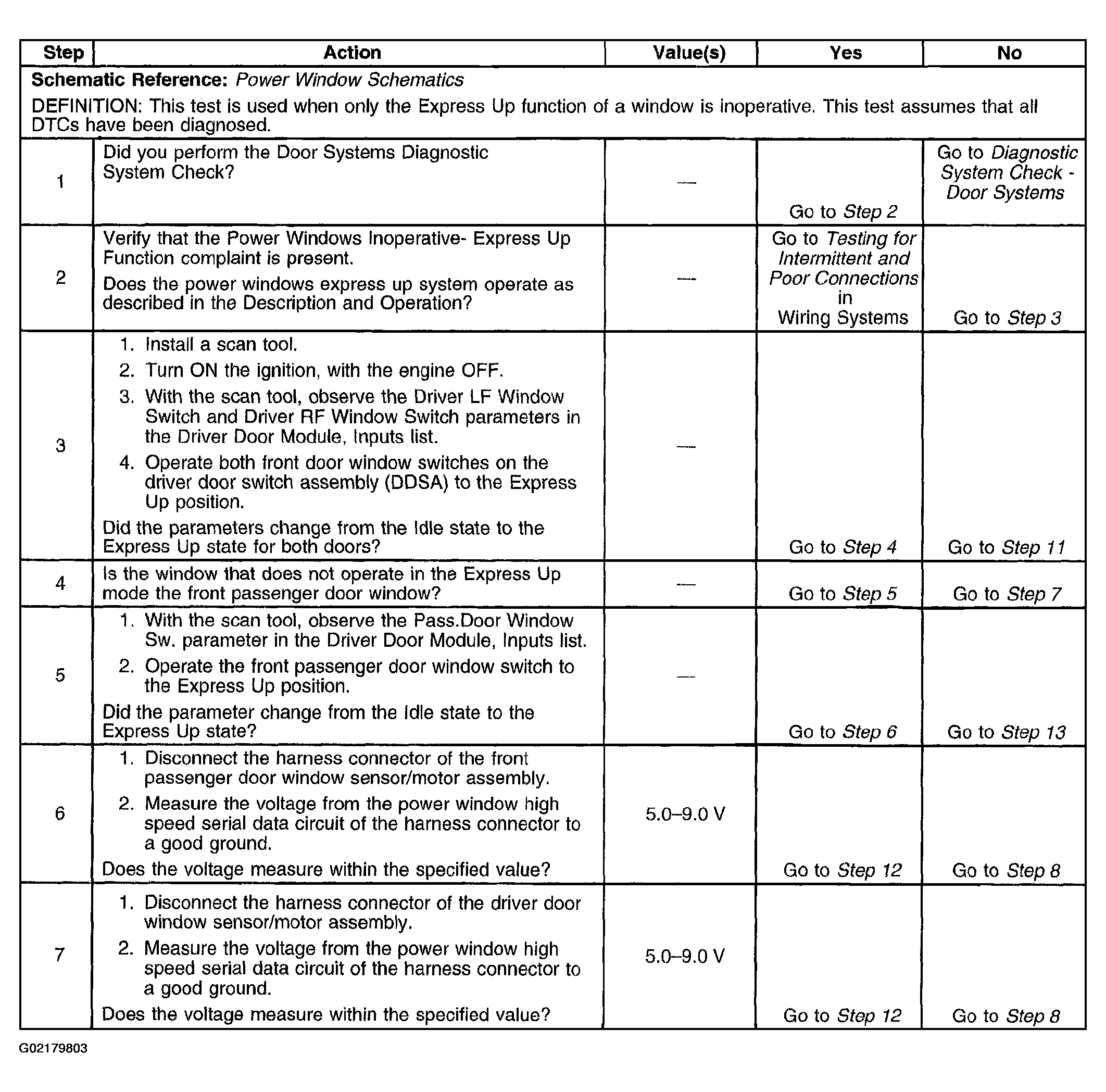

Fig 1: Power Windows Inoperative - Express Up Function (Steps 1 - 7)
G02179803Courtesy of GENERAL MOTORS CORP.

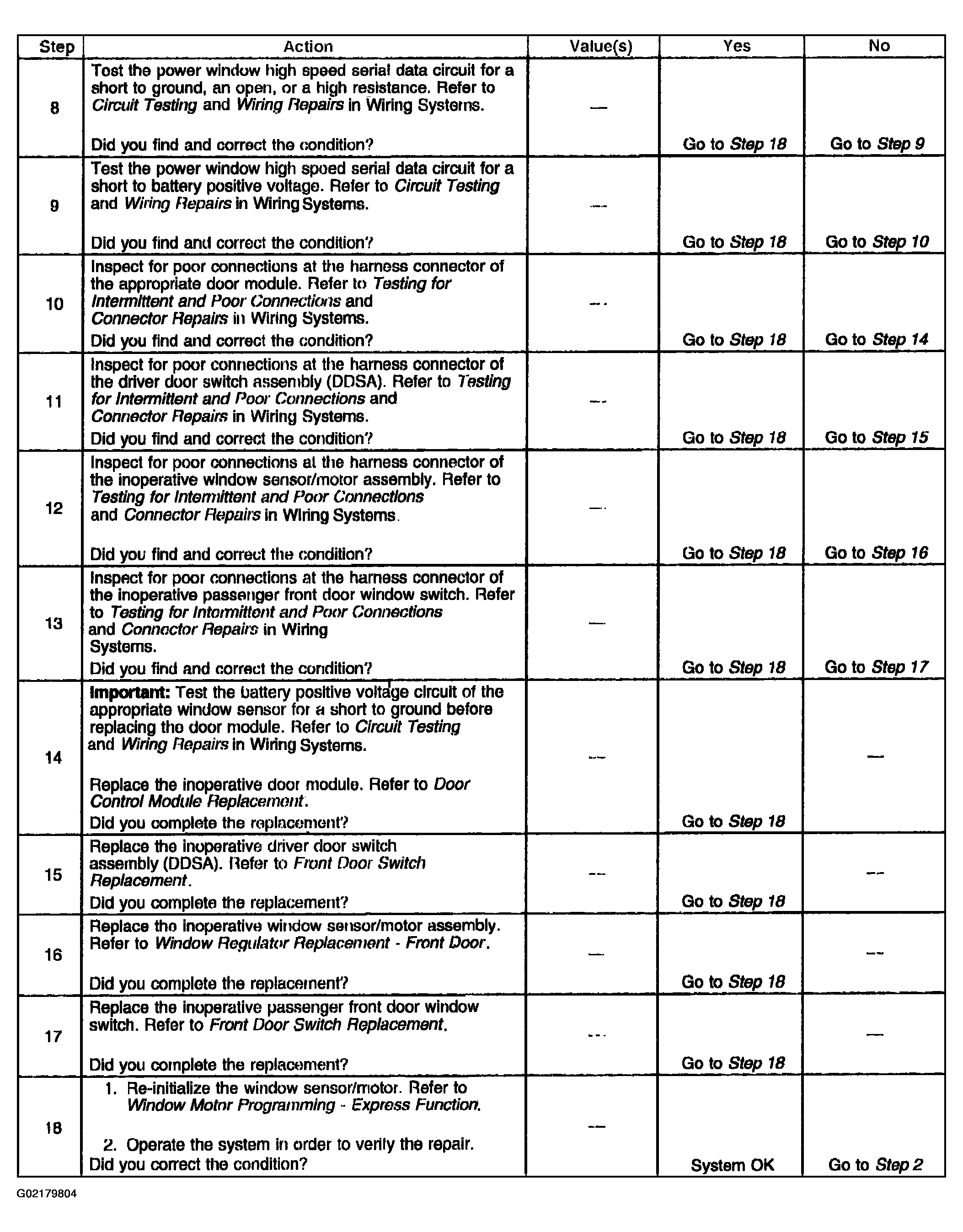

Fig 2: Power Windows Inoperative - Express Up Function (Steps 8 - 18)
G02179804Courtesy of GENERAL MOTORS CORP.
