Removal Procedure

Open the door.
Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
Remove the door check link cover (2).

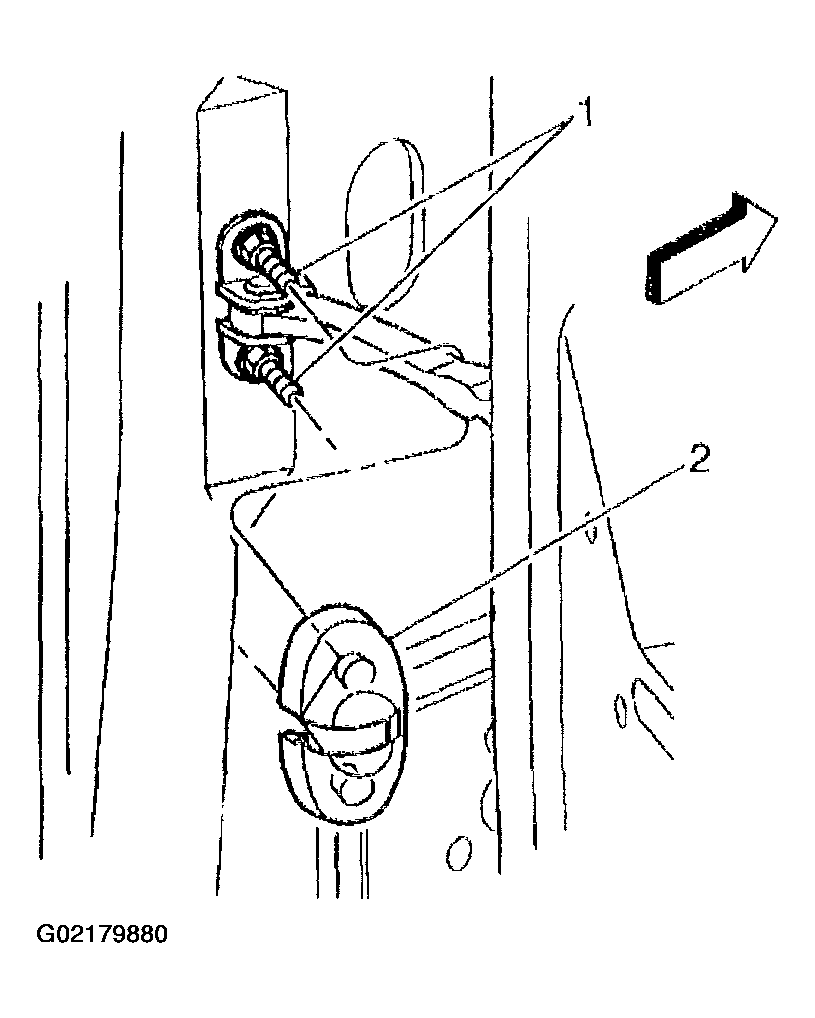

Fig 1: Removing Door Check Link Cover
Courtesy of GENERAL MOTORS CORP.
Remove the two studs from the door check link arm.

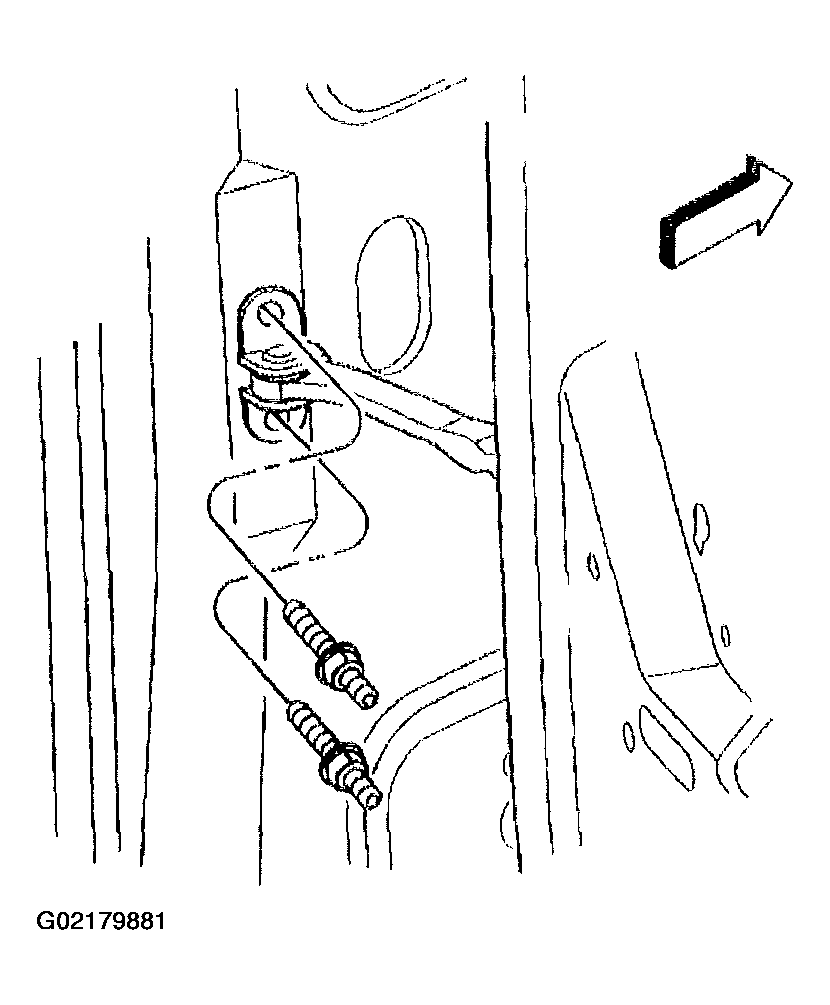

Fig 2: Removing Studs From Door Check Link Arm
Courtesy of GENERAL MOTORS CORP.
Note the position of the arrow on the check link arm to aid in reassembly.
Remove the two fasteners from the check link.

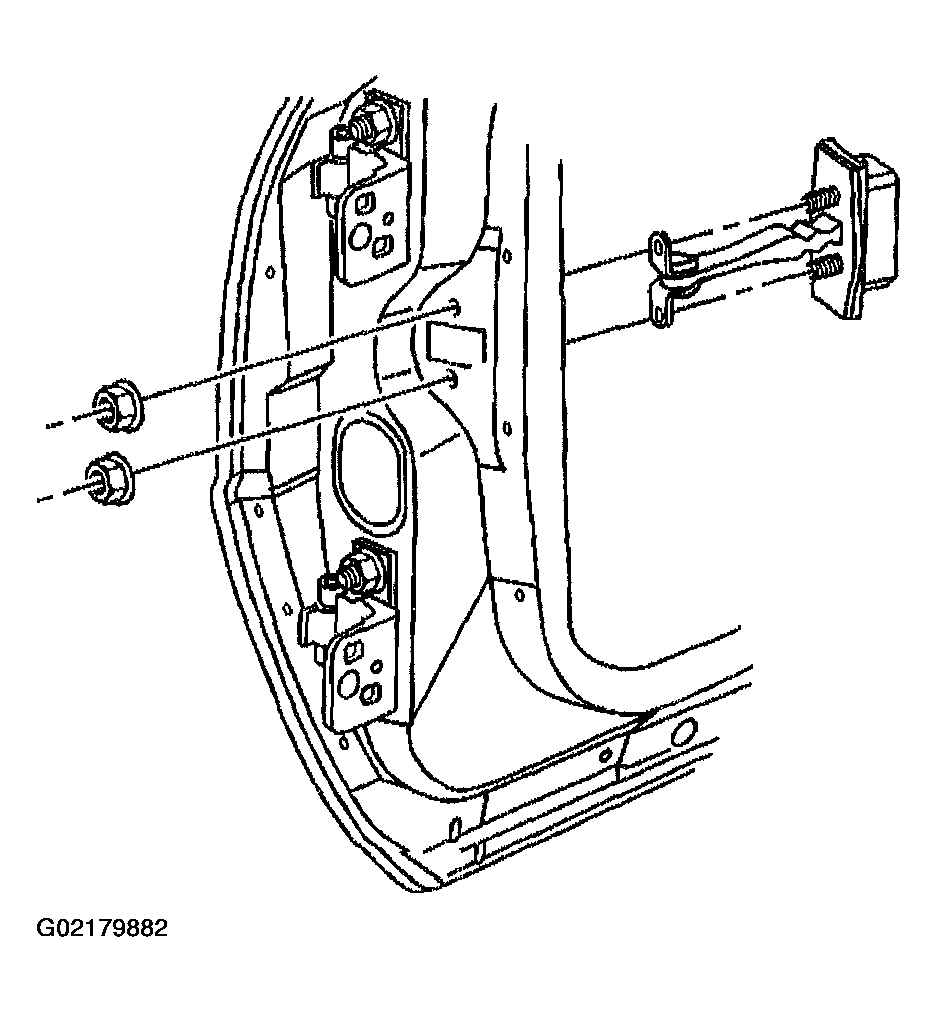

Fig 3: Removing Fasteners & Check Link From Door
Courtesy of GENERAL MOTORS CORP.
Remove the check link from the door.
