Removal Procedure

  1. Run the window to the full-down position.
  2. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   .
  3. Remove the door window inner belt molding. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER   .
  4. Pull the window run channel (1) from the door window reveal molding.

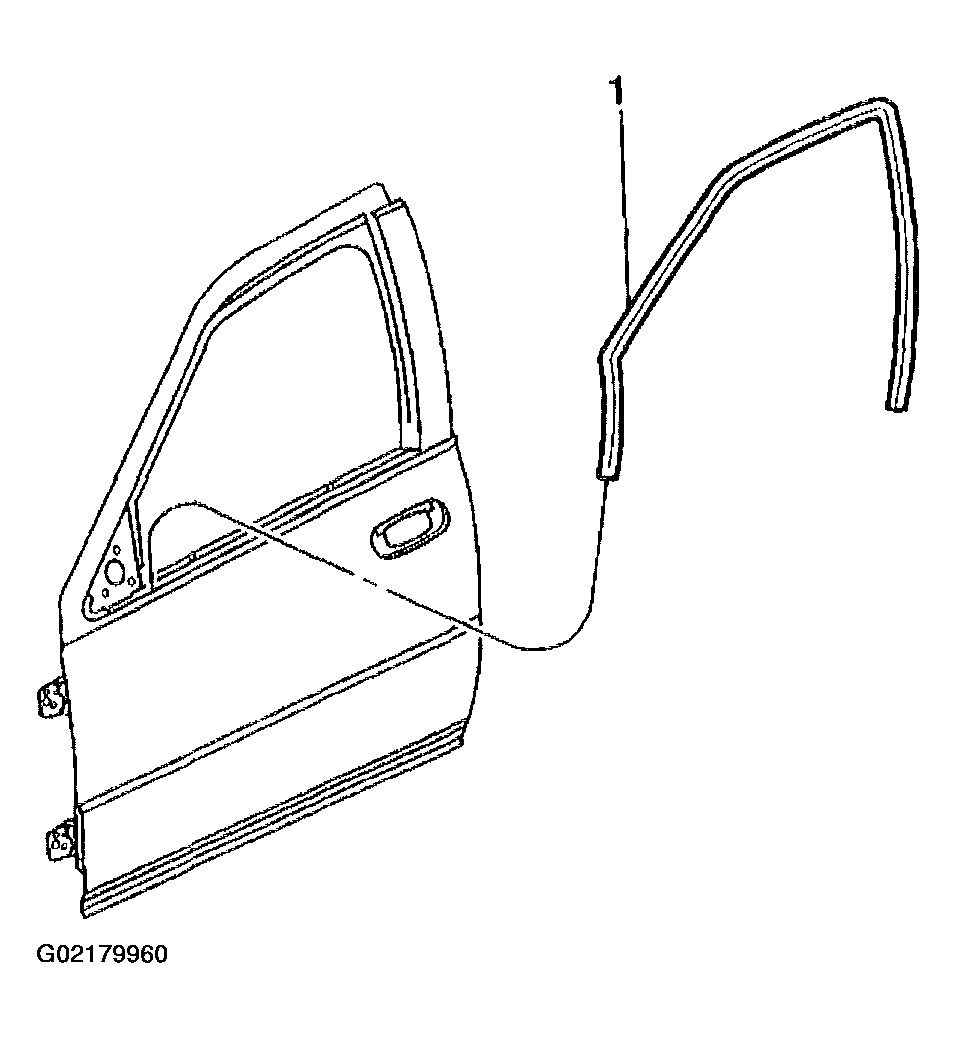

    Fig 1: Removing Window Run Channel From Door Window Reveal Molding
    G02179960Courtesy of GENERAL MOTORS CORP.
