Power Window Schematics (Driver Power Window)

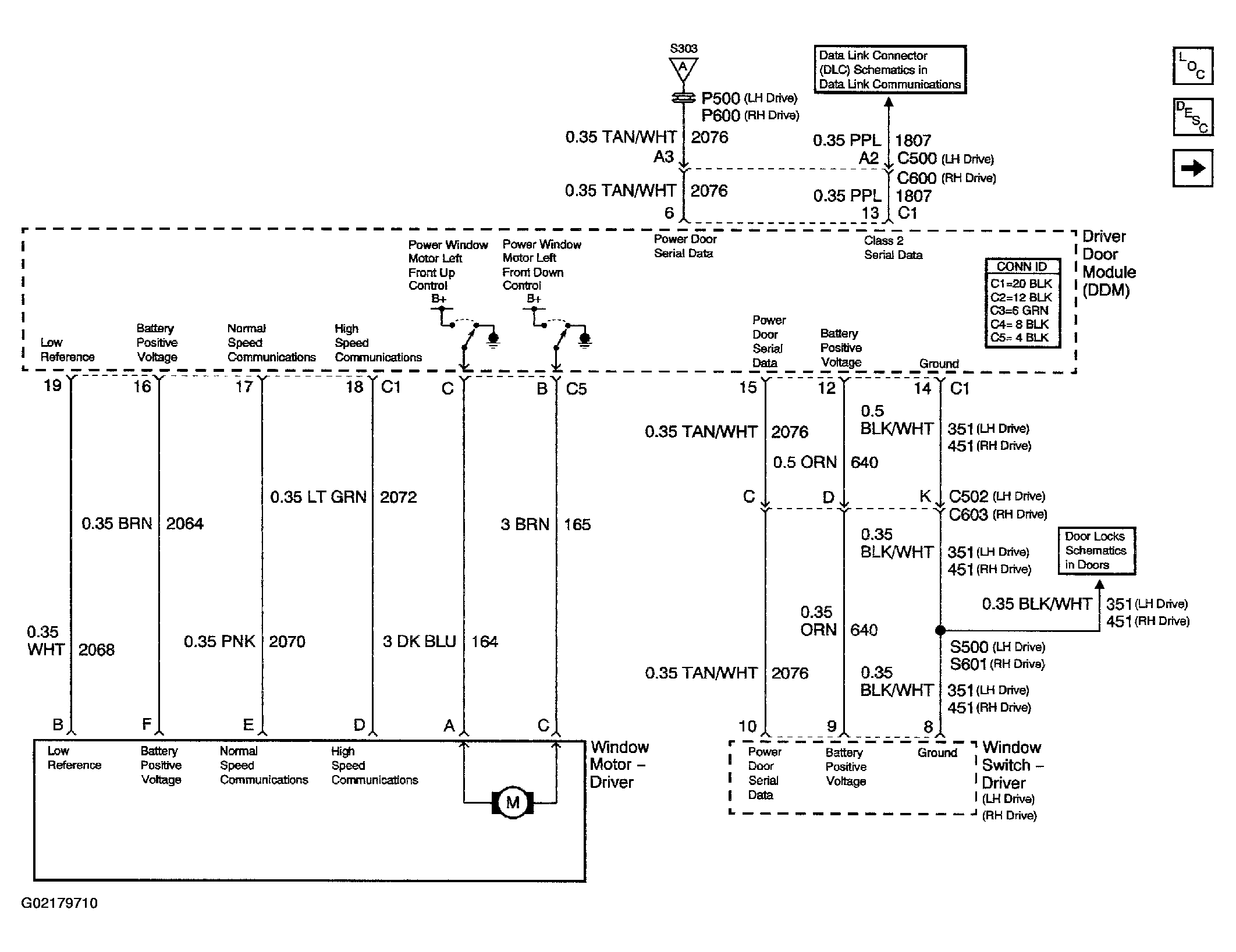

Fig 1: Power Window Schematics (Driver Power Window)
G02179710Courtesy of GENERAL MOTORS CORP.
