Inside Rearview Mirror
Inside Rearview Mirror

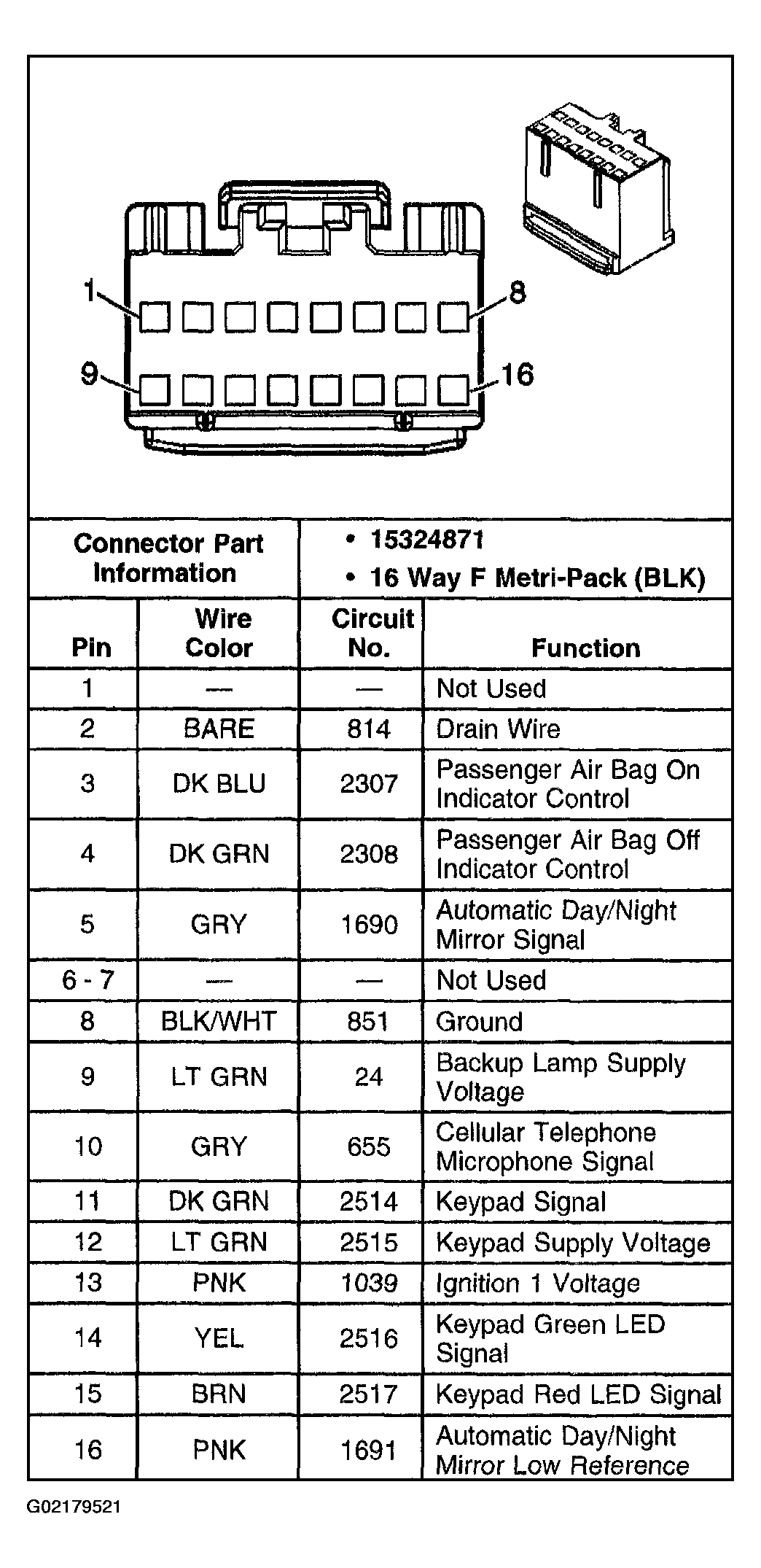

Fig 1: Inside Rearview Mirror Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
