Installation Procedure

  1. Align the side reveal molding retainer clips to the windshield pillar flange.
  2. Press down on the side reveal molding (1) to engage the retainer clips.

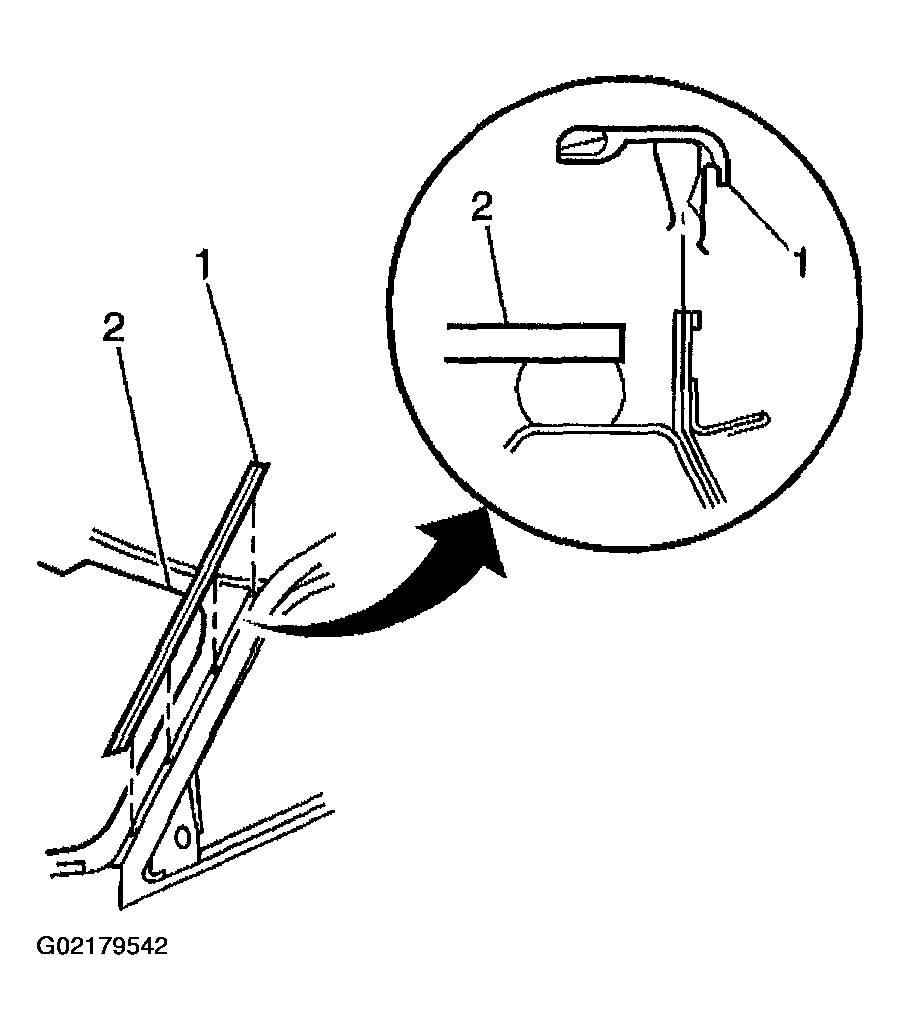

    Fig 1: Installing Side Reveal Molding To Windshield
    G02179542Courtesy of GENERAL MOTORS CORP.
