Stoplamp Switch C2
Stoplamp Switch C2

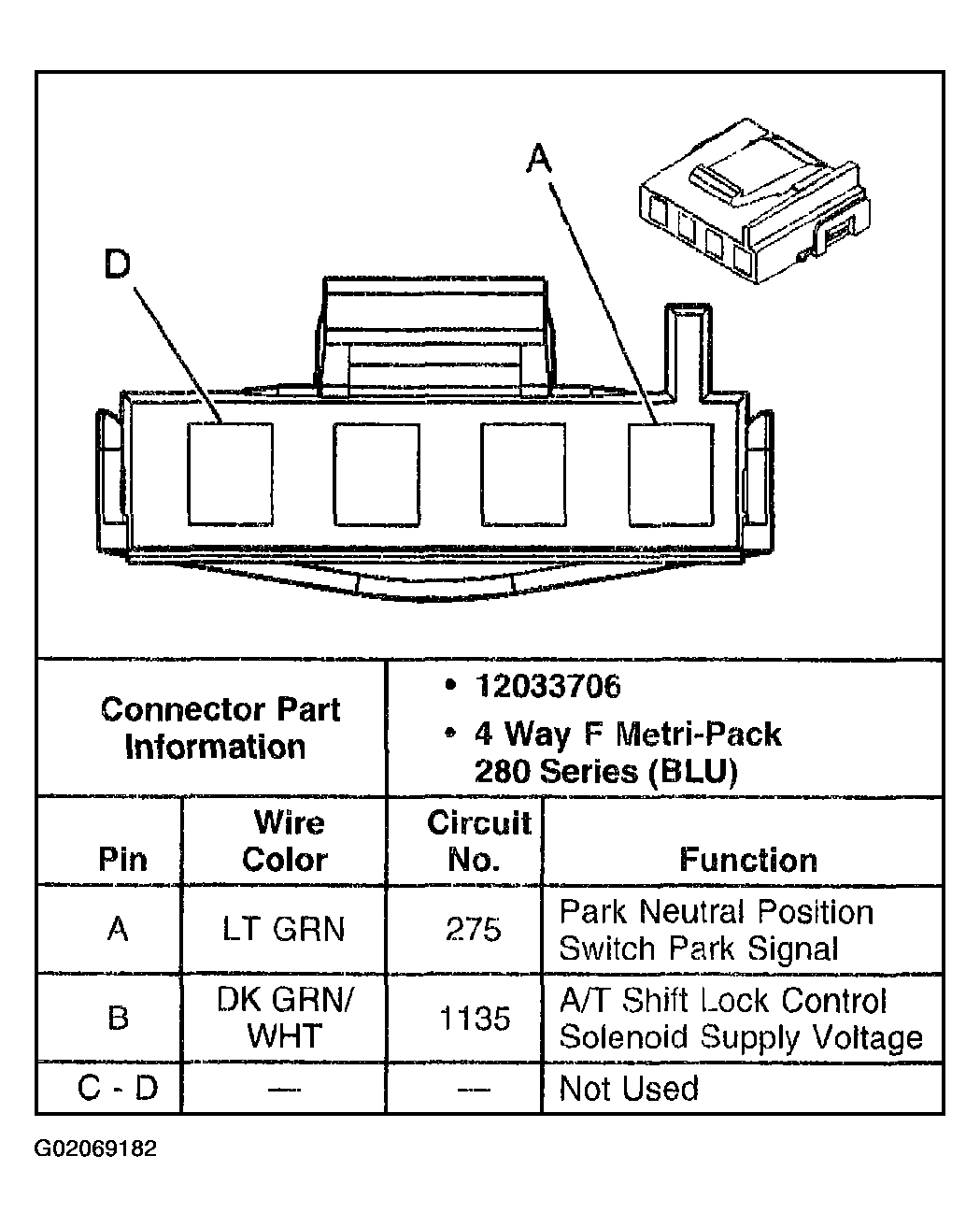

Fig 1: Identifying Stoplamp Switch C2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
