Audio Amplifier Connector End View C2

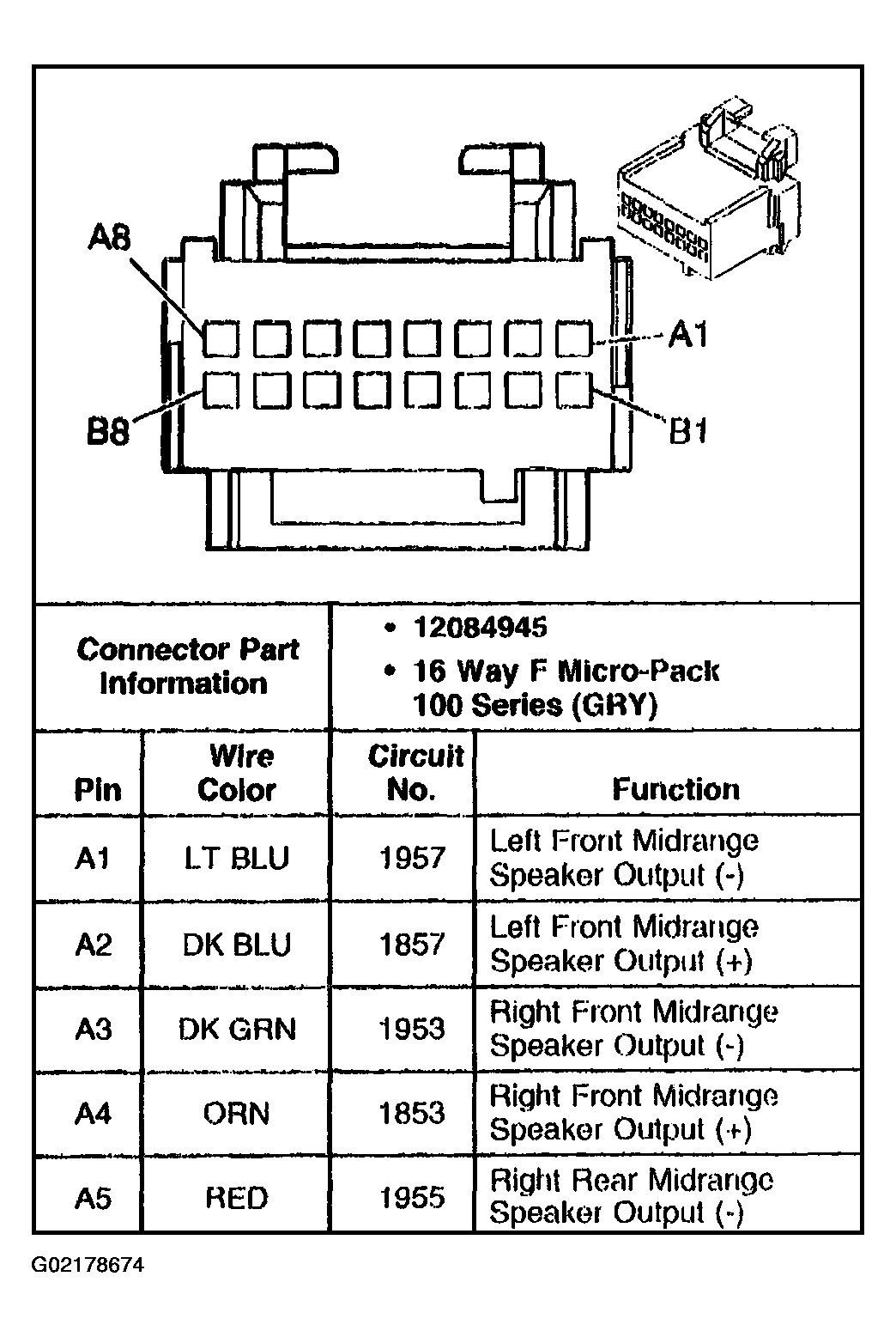

Fig 1: Audio Amplifier (UX8) C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

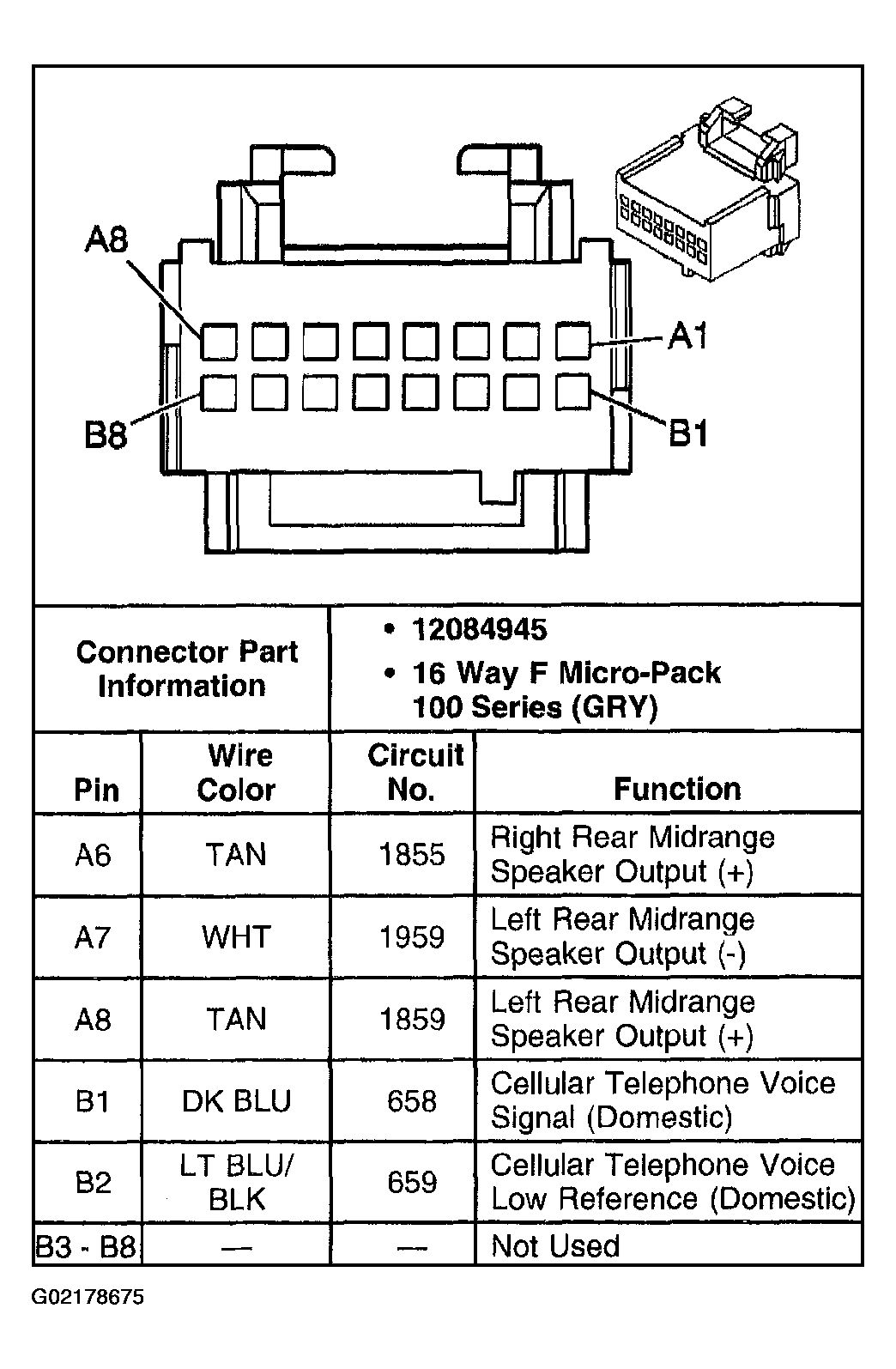

Fig 2: Audio Amplifier (UX8) C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

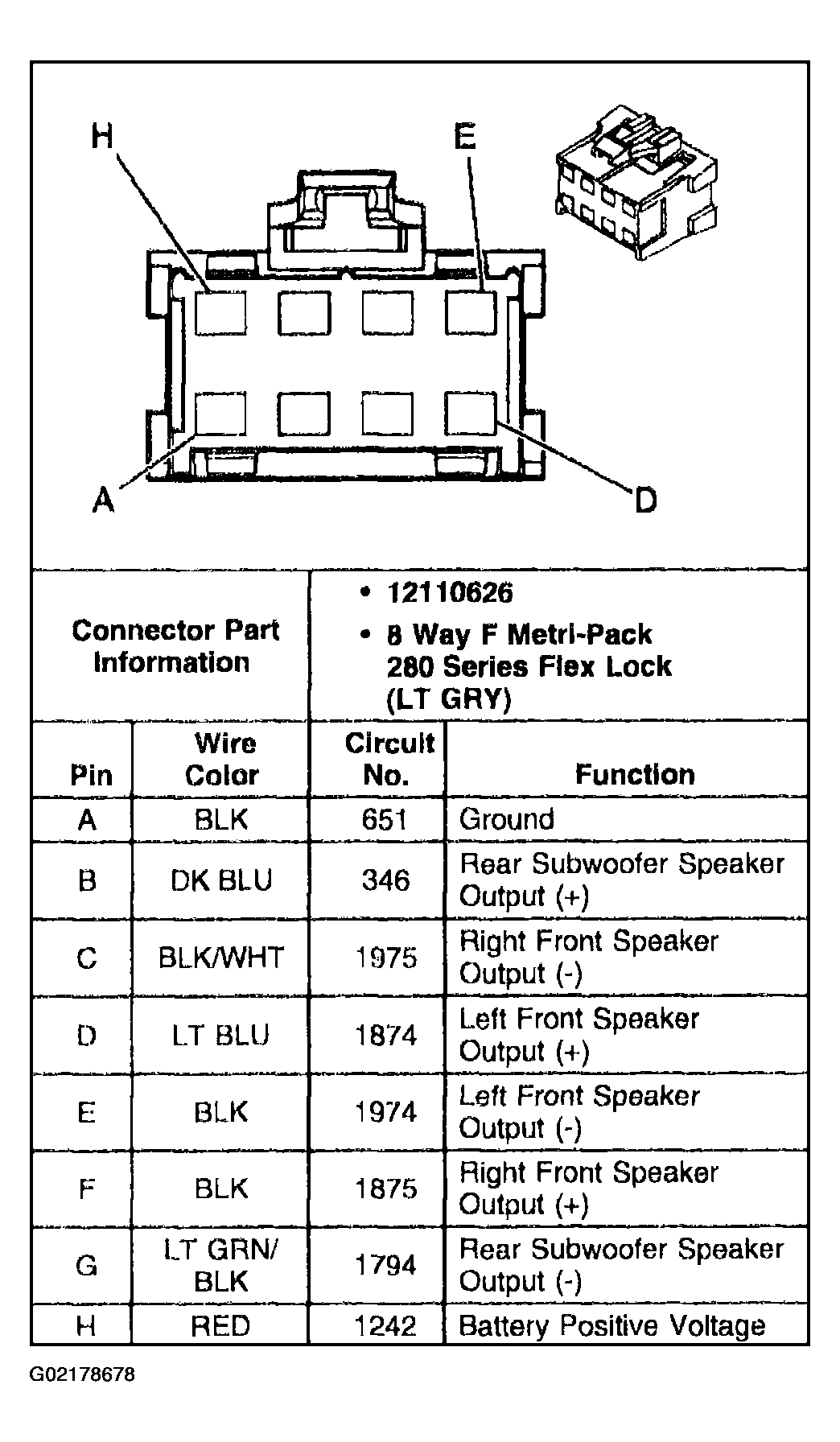

Fig 1: Audio Amplifier (UX9) C2

Courtesy of GENERAL MOTORS CORP.
