Home › Cadillac › 2003 › Seville STS › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › Automatic Level Control (ALC) Compressor Connector End View

Automatic Level Control (ALC) Compressor Connector End View

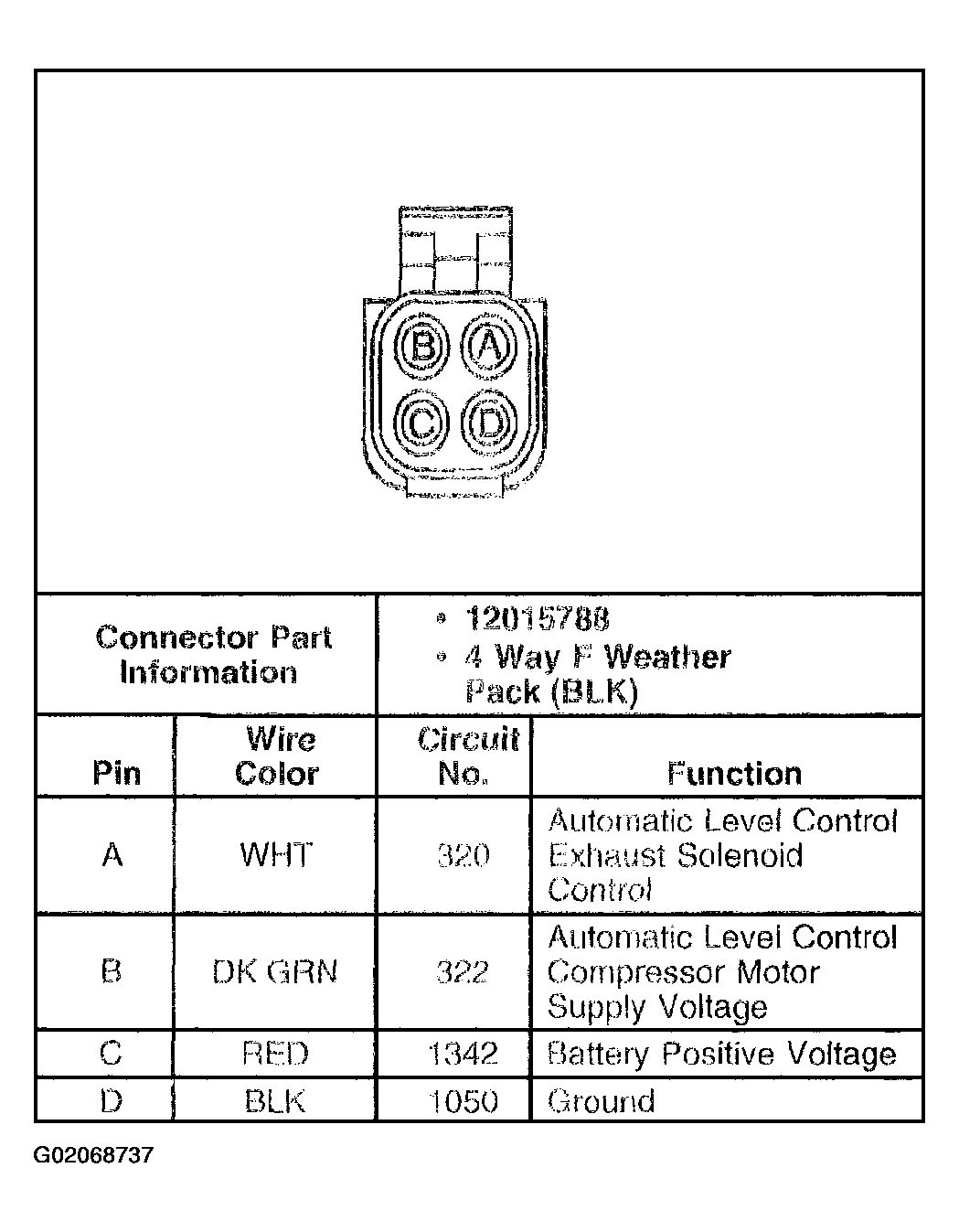

Fig 1: Automatic Level Control (ALC) Compressor
G02068737Courtesy of GENERAL MOTORS CORP.
