Cellular Telephone Module Connector End View

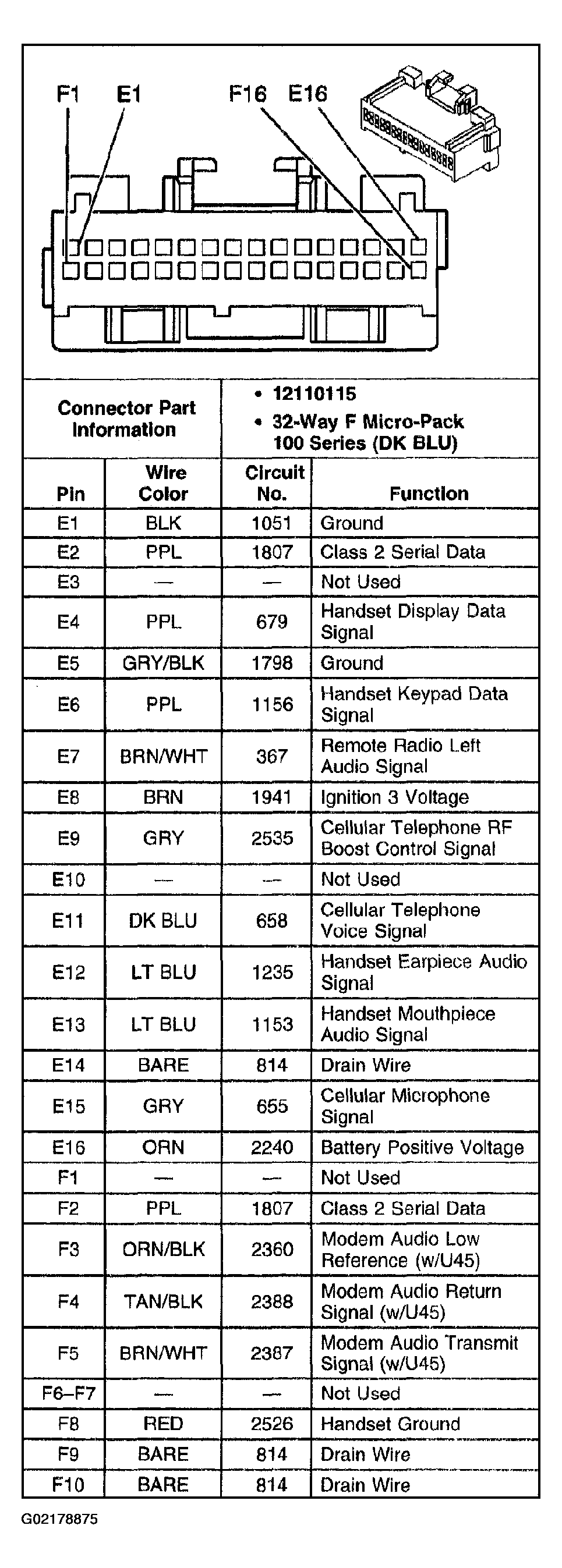

Fig 1: Cellular Telephone Module (Late Production) (1 Of 2)
G02178875Courtesy of GENERAL MOTORS CORP.

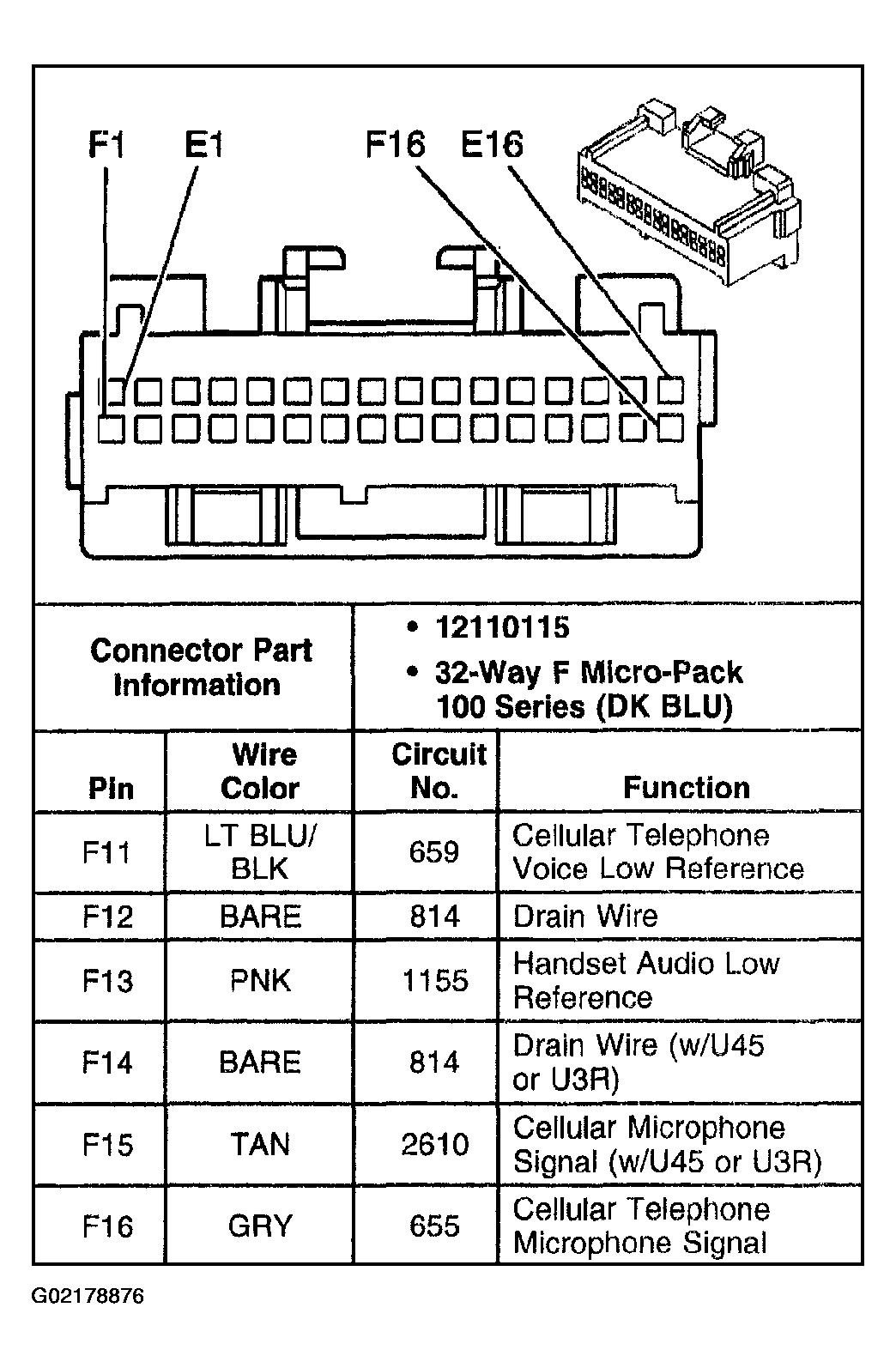

Fig 2: Cellular Telephone Module (Late Production) (2 Of 2)
G02178876Courtesy of GENERAL MOTORS CORP.

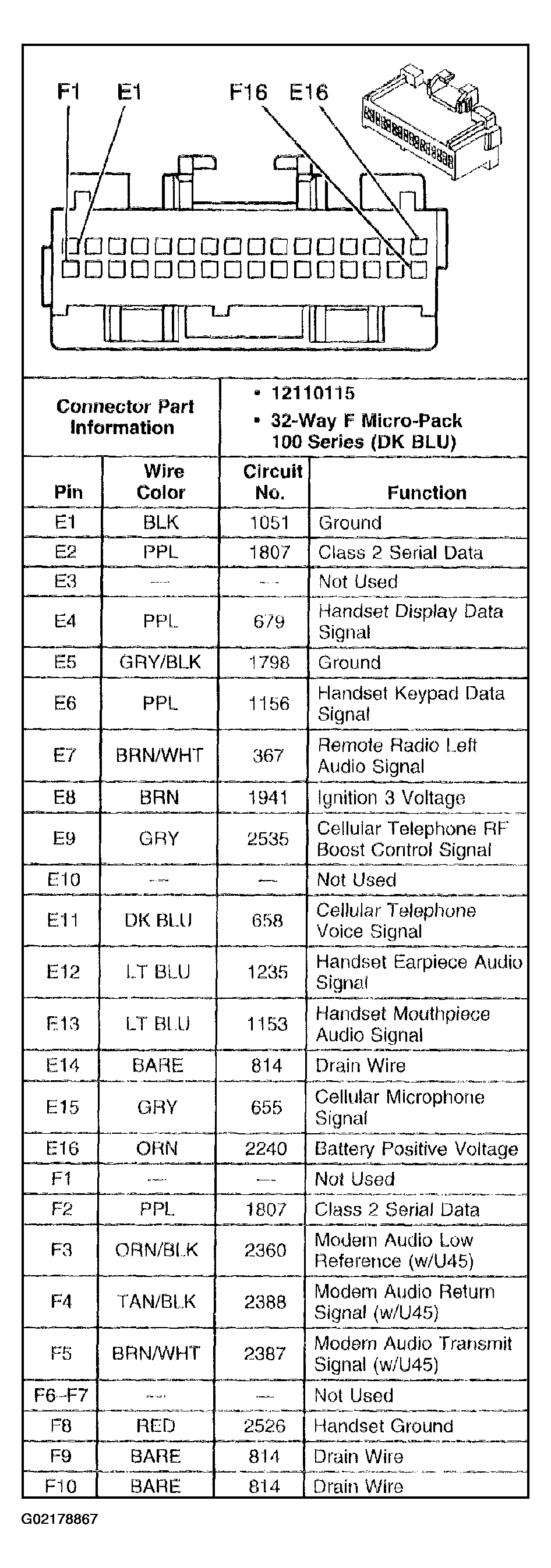

Fig 1: Cellular Telephone Module (Early Production) (1 Of 2)
G02178867Courtesy of GENERAL MOTORS CORP.

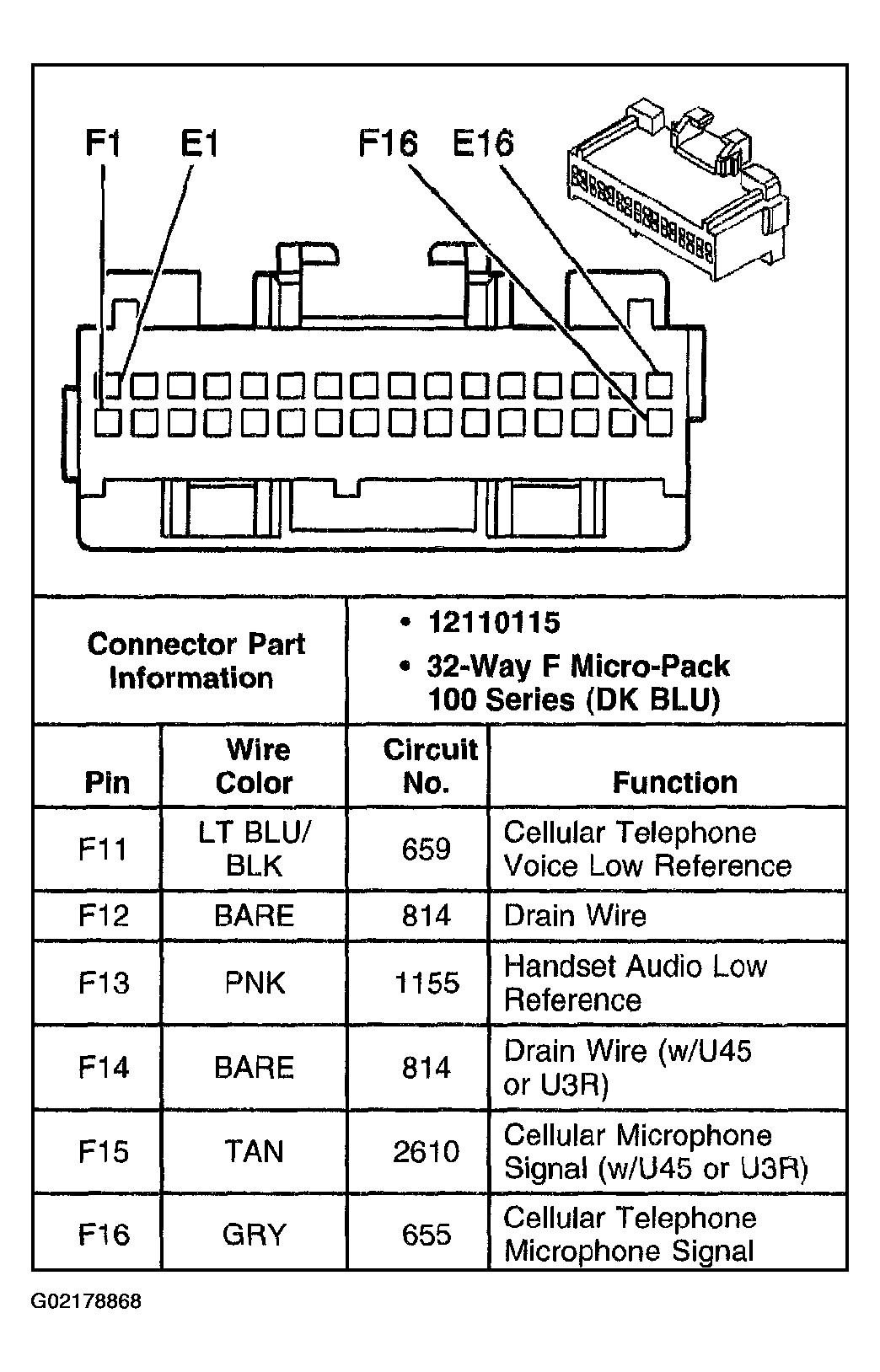

Fig 2: Cellular Telephone Module (Early Production) (2 Of 2)
G02178868Courtesy of GENERAL MOTORS CORP.
