Dash Integration Module (DIM) Connector End View C1

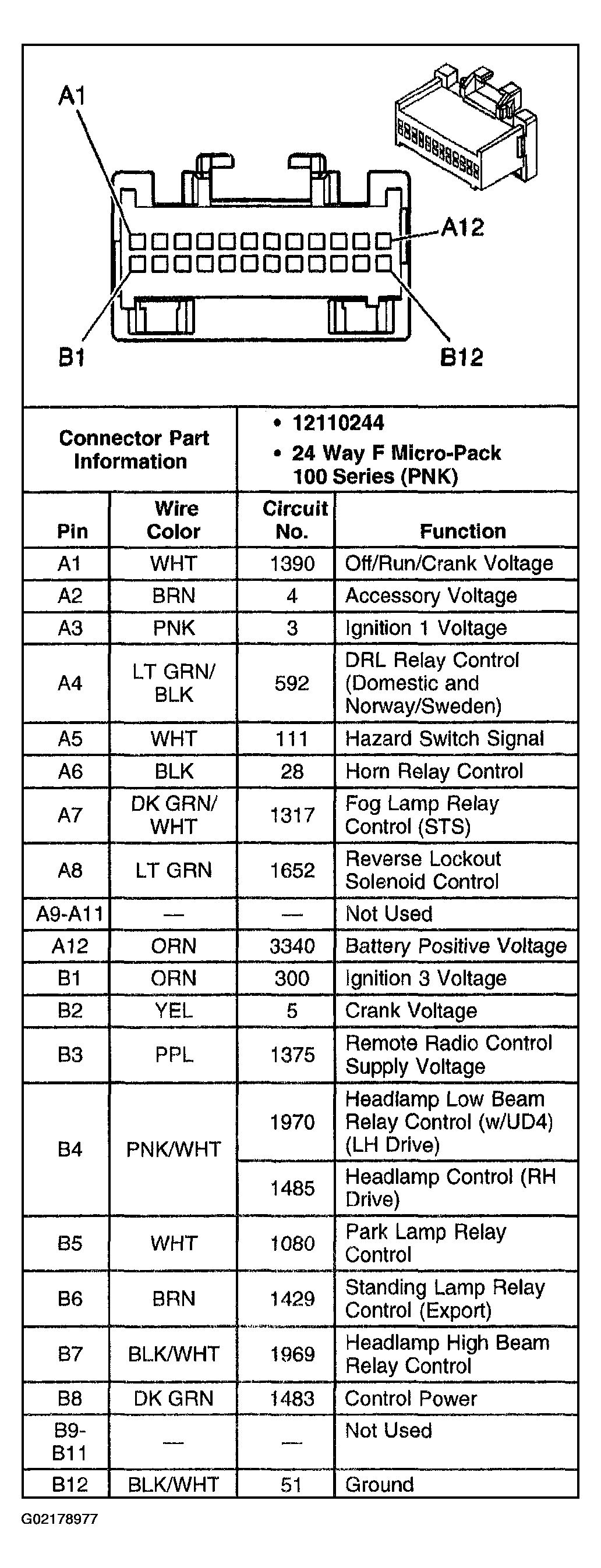

Fig 1: Dash Integration Module (DIM) C1
G02178977Courtesy of GENERAL MOTORS CORP.
