Dash Integration Module (DIM) Connector End View C3

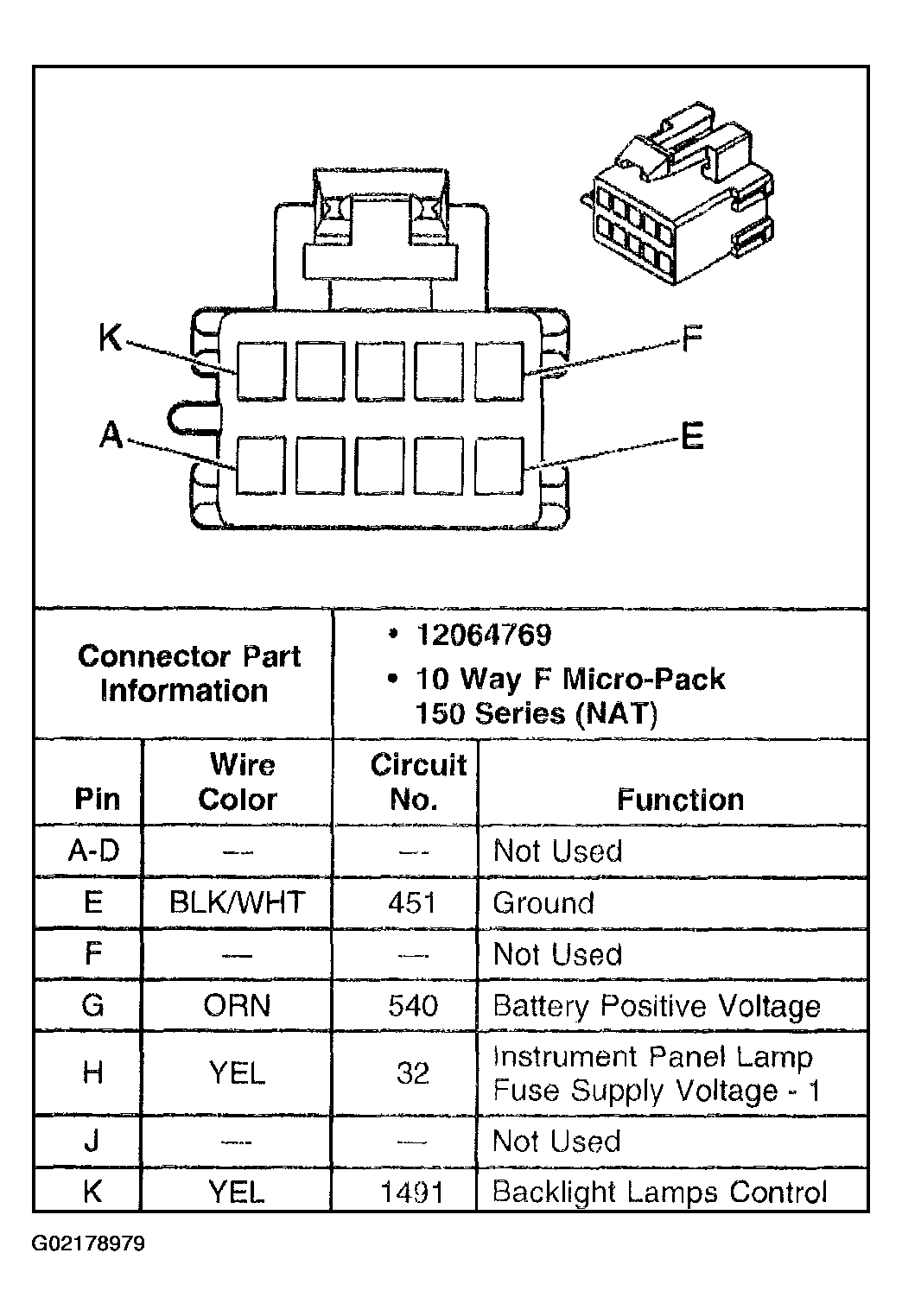

Fig 1: Dash Integration Module (DIM) C3
G02178979Courtesy of GENERAL MOTORS CORP.
