Driver Door Module (DDM) Connector End View C4

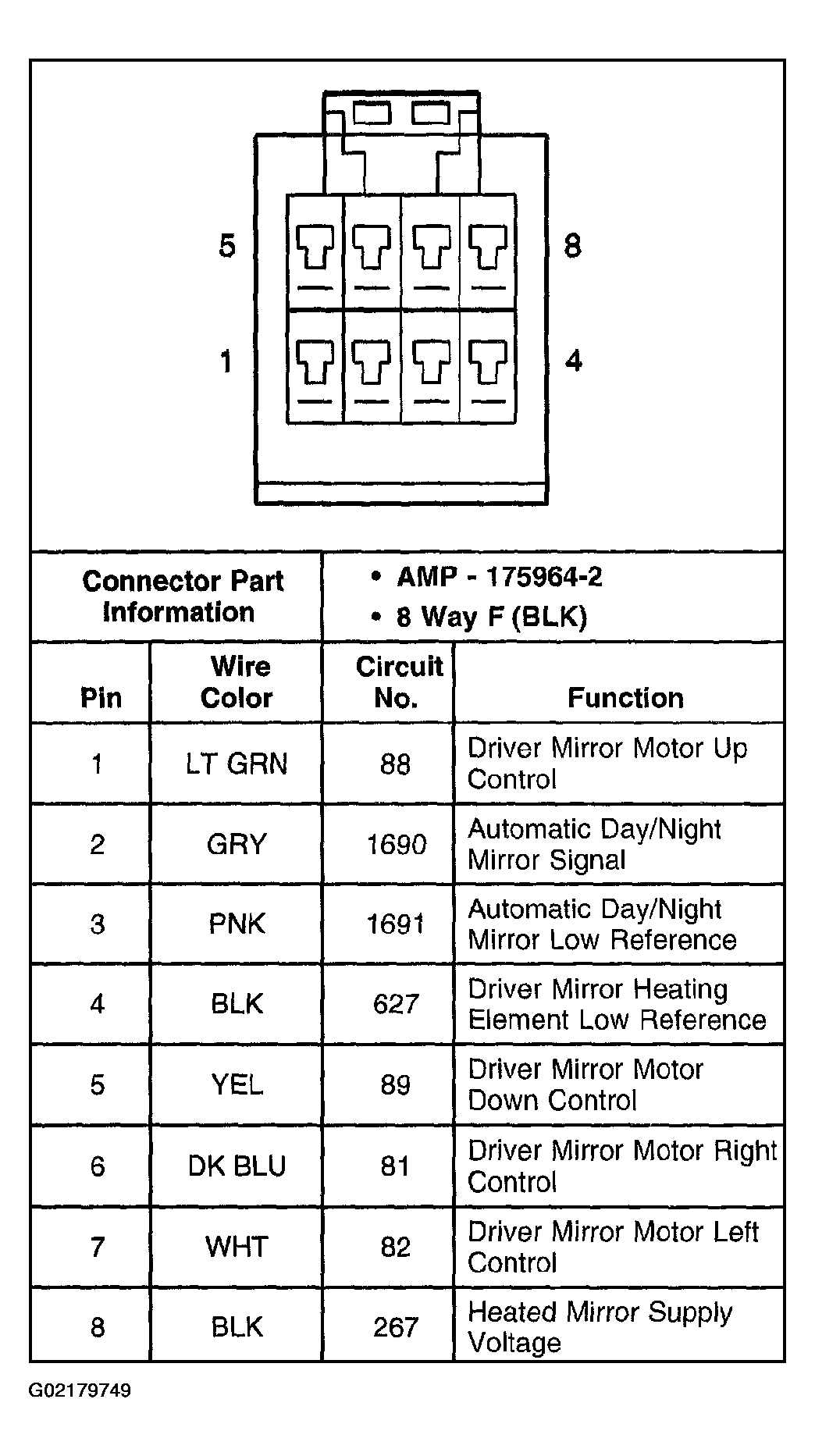

Fig 1: Driver Door Module (DDM) C4
G02179749Courtesy of GENERAL MOTORS CORP.
