Electronic Suspension Control (ESC) Module Connector End View C2

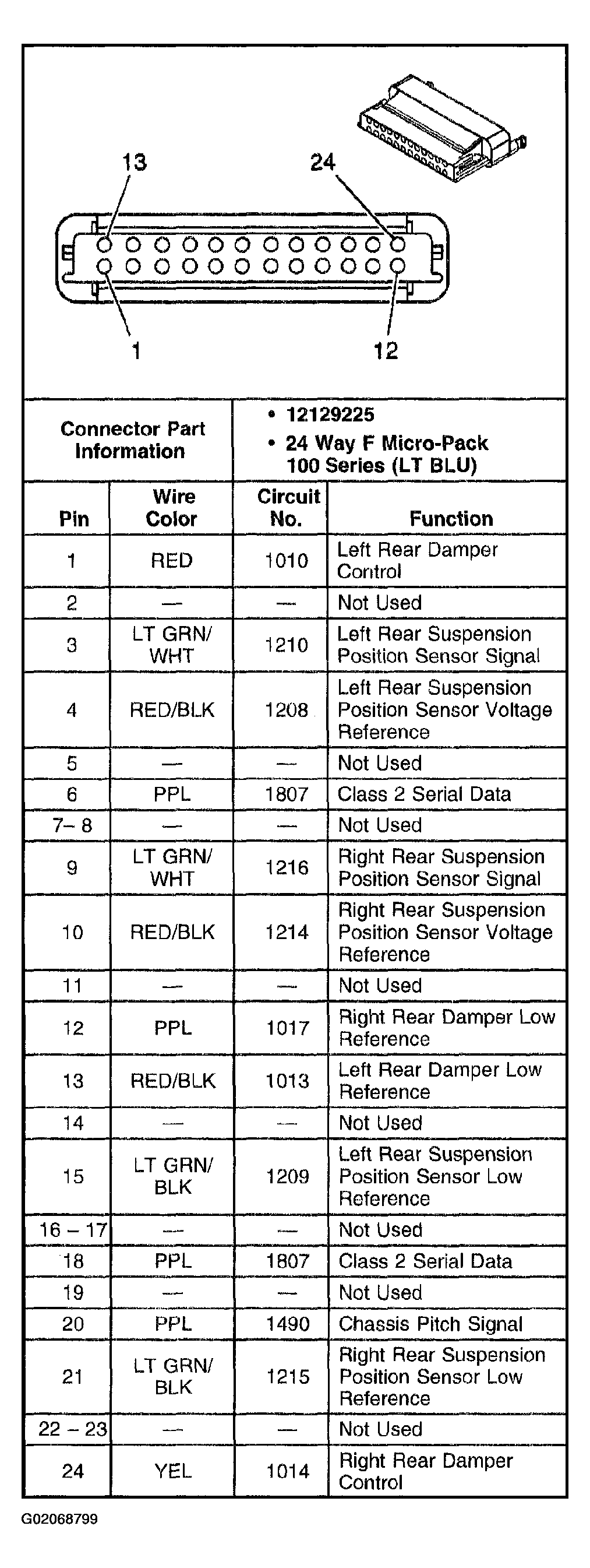

Fig 1: Electronic Suspension Control (ESC) Module C2
G02068799Courtesy of GENERAL MOTORS CORP.
