Front Passenger Door Module (FPDM) Connector End View C1

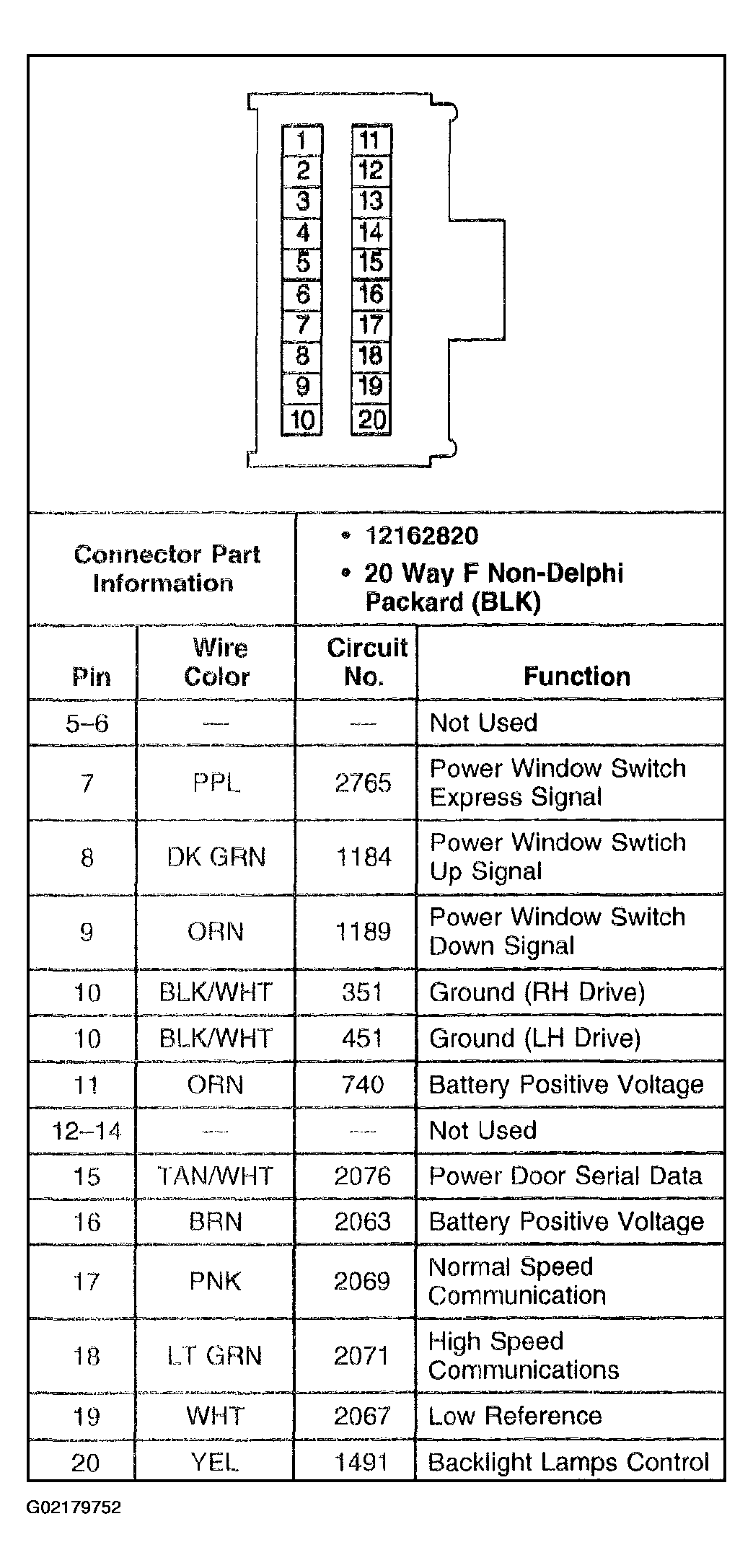

Fig 1: Front Passenger Door Module (FPDM) C1 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Front Passenger Door Module (FPDM) C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
