Overhead Console Connector End View

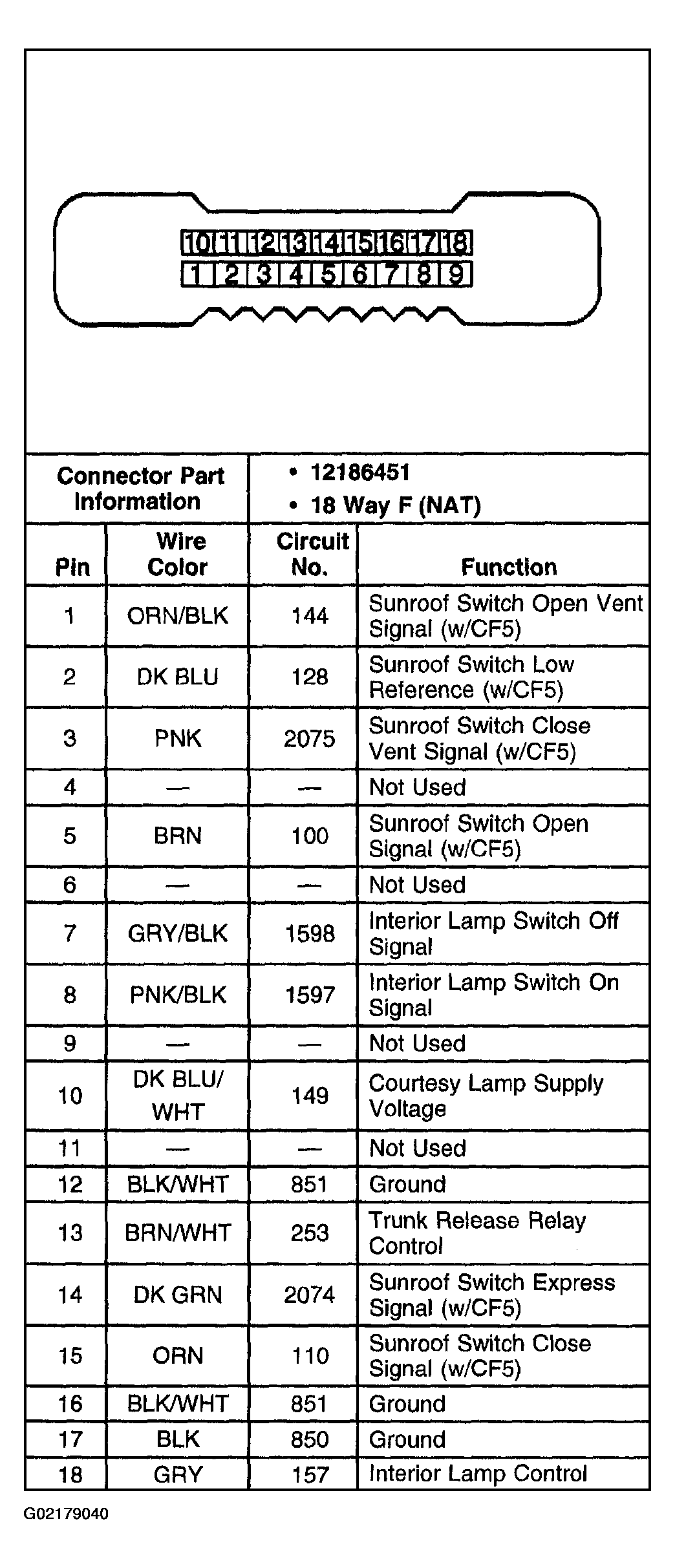

Fig 1: Overhead Console
G02179040Courtesy of GENERAL MOTORS CORP.
