Rear Integration Module (RIM) Connector End View C1

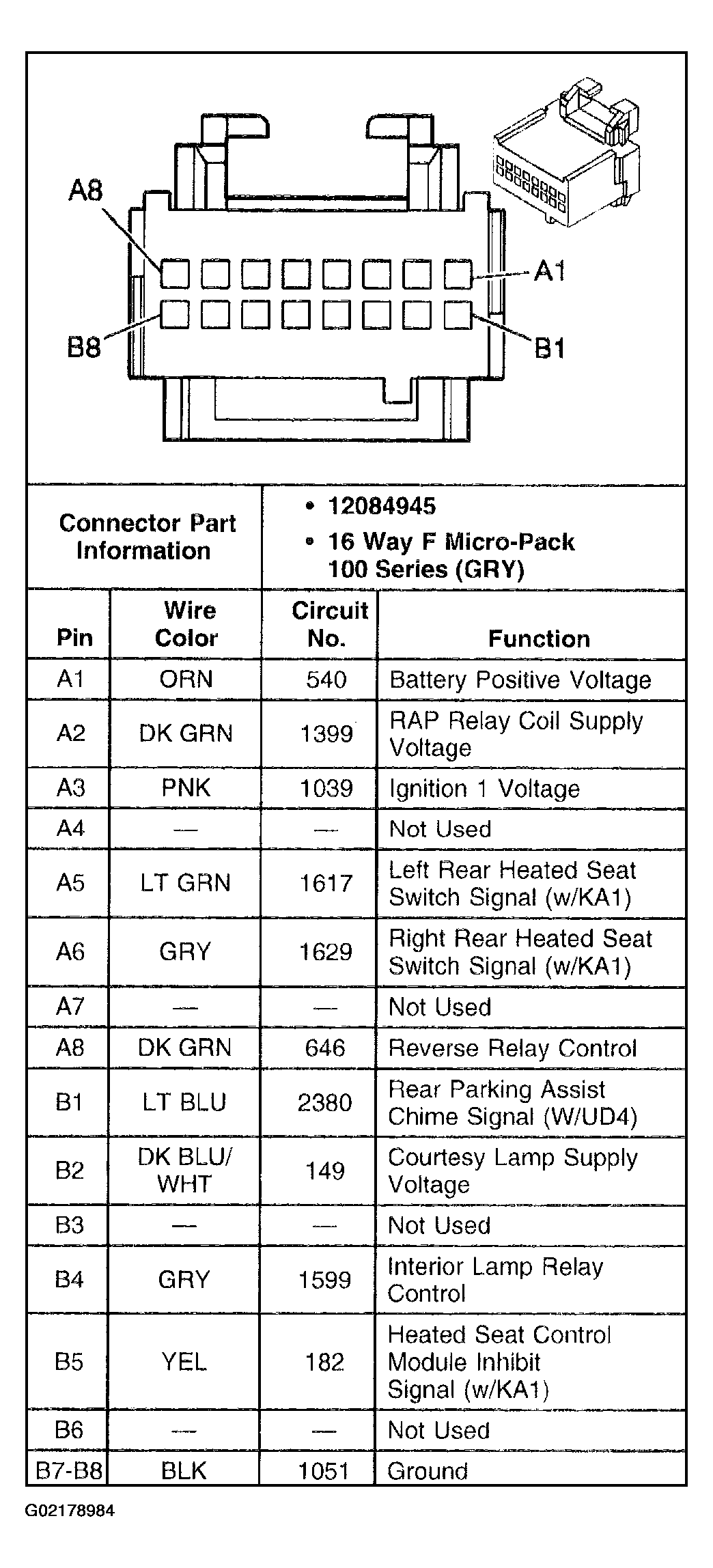

Fig 1: Rear Integration Module (RIM) C1
G02178984Courtesy of GENERAL MOTORS CORP.
