Seat Horizontal Position Sensor Connector End View - Driver

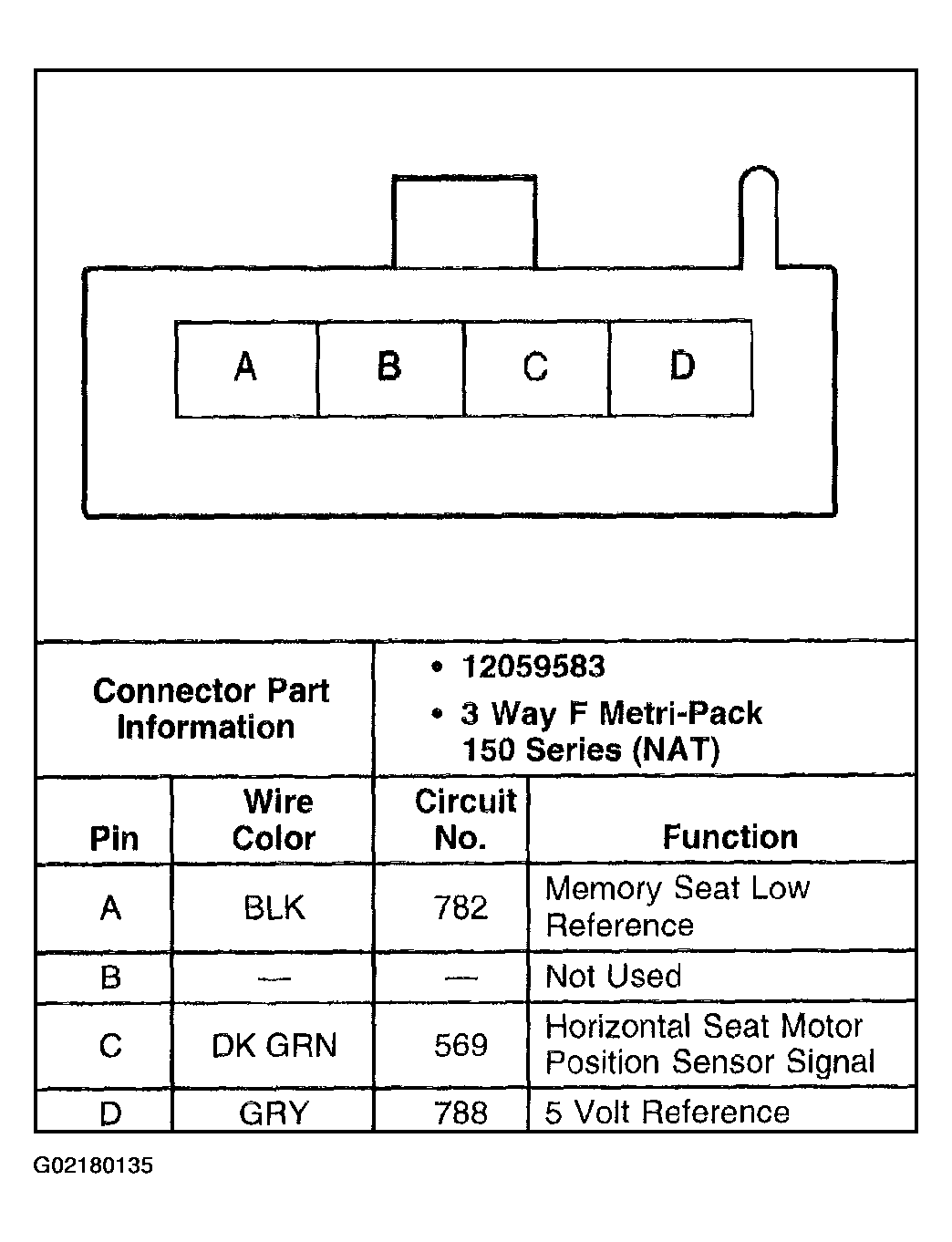

Fig 1: Seat Horizontal Position Sensor - Driver
G02180135Courtesy of GENERAL MOTORS CORP.
