Speaker Connector End View - Center Midrange

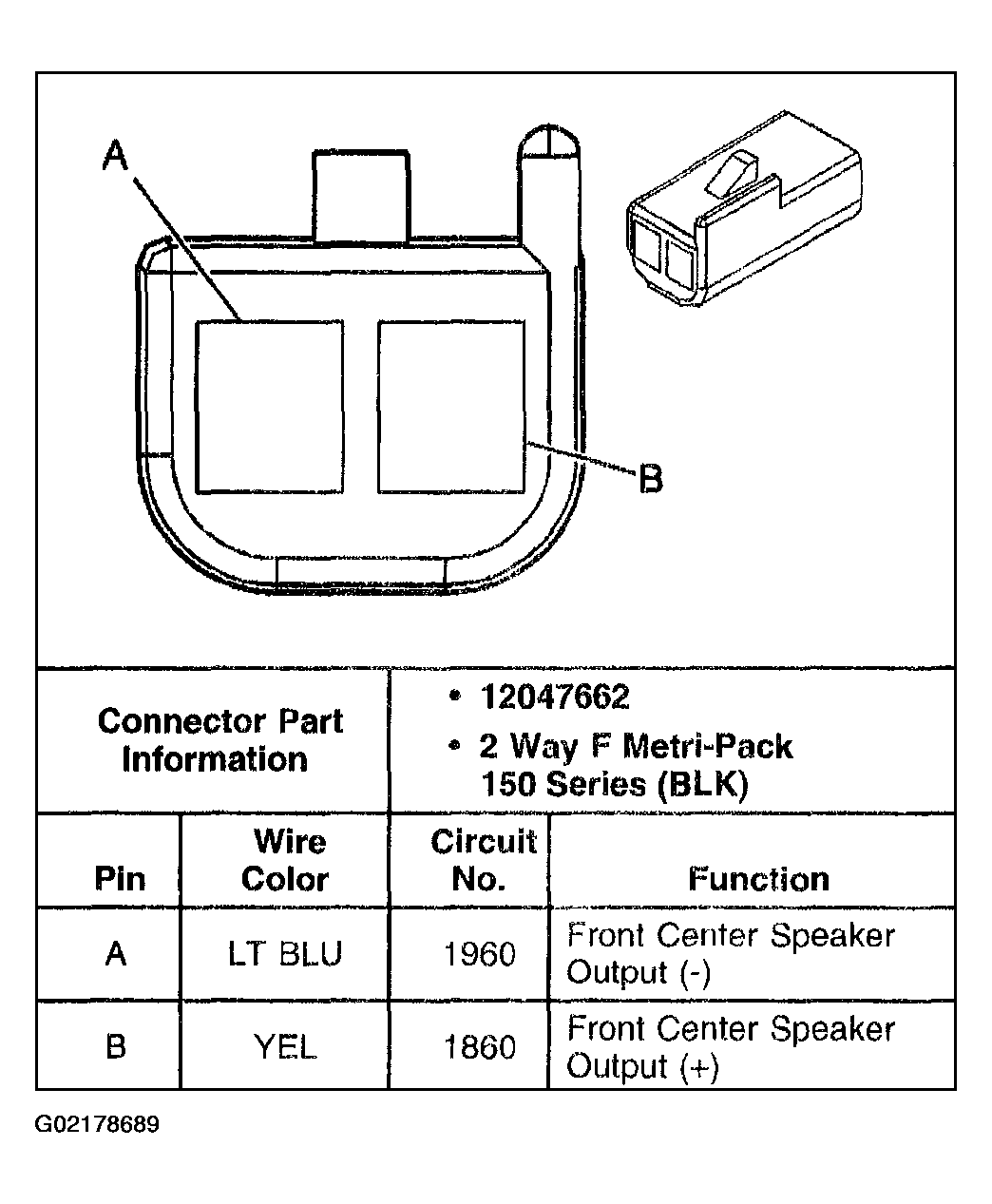

Fig 1: Speaker - Center Midrange (UX8/UX9)
G02178689Courtesy of GENERAL MOTORS CORP.
