Steering Column Module Connector End View C1

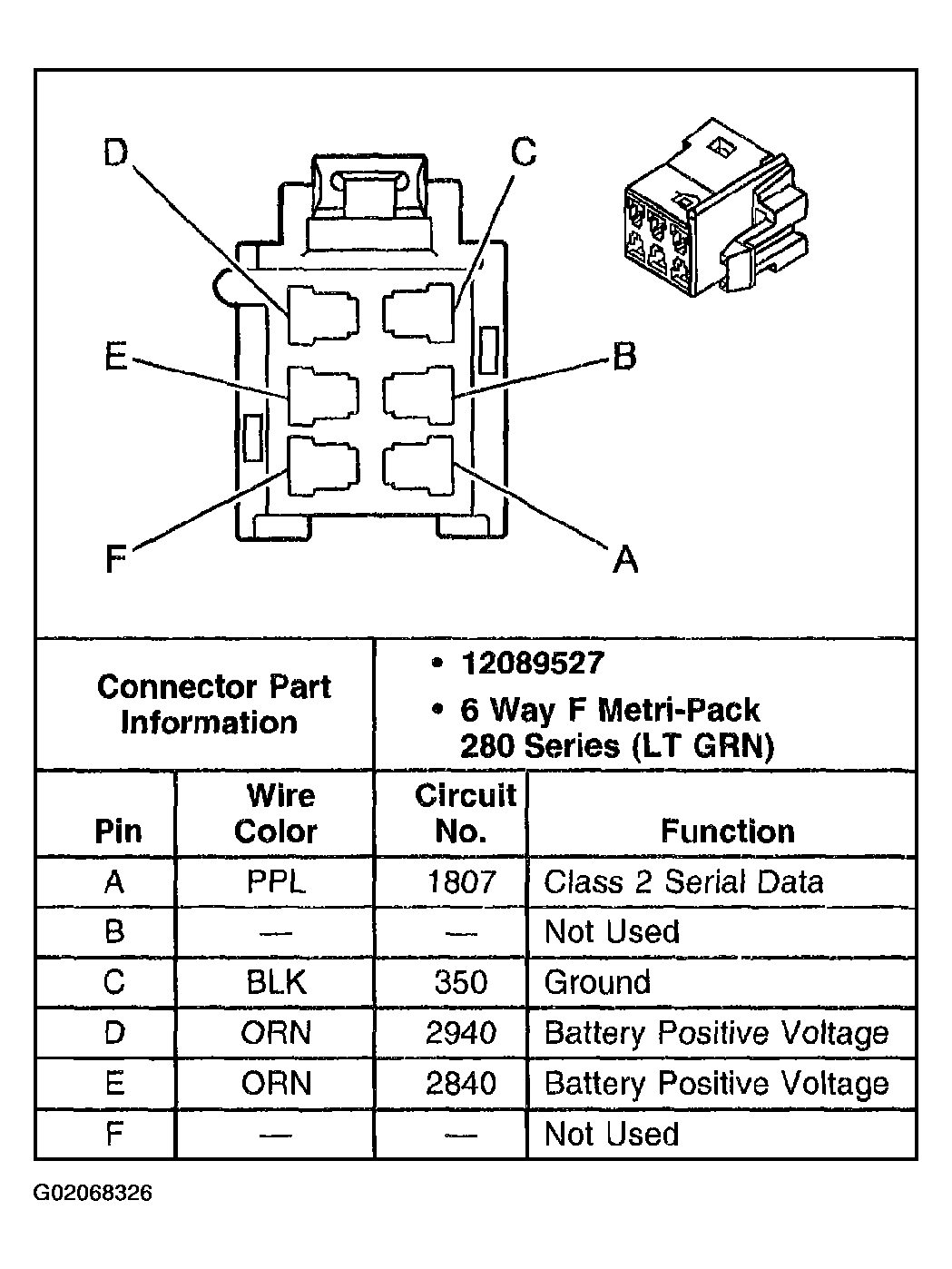

Fig 1: Steering Column Module C1
G02068326Courtesy of GENERAL MOTORS CORP.
