Steering Column Module Connector End View C4

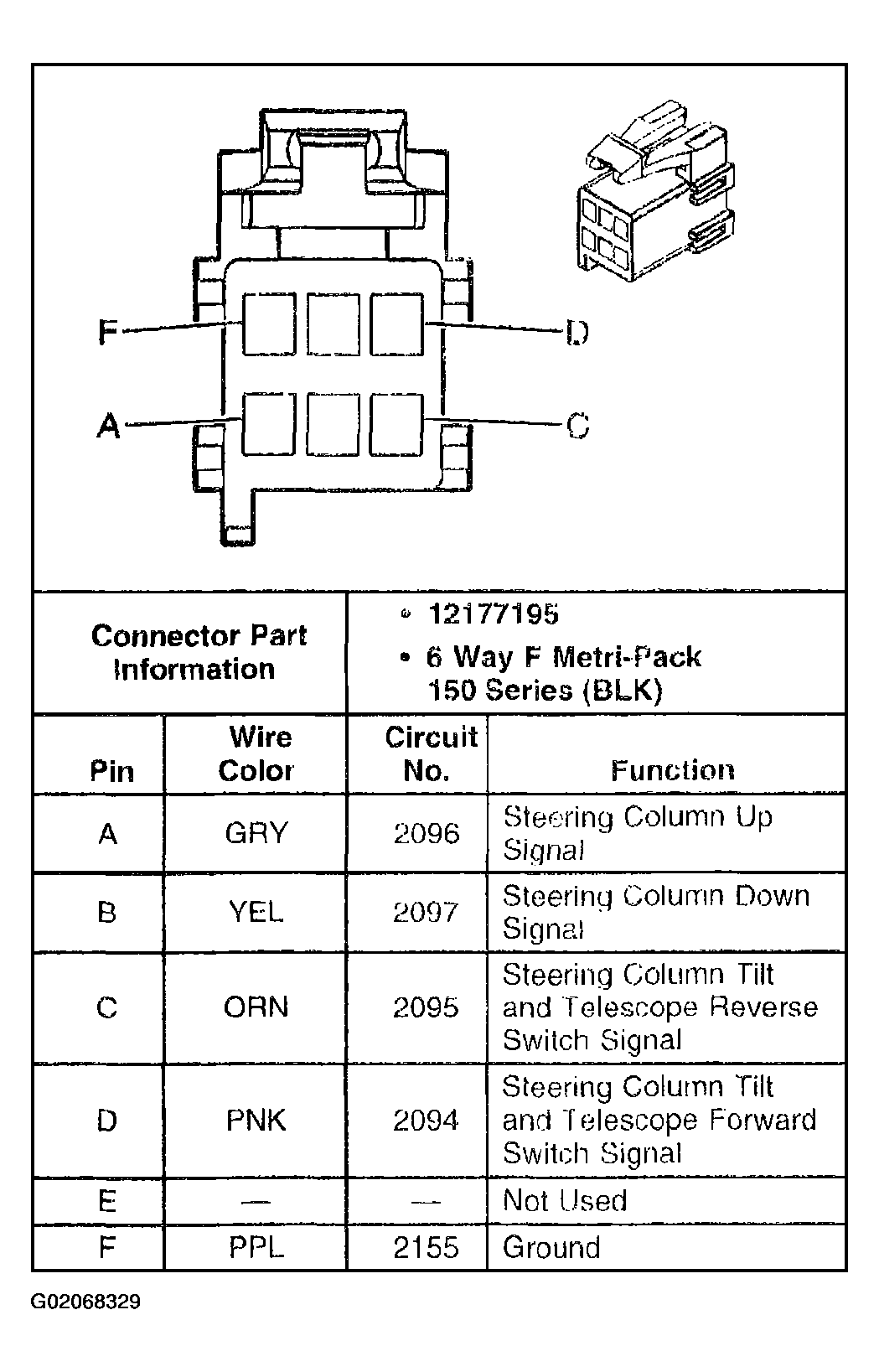

Fig 1: Steering Column Module C4
G02068329Courtesy of GENERAL MOTORS CORP.
