Theft Deterrent Control Module Connector End View

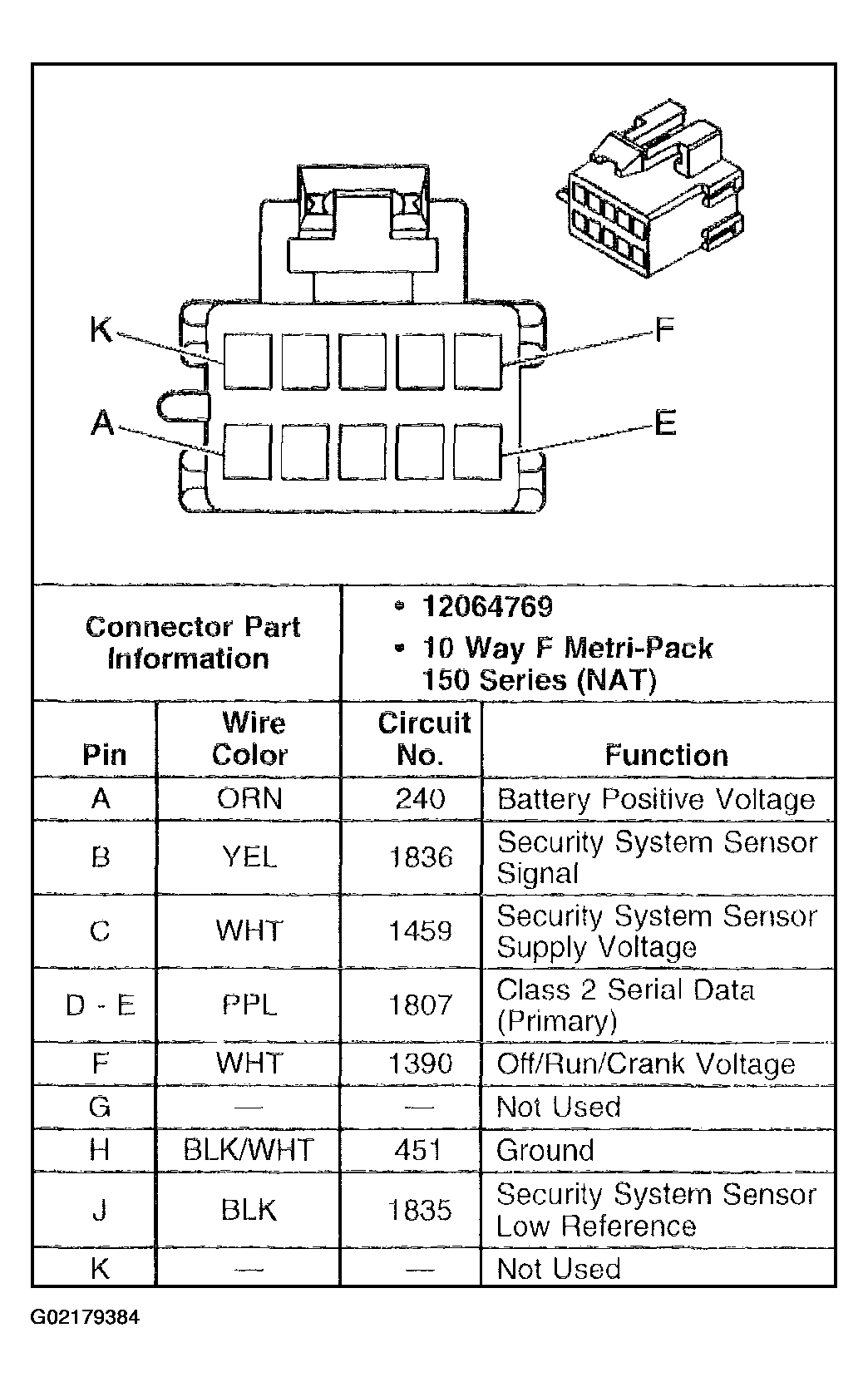

Fig 1: Theft Deterrent Control Module
G02179384Courtesy of GENERAL MOTORS CORP.
