Window Switch Connector End View - Front Passenger

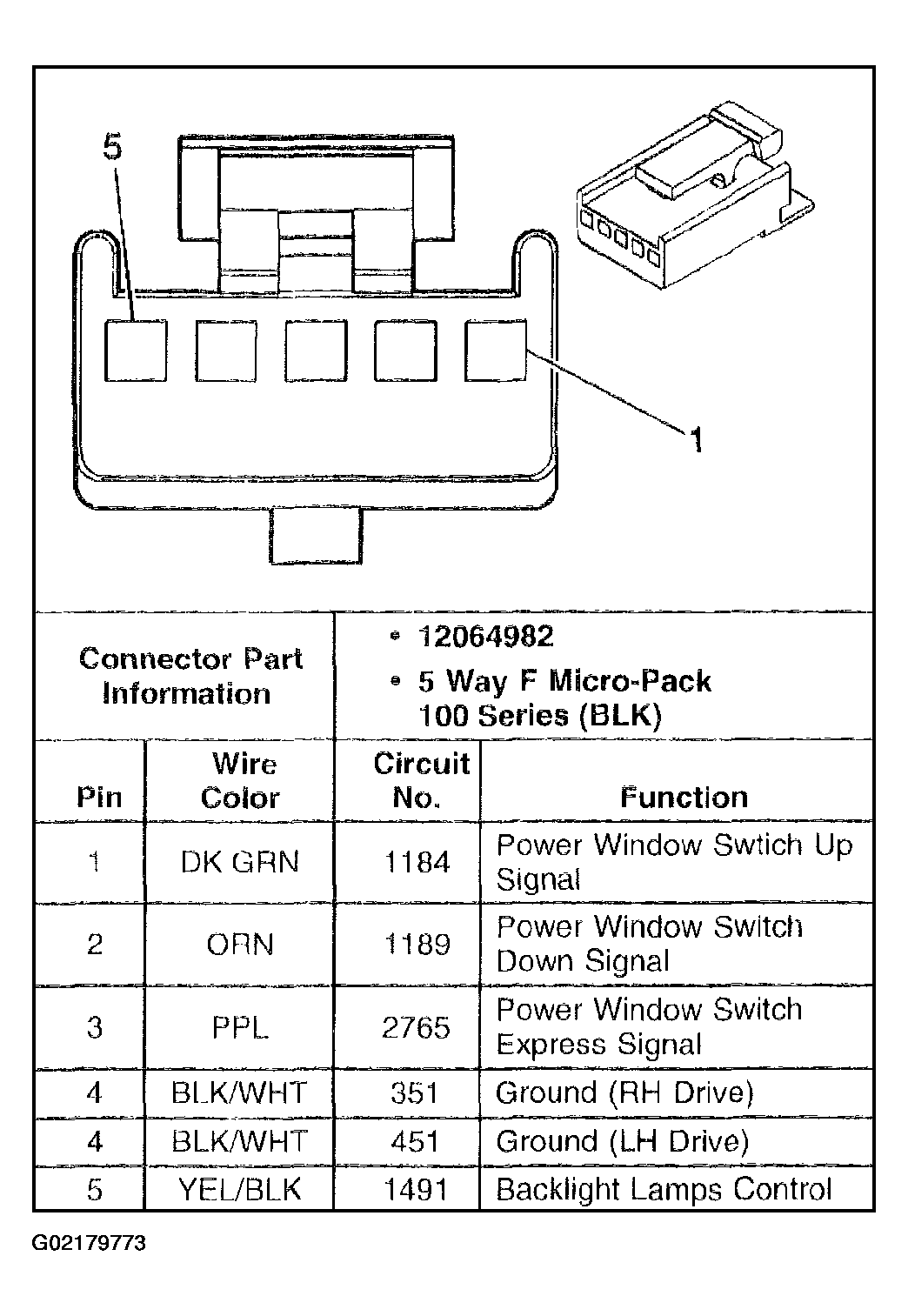

Fig 1: Window Switch - Front Passenger
G02179773Courtesy of GENERAL MOTORS CORP.
