Window Switch Connector End View - LR
Window Switch Connector End View - LR

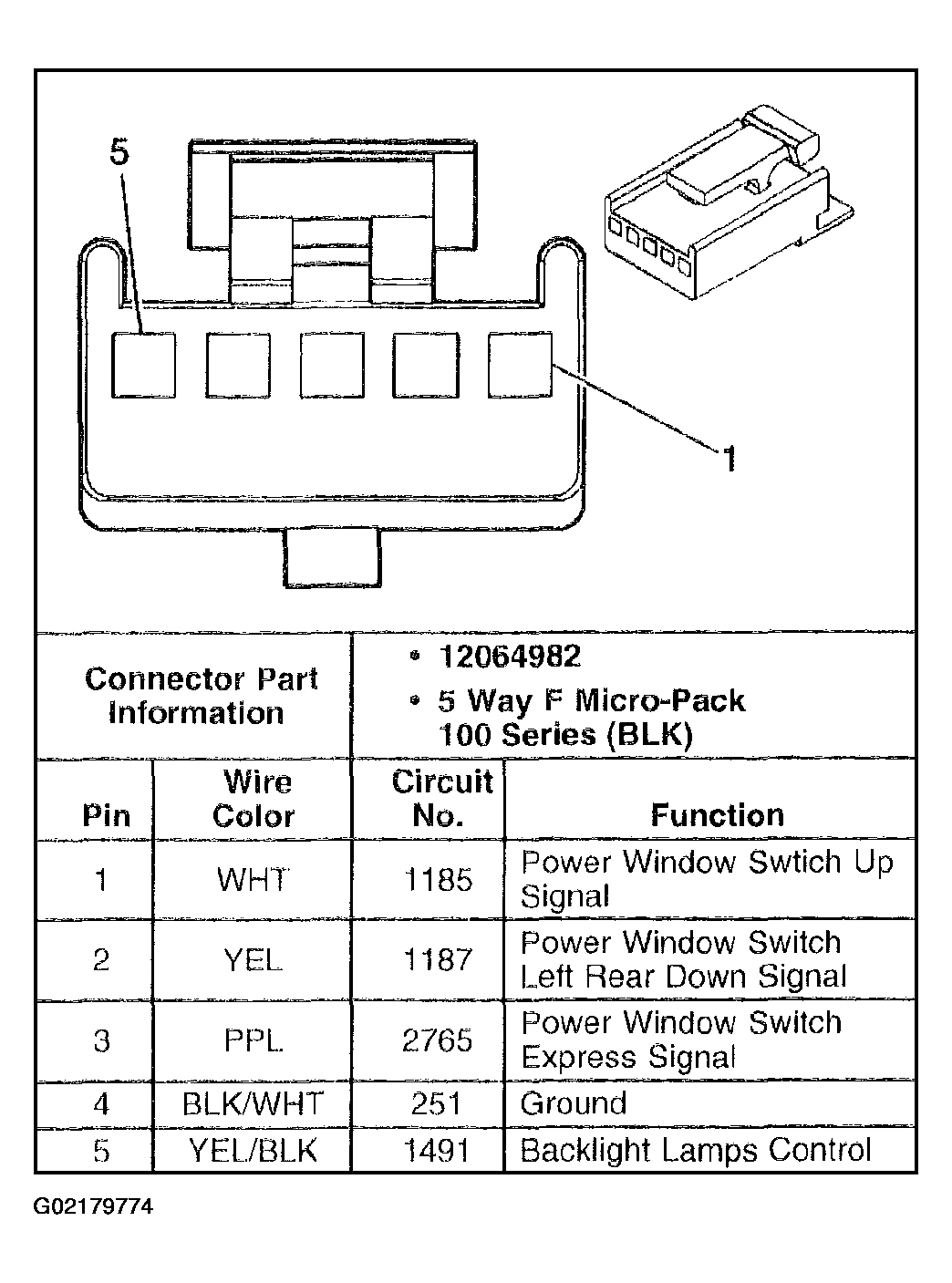

Fig 1: Window Switch - LR
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
