Windshield Washer Fluid Level Switch Connector End View

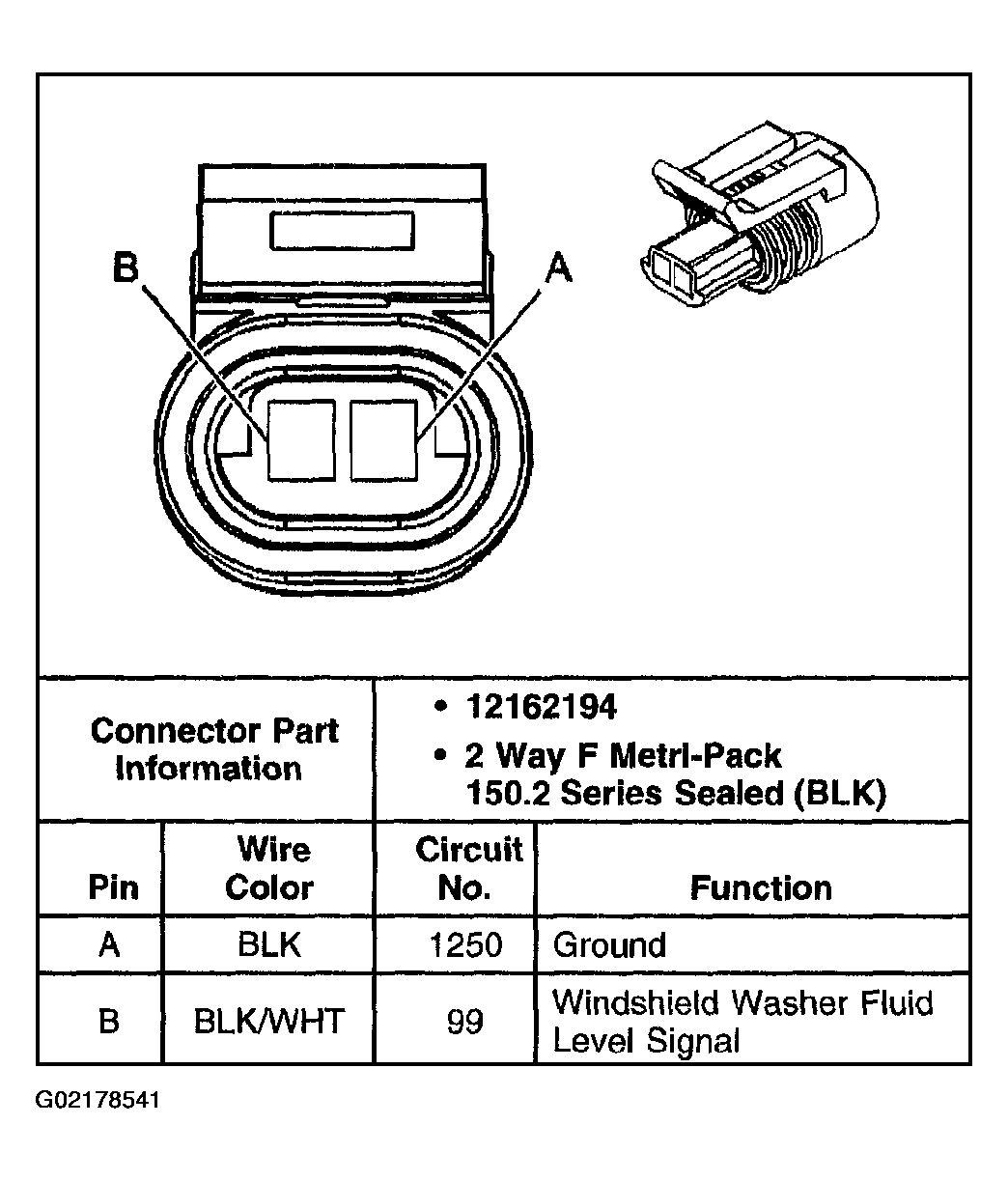

Fig 1: Windshield Washer Fluid Level Switch
G02178541Courtesy of GENERAL MOTORS CORP.
