I/P Compartment Lamp Switch Connector End View

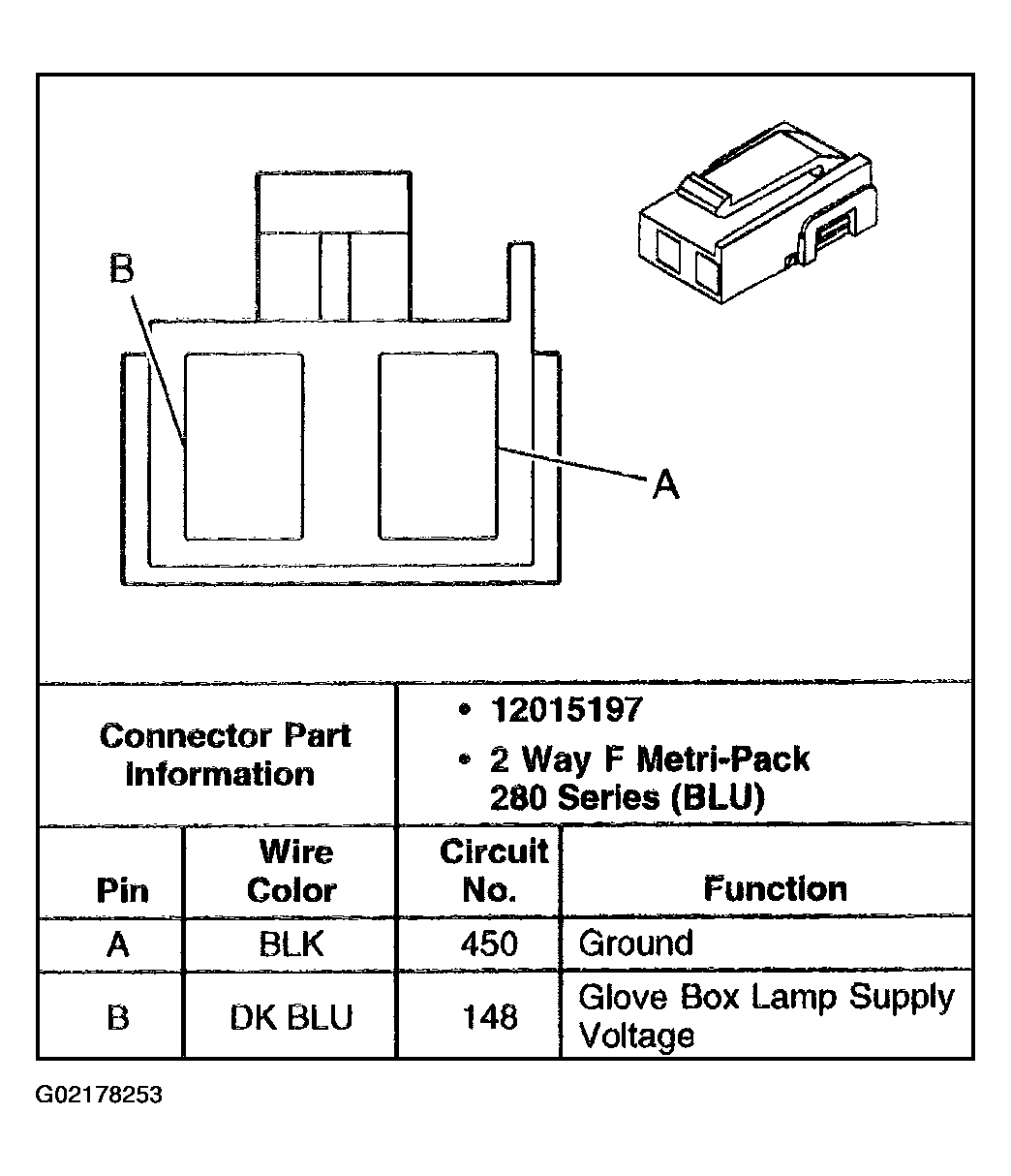

Fig 1: I/P Compartment Lamp Switch
G02178253Courtesy of GENERAL MOTORS CORP.
