Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

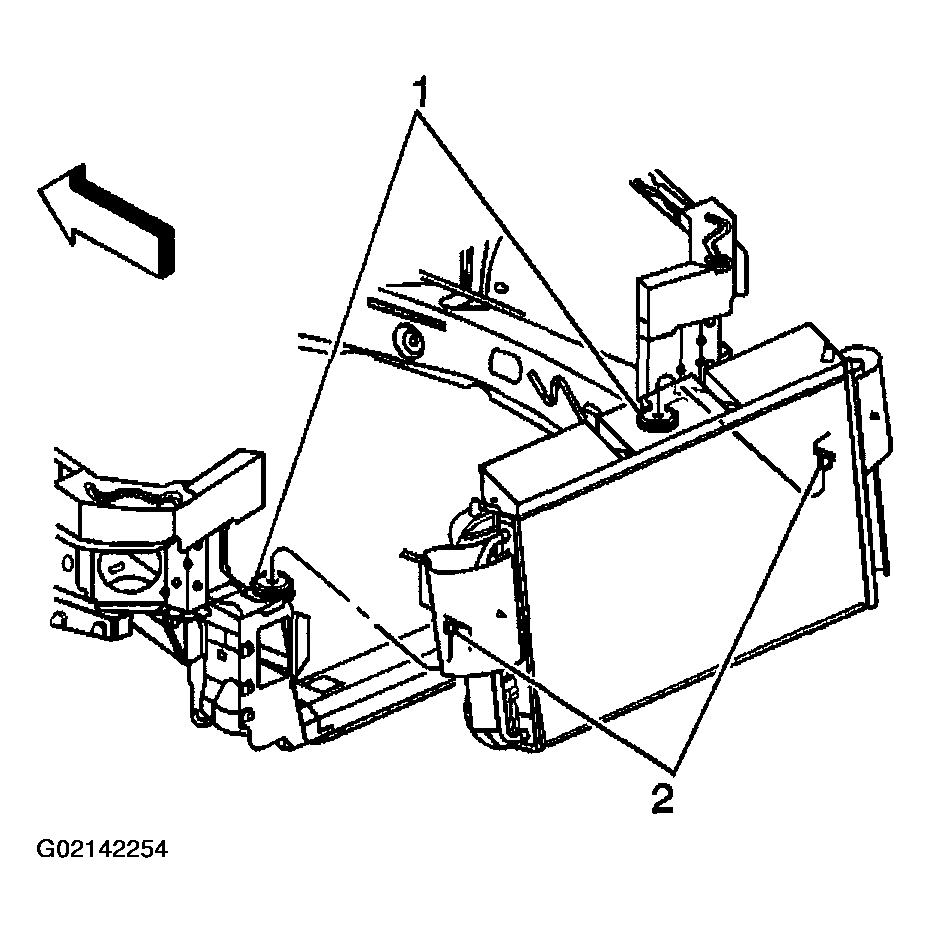

Install the radiator insulators (1) to the frame.
Position the radiator alignment dowels (2) to align with the insulators (1).

Fig 1: Positioning Radiator Alignment Dowels To Align With Insulators
Courtesy of GENERAL MOTORS CORP.

Important: Care should be taken when installing the condenser not to damage the lower attachment points of both the radiator and condenser.

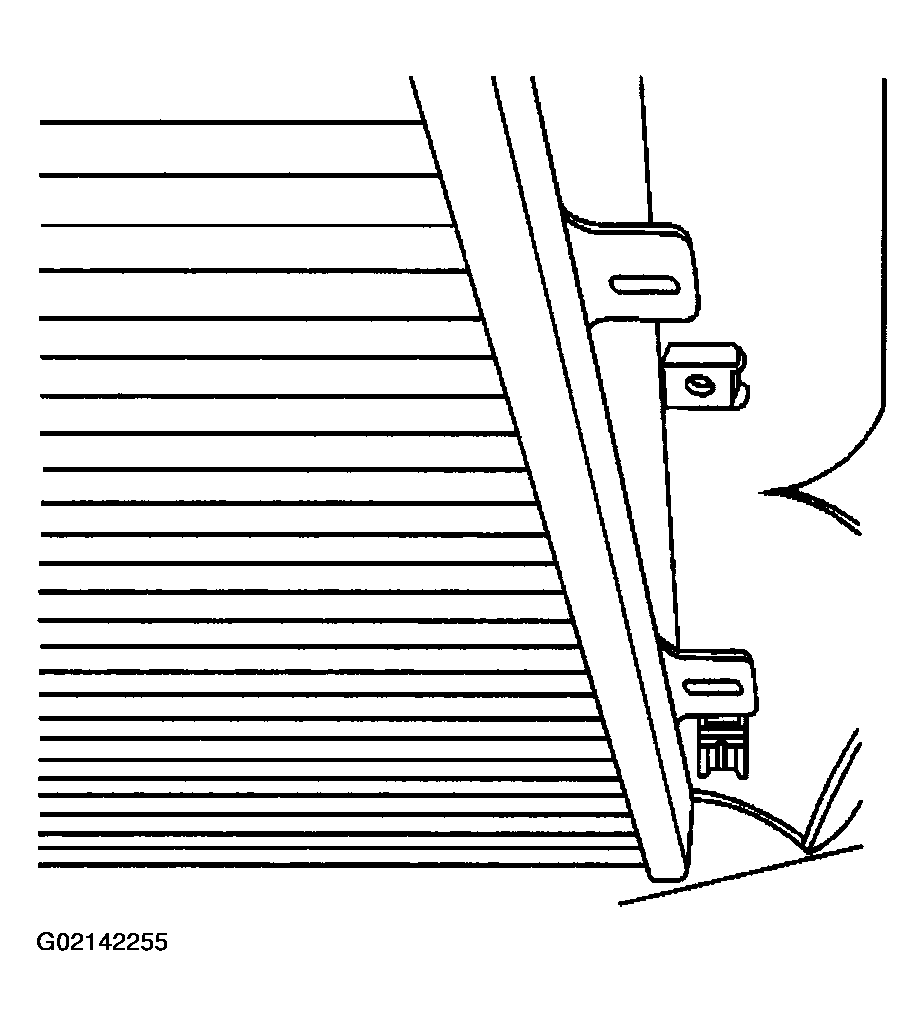

Position the condenser, aligning the lower feet to the lower mounting features located at the front of the radiator.

Fig 2: Positioning Condenser
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Important: The bolts retaining the condenser to the radiator end tanks are a special length and should be the ONLY bolts used upon reinstallation. The use of longer bolts will damage the radiator end tanks.

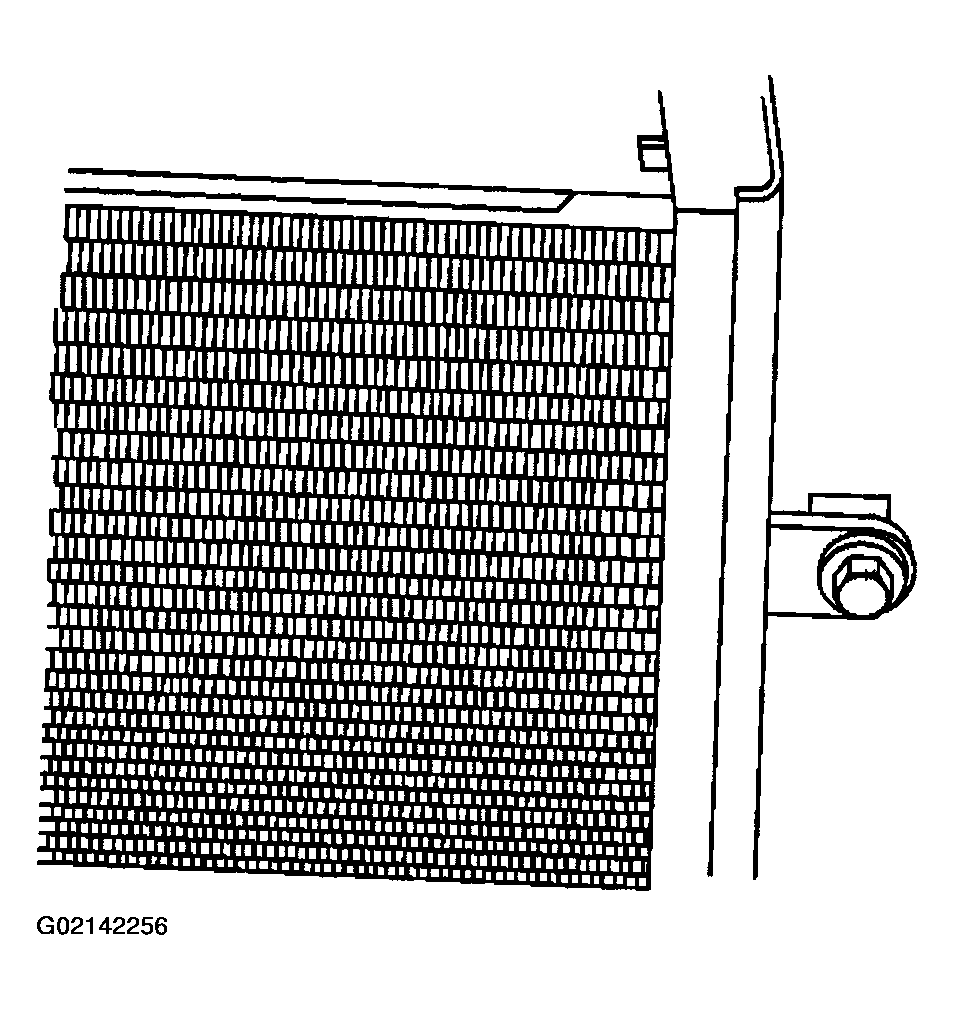

Install the condenser mounting bolts.
Tighten

Tighten the bolts to 13 N.m (115 lb in).

Fig 3: Installing Condenser Mounting Bolt
Courtesy of GENERAL MOTORS CORP.

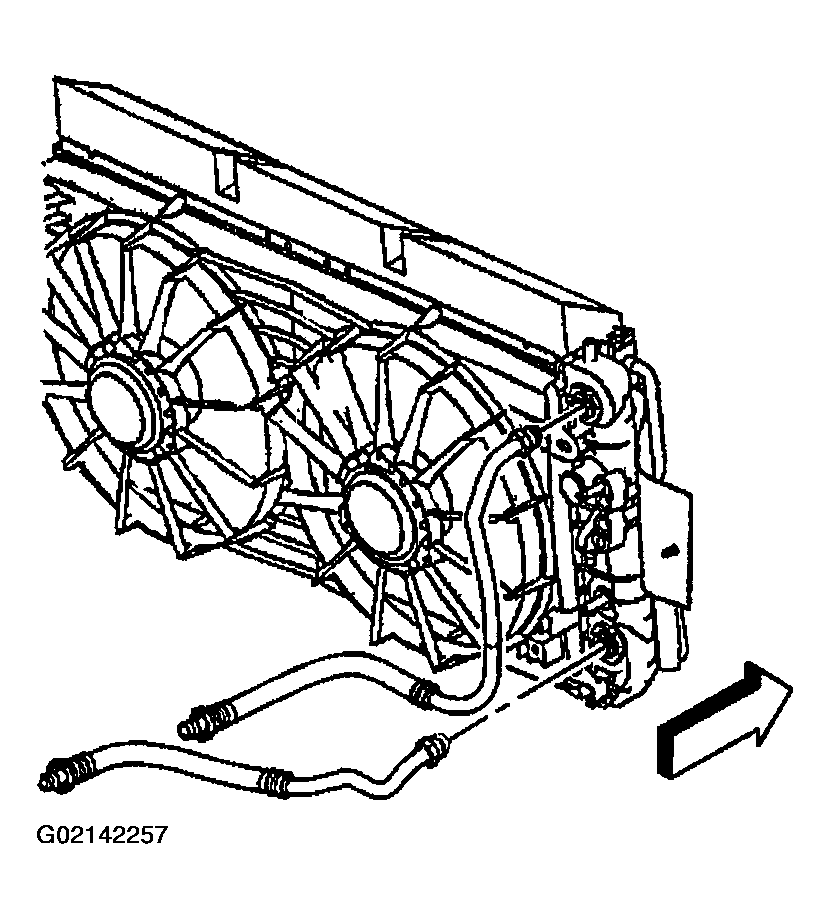

Connect the lower engine oil cooler line to the radiator.
Tighten

Tighten the line to 18 N.m (13 lb ft).

Fig 4: Connecting Lower Engine Oil Cooler Line To Radiator
Courtesy of GENERAL MOTORS CORP.

Important: Ensure the transaxle oil cooler line is positioned upwards while tightening.

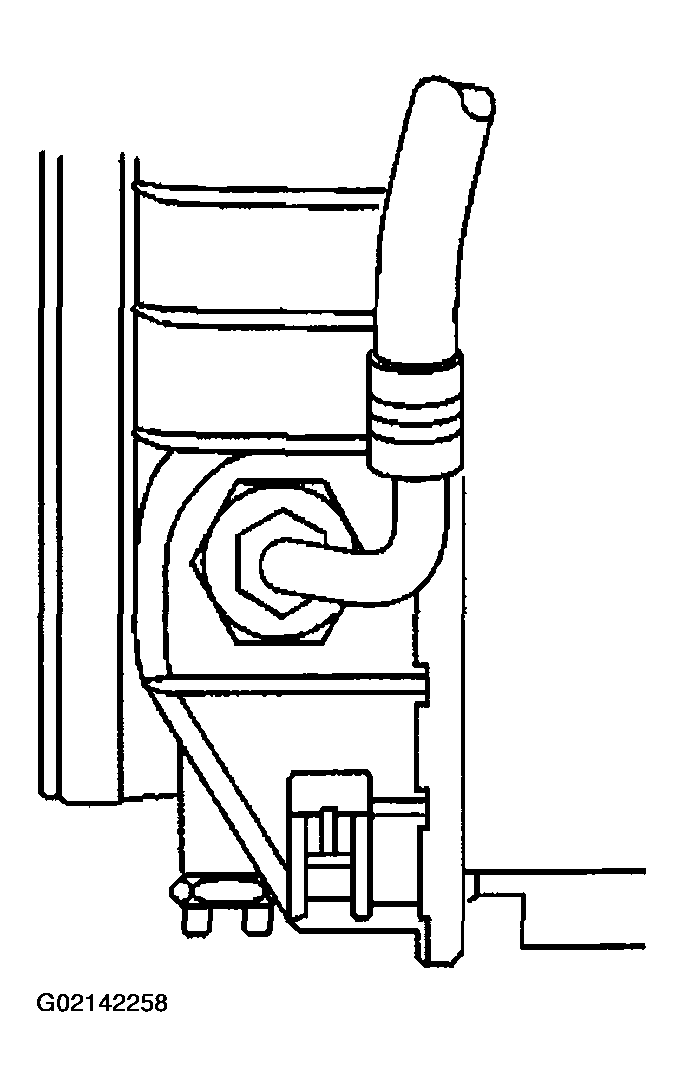

Connect the lower transaxle oil cooler line to the radiator.
Tighten

Tighten the line to 35 N.m (26 lb ft).

Fig 5: Connecting Lower Transaxle Oil Cooler Line To Radiator
Courtesy of GENERAL MOTORS CORP.

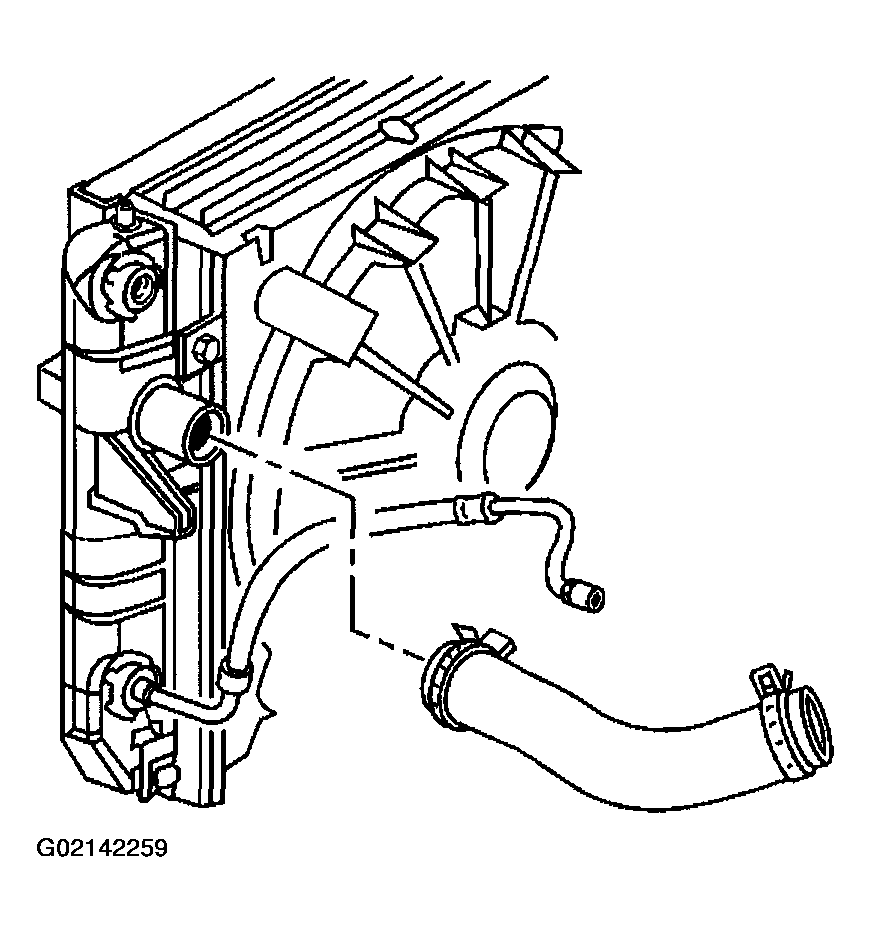

Position the J 37097-A to the clamp in order to connect the outlet radiator hose to the radiator.
Install the cooling fans. Refer to COOLING FAN REPLACEMENT - ELECTRIC .

Fig 6: Connecting Outlet Radiator Hose To Radiator
Courtesy of GENERAL MOTORS CORP.
