Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Press the hazard switch into the bezel until the locking tabs lock.

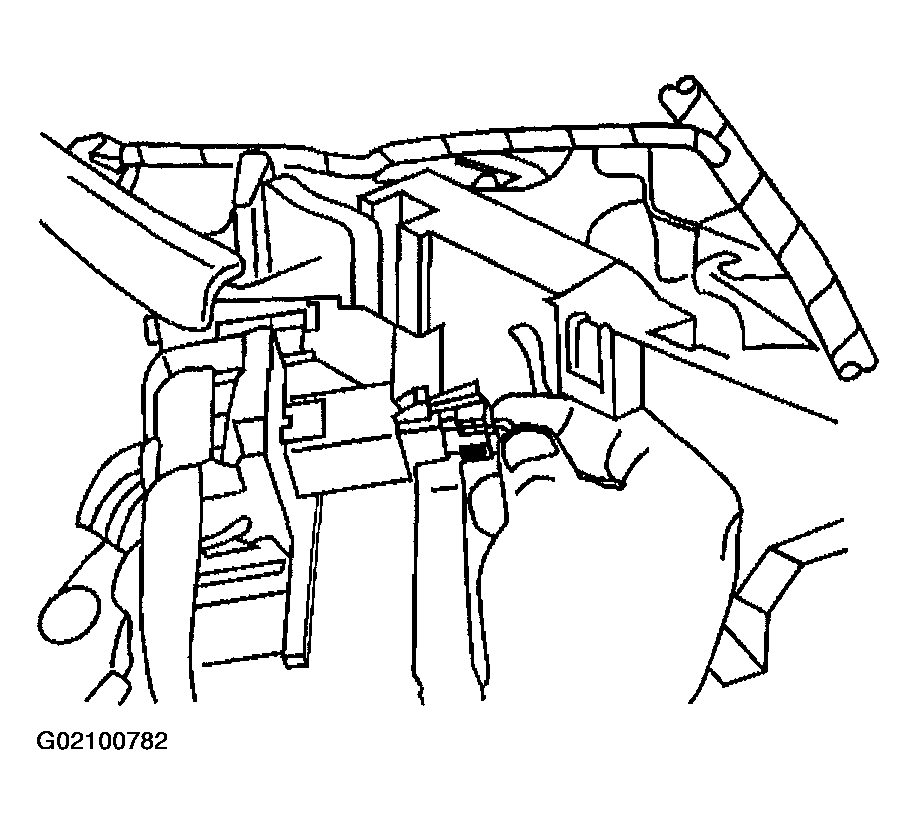

Fig 1: Pressing Hazard Switch Into Bezel
Courtesy of GENERAL MOTORS CORP.
Connect the hazard switch electrical connector.
Install the instrument panel right accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY RIGHT

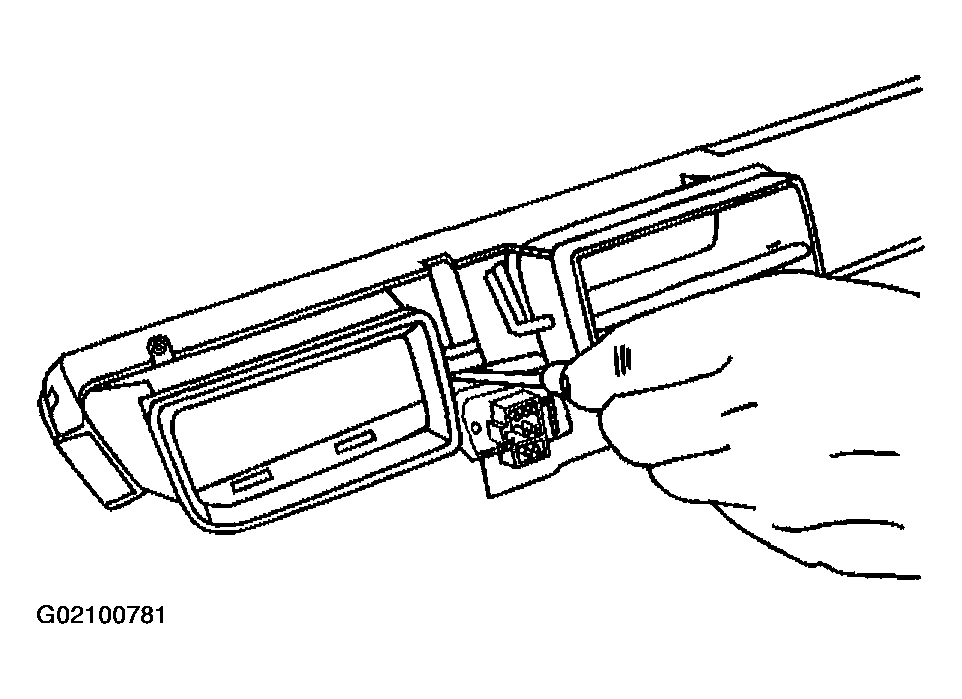

Fig 2: Connecting Hazard Switch Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
