Cooling System Component Views

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

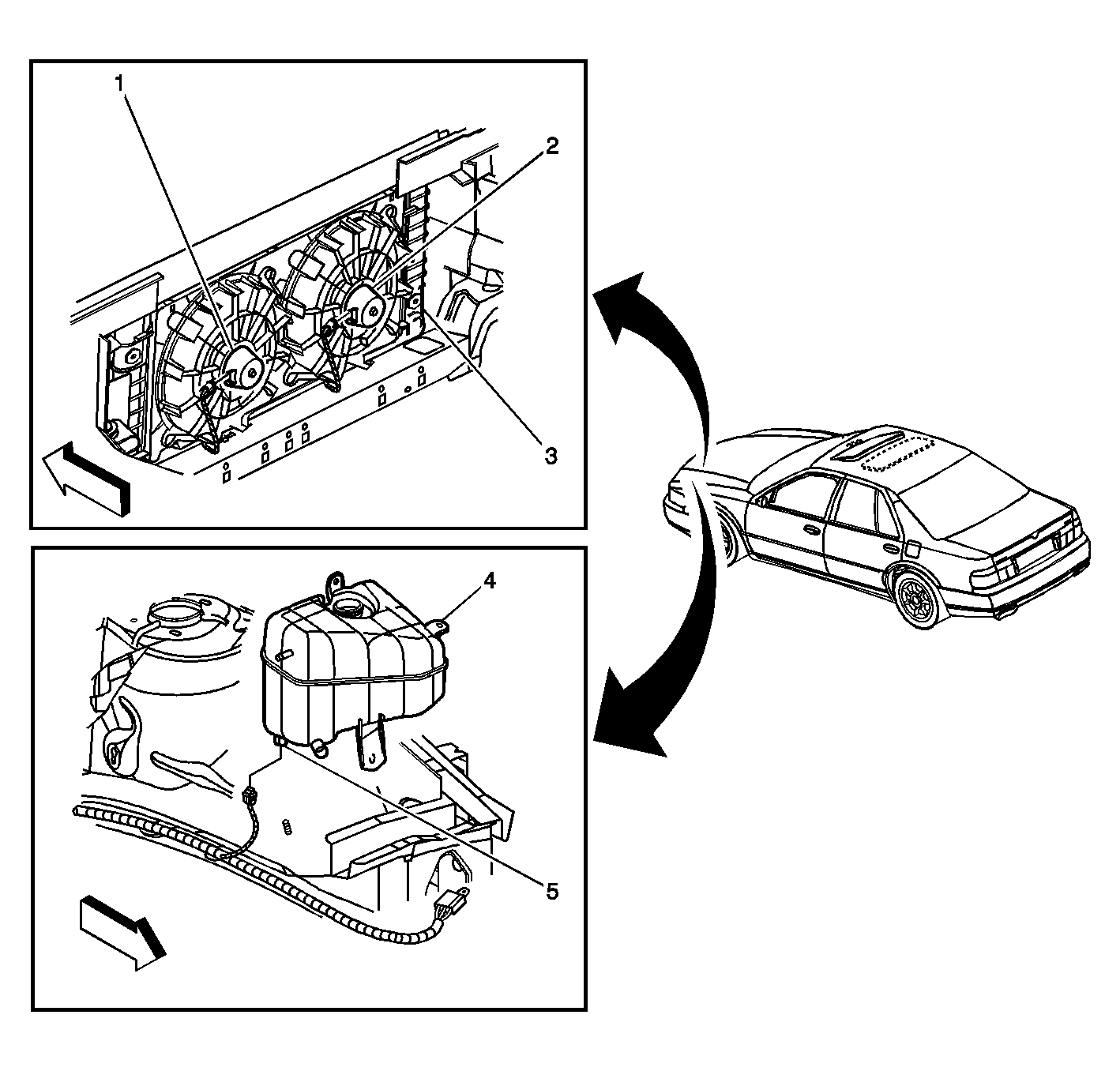

Fig 1: Cooling System Sub-System Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan - Left
2	Cooling Fan - Right
3	Radiator
4	Coolant Reservoir
5	Coolant Level Switch
