Air Temperature Sensor Connector End View - Inside
Air Temperature Sensor Connector End View - Inside

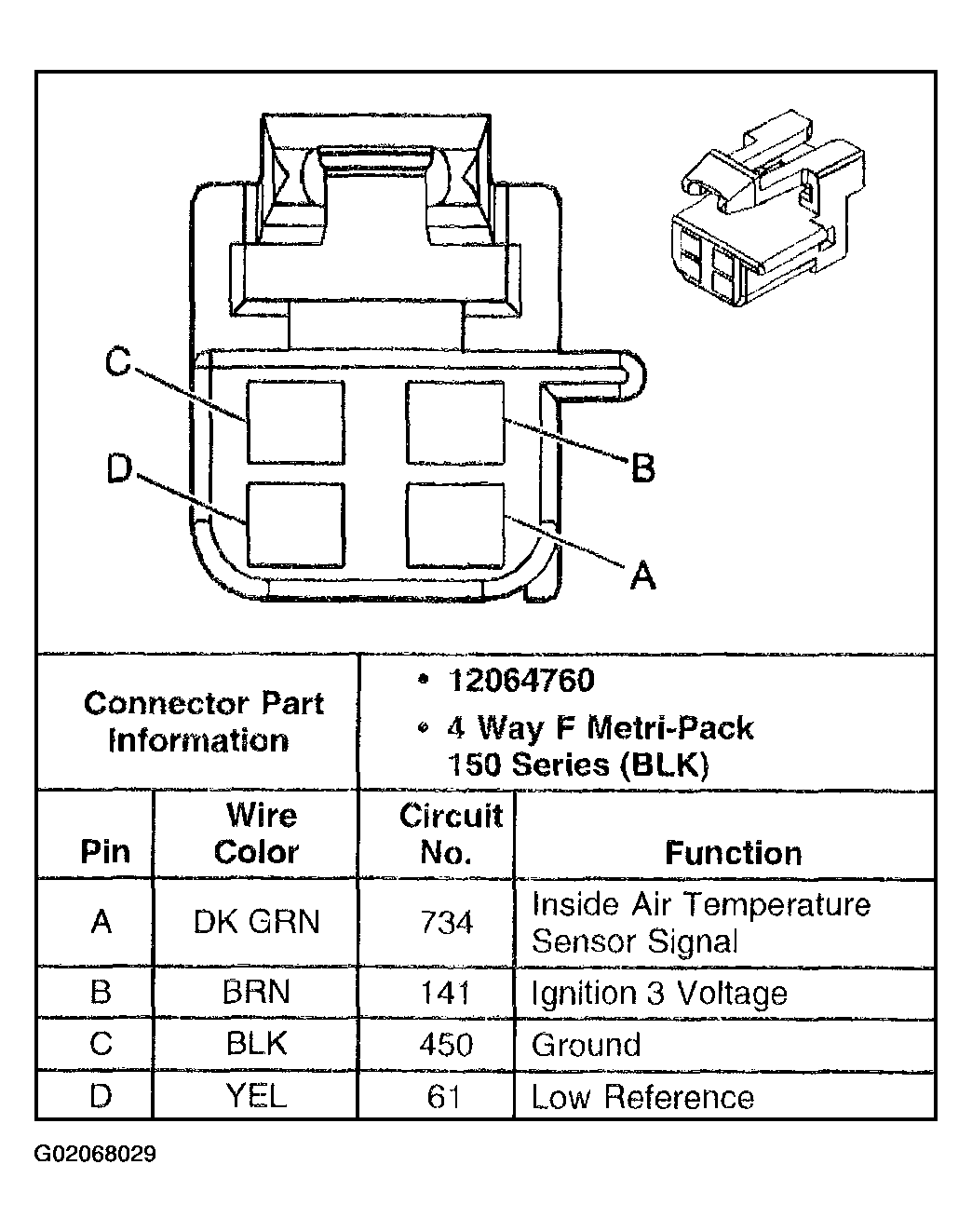

Fig 1: Air Temperature Sensor - Inside
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
