Data Link Connector (DLC) Connector End View
Data Link Connector (DLC) Connector End View

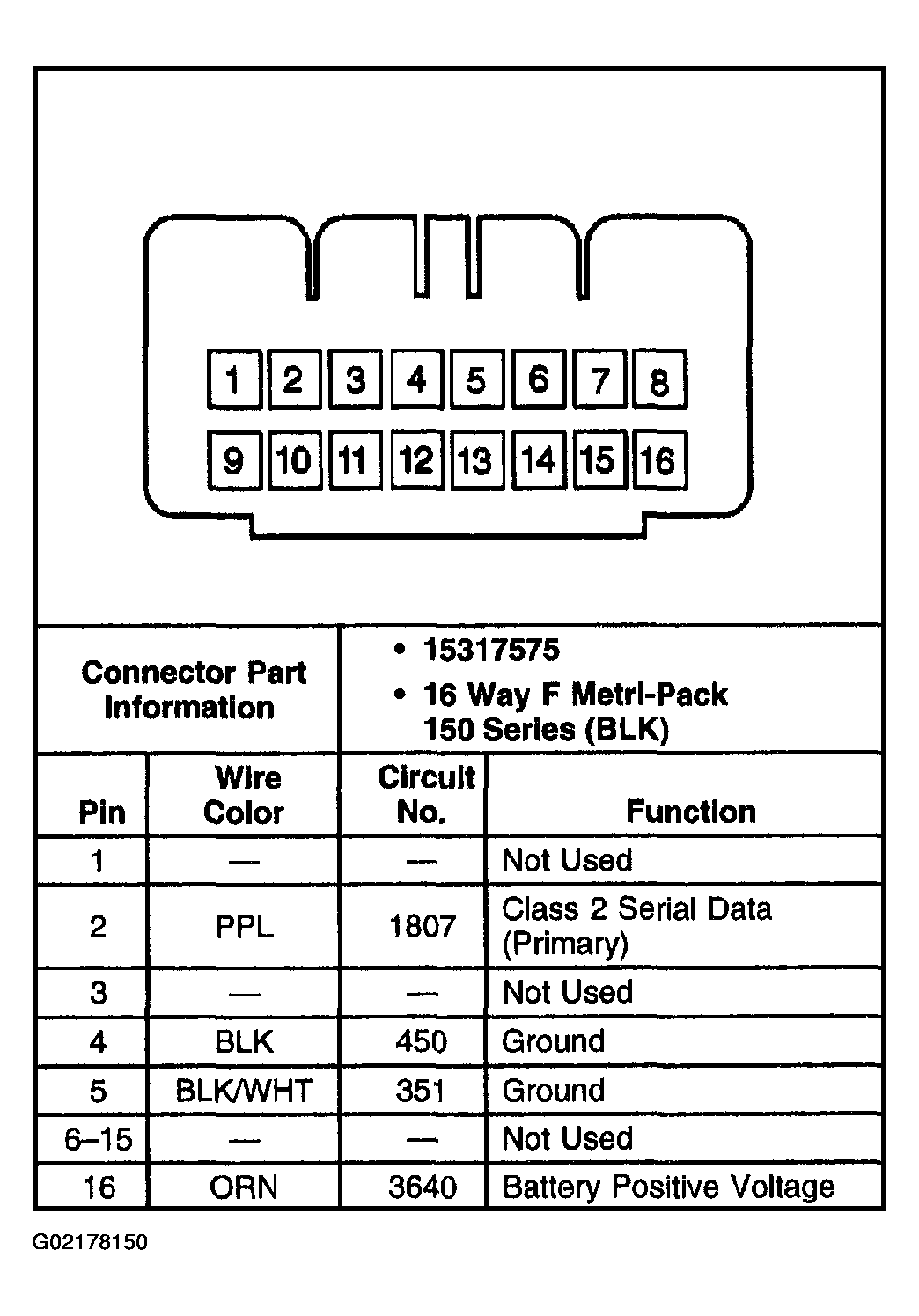

Fig 1: Data Link Connector (DLC)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
