Digital Radio Receiver Connector End View
Digital Radio Receiver Connector End View

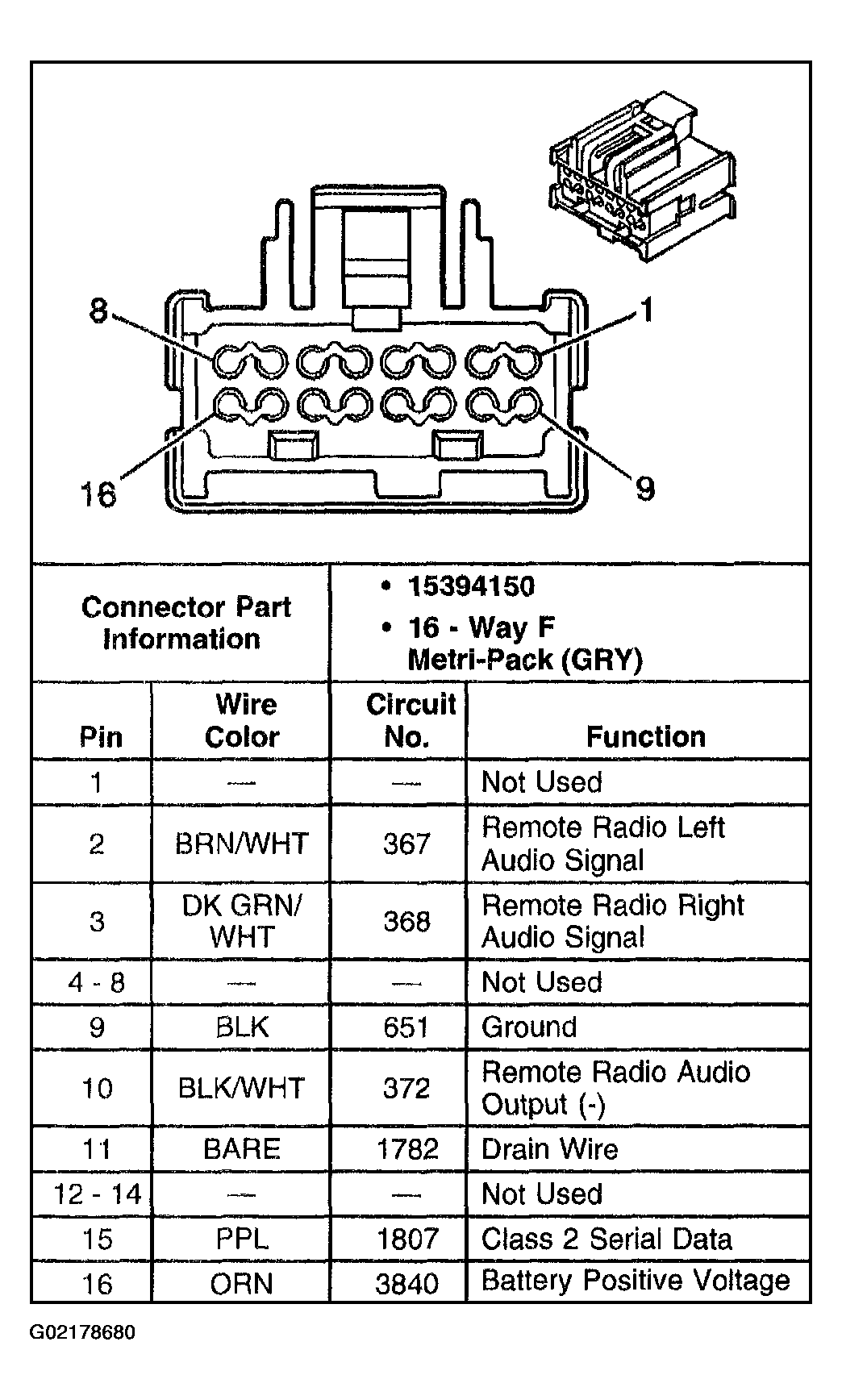

Fig 1: Digital Radio Receiver (U2K)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
