Driver Door Module (DDM) Connector End View C1

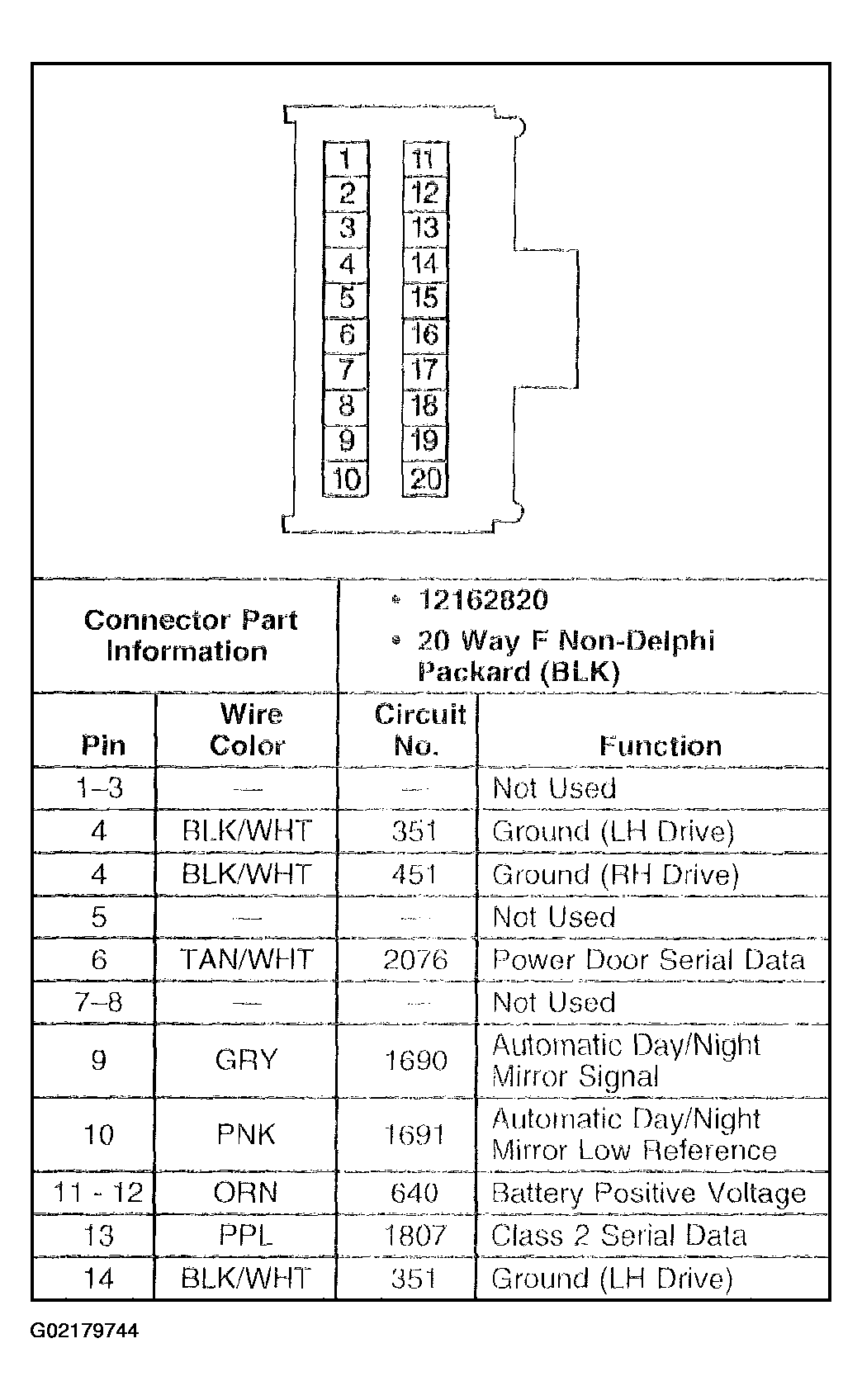

Fig 1: Driver Door Module (DDM) C1 (1 Of 2)
G02179744Courtesy of GENERAL MOTORS CORP.

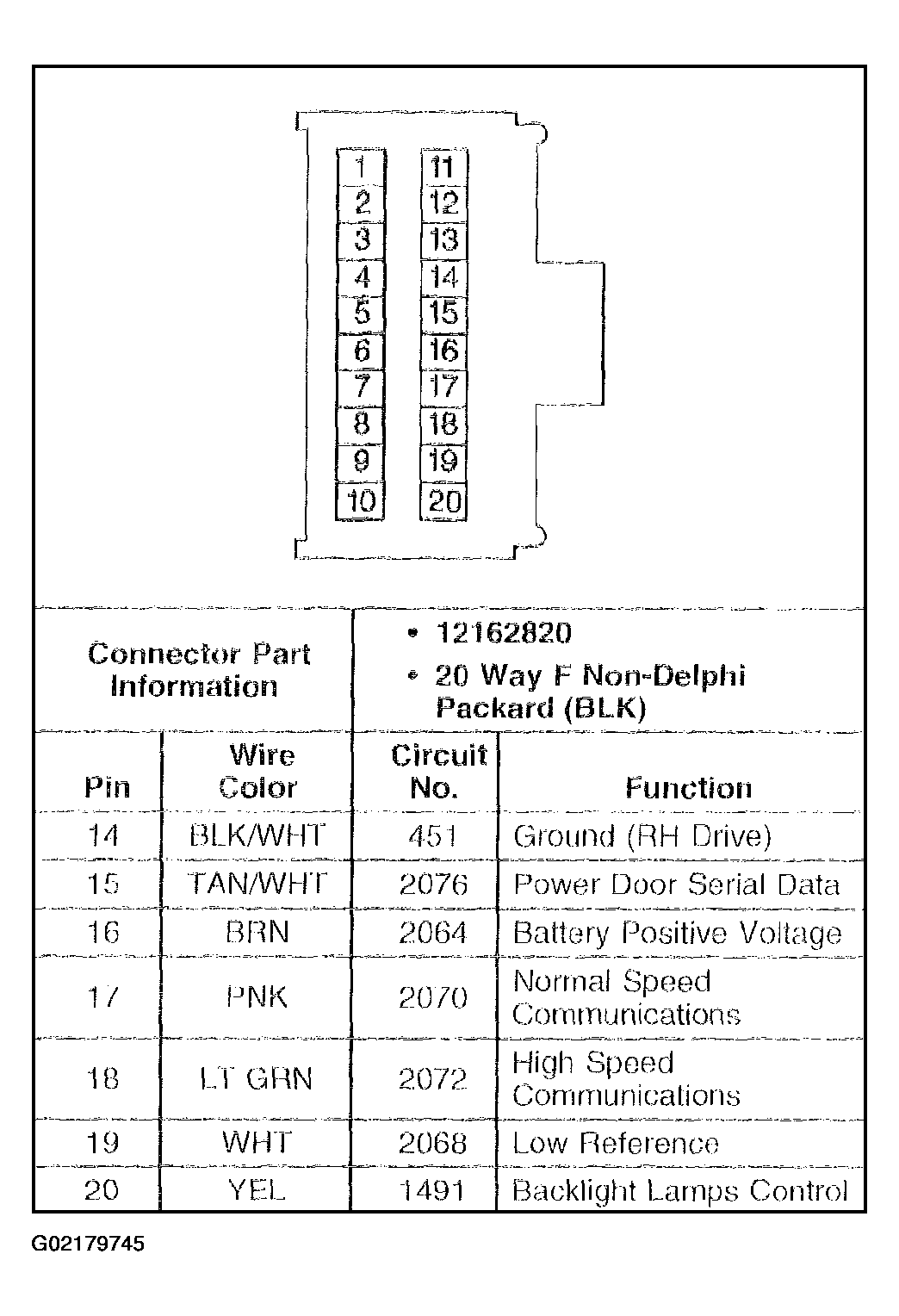

Fig 2: Driver Door Module (DDM) C1 (2 Of 2)
G02179745Courtesy of GENERAL MOTORS CORP.
