Fuel Door Lock Release Switch Connector End View
Fuel Door Lock Release Switch Connector End View

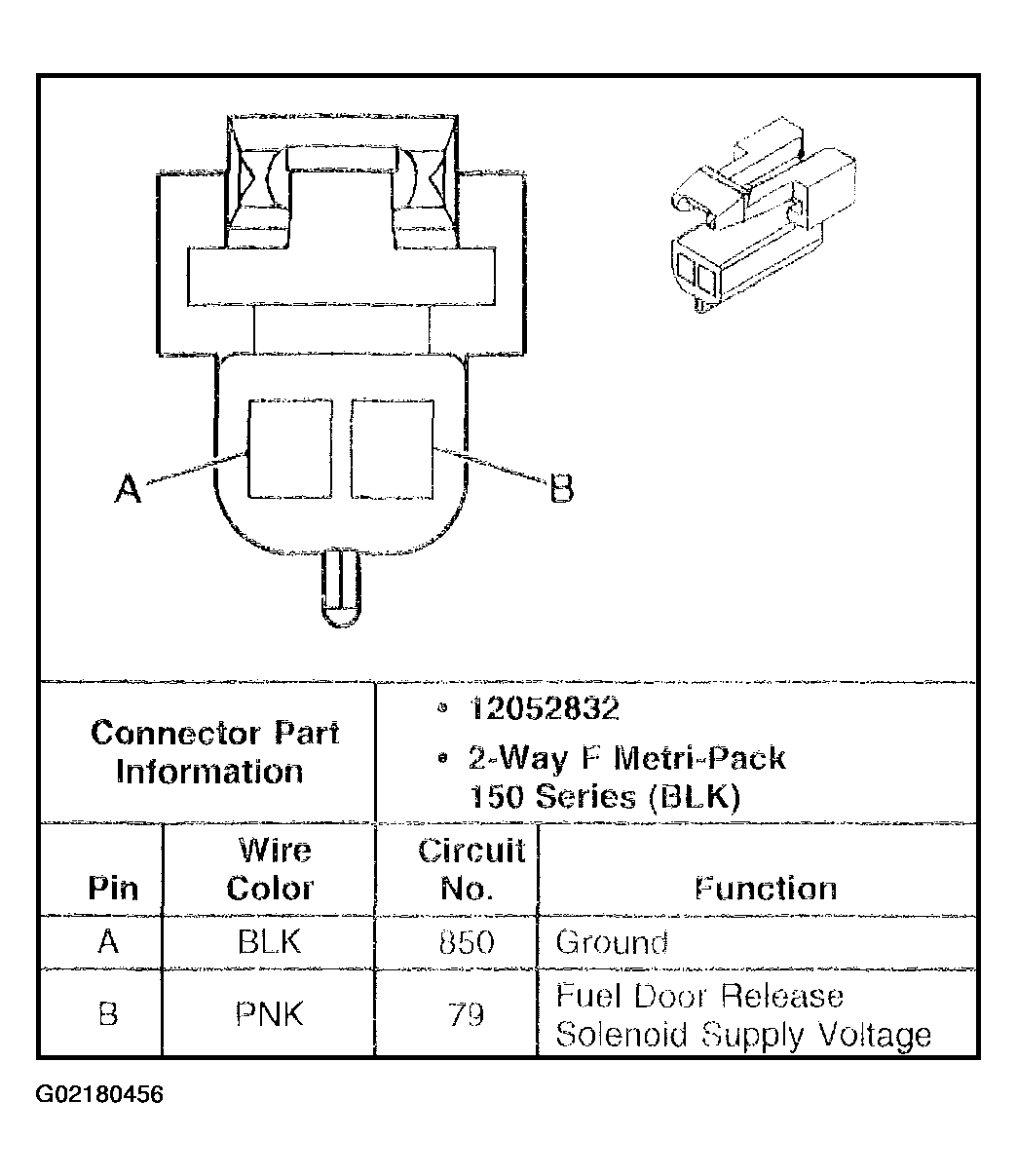

Fig 1: Fuel Door Lock Release Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
