HVAC Control Assembly Connector End View - Auxiliary
HVAC Control Assembly Connector End View - Auxiliary

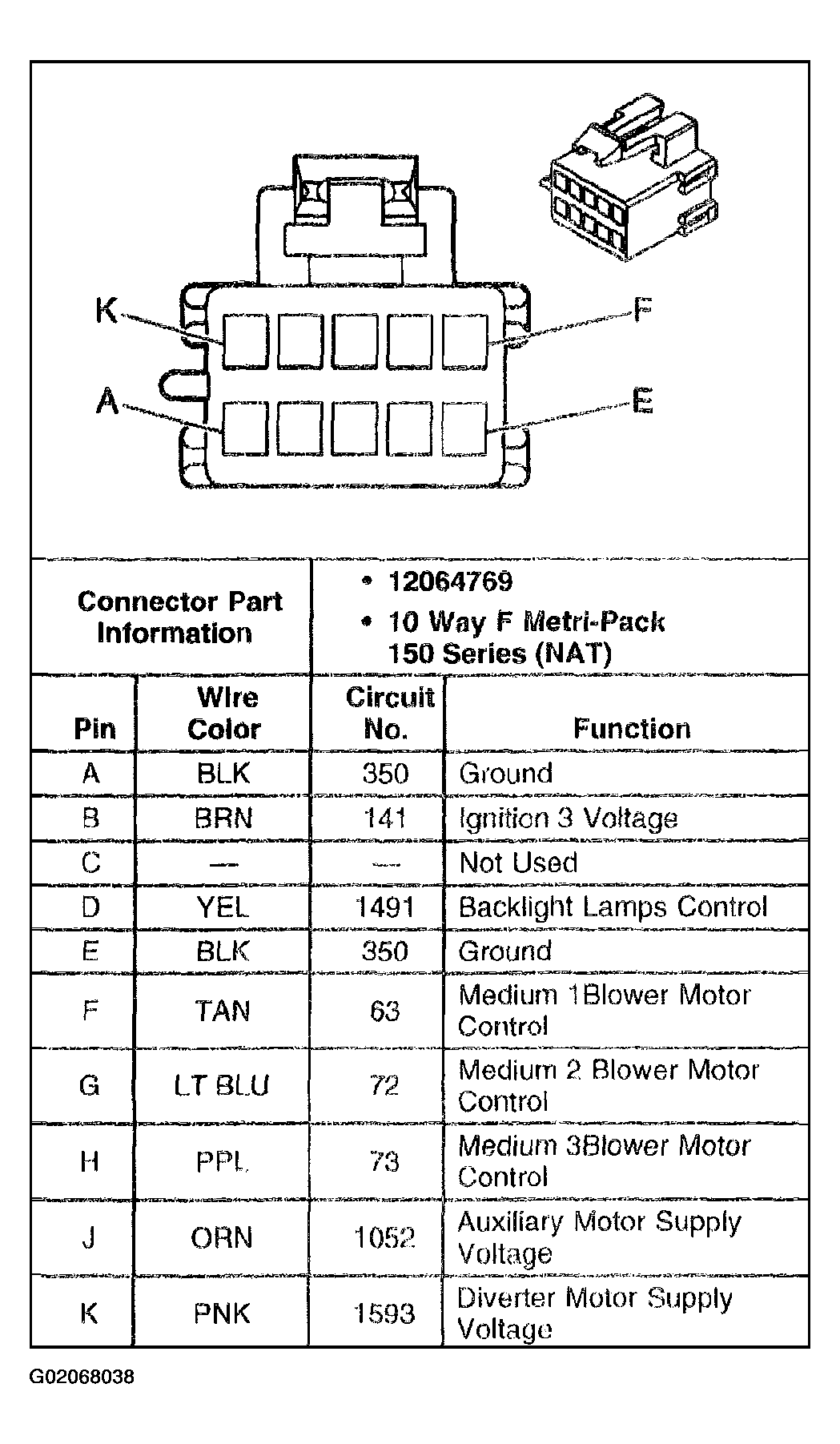

Fig 1: HVAC Control Assembly - Auxiliary
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
