Head Rest Position Sensor Connector End View - Driver

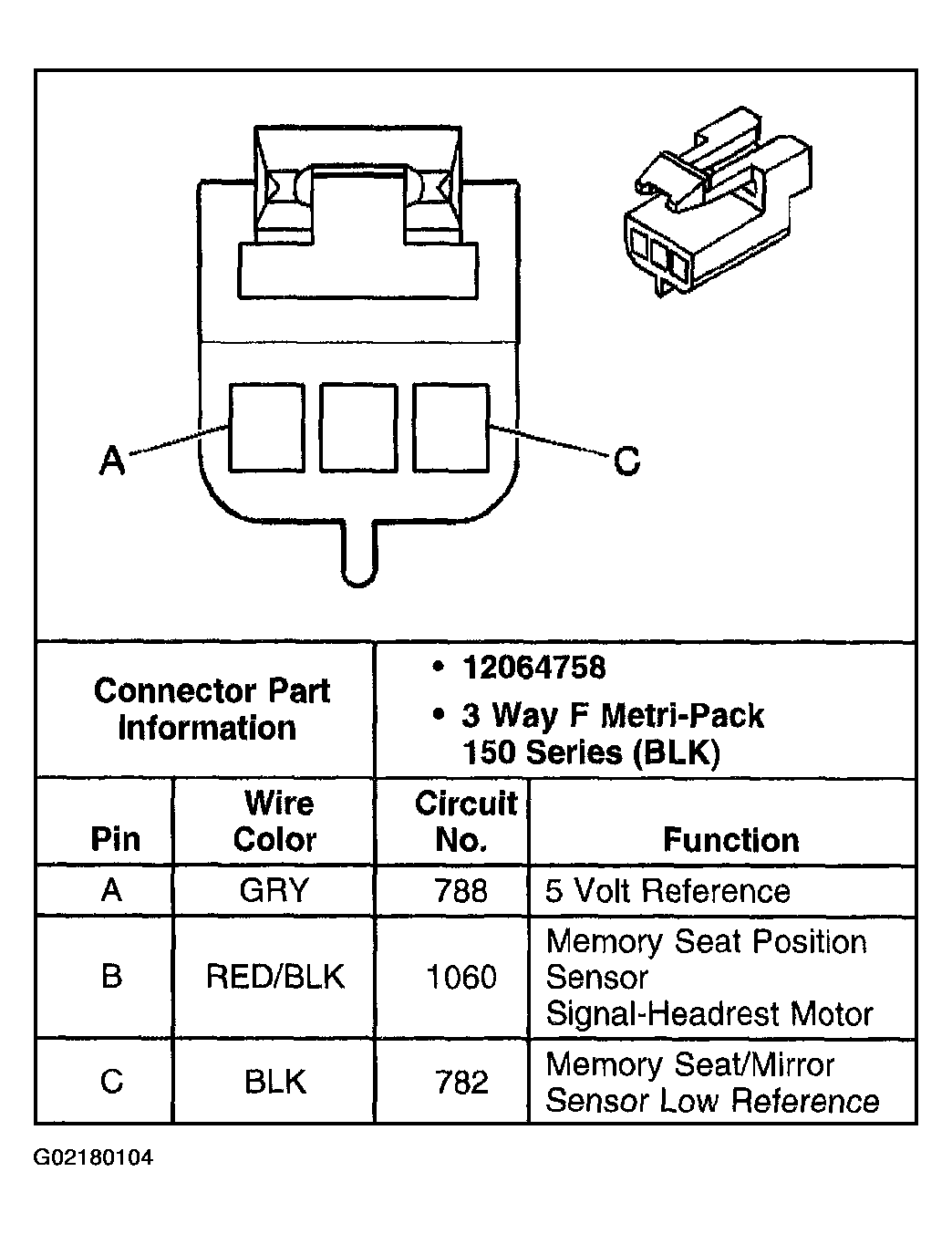

Fig 1: Head Rest Position Sensor - Driver
G02180104Courtesy of GENERAL MOTORS CORP.
